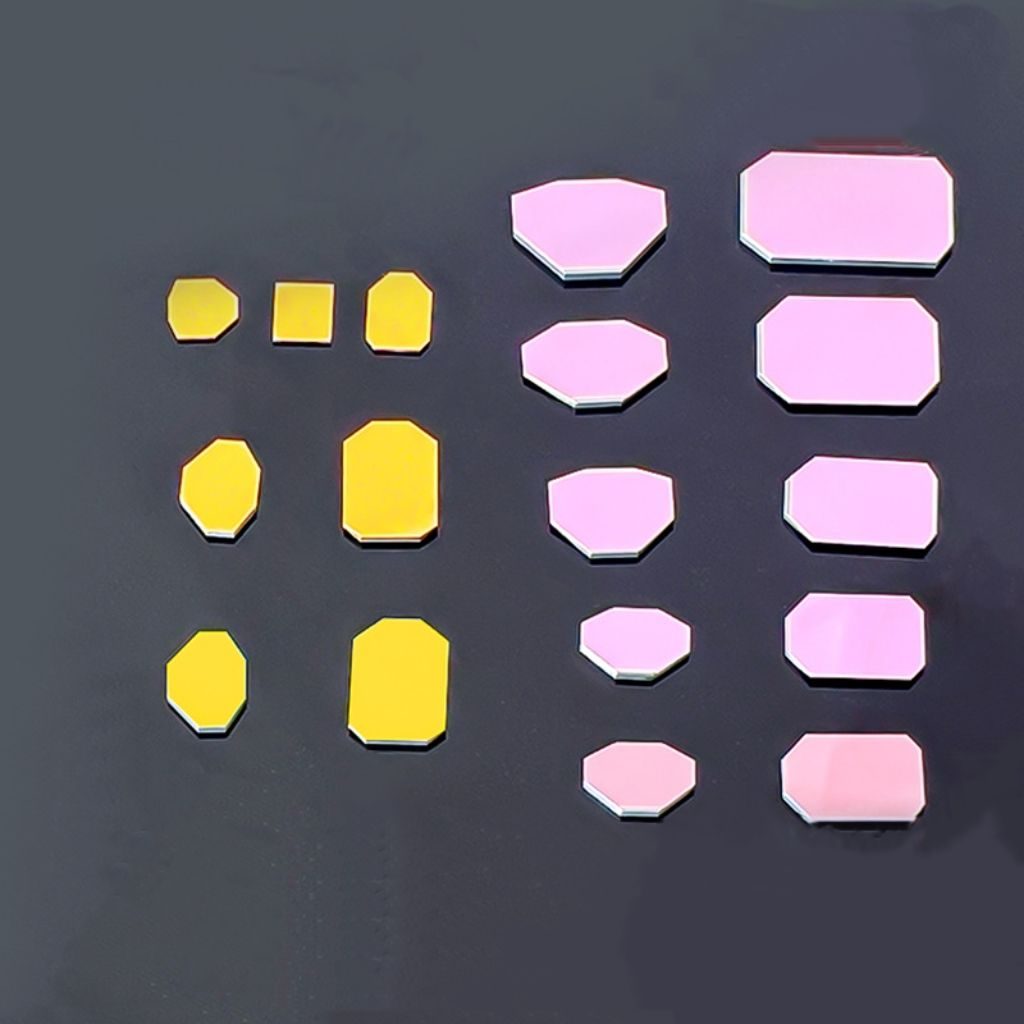

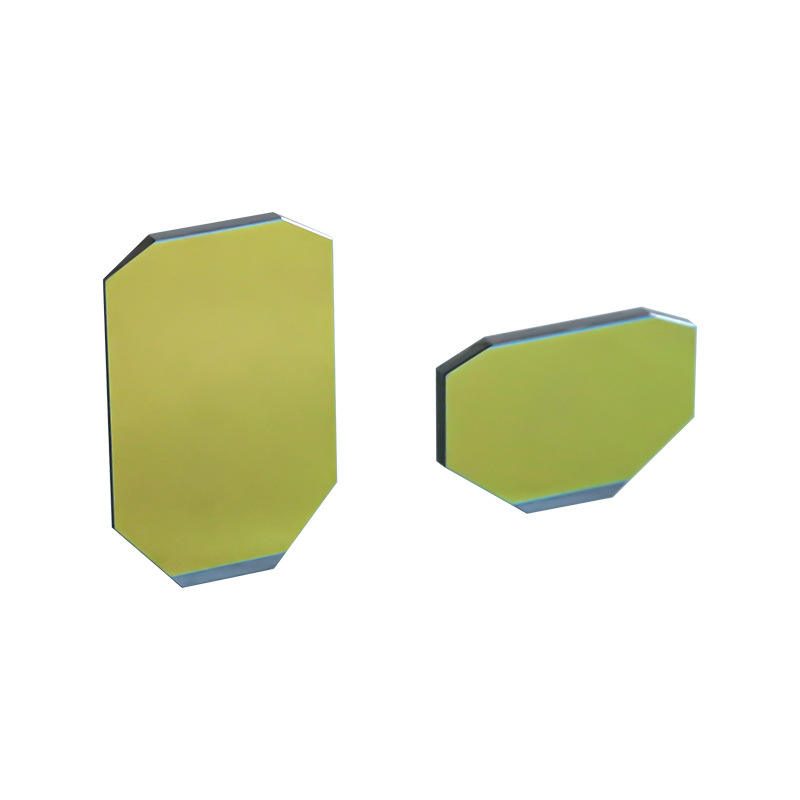

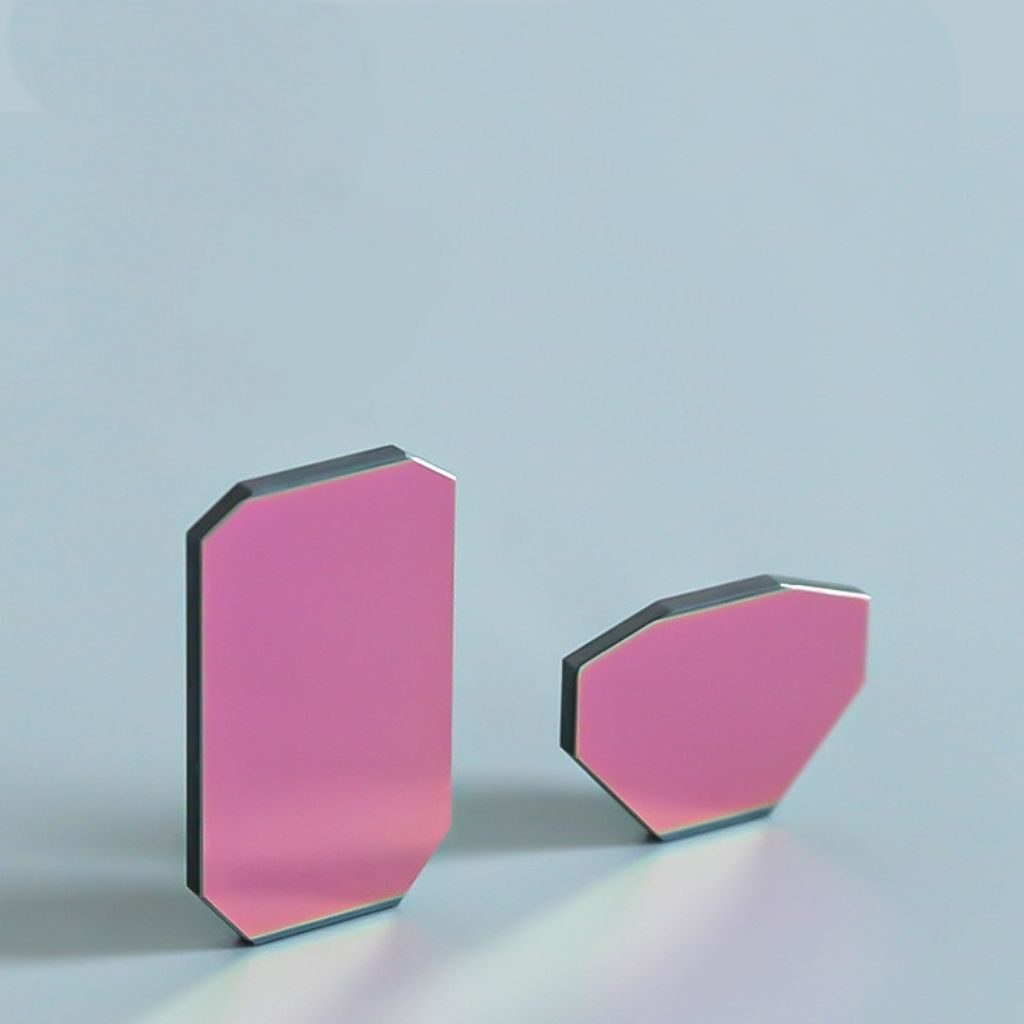

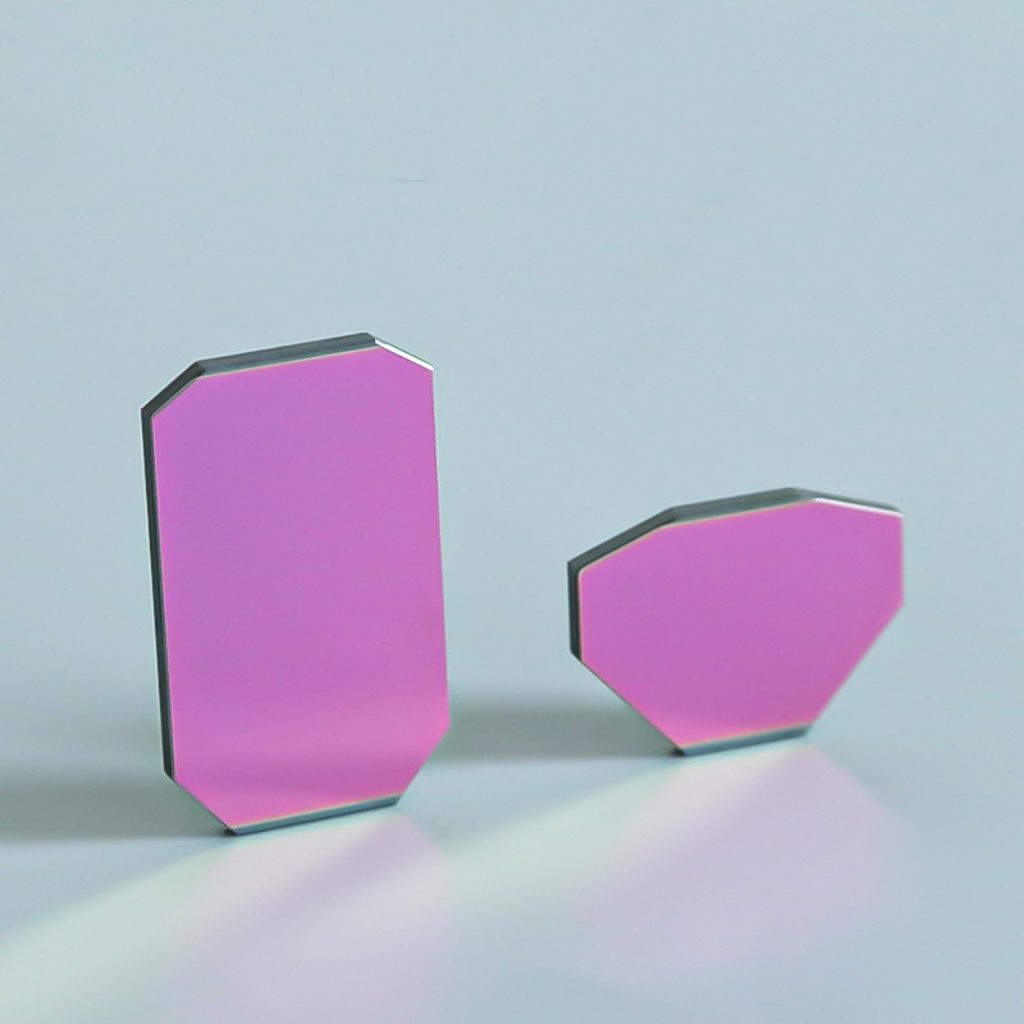

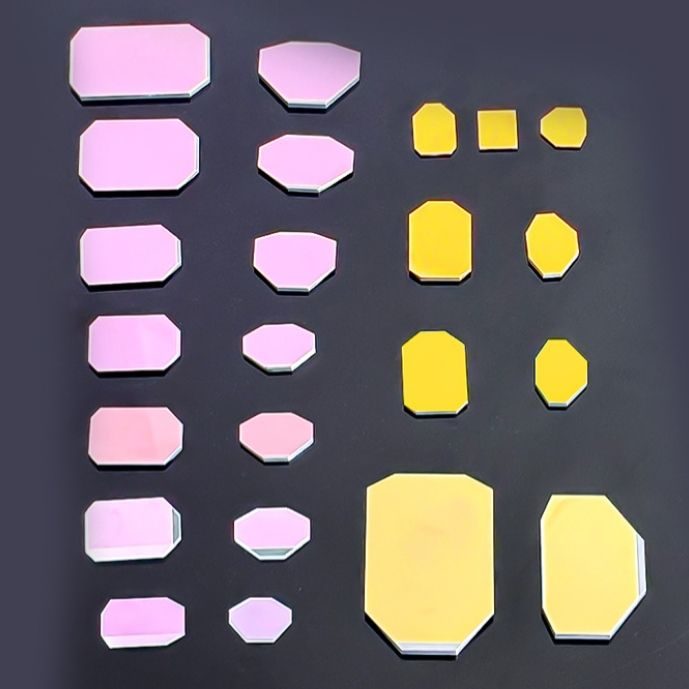

Custom Size BK7 Flat Optical Mirror

Product description

This flat mirror is designed for high-performance laser applications, featuring enhanced aluminum and dielectric HR coatings that provide ultra-high reflectivity of over 95%. Its robust construction minimizes light loss and thermal lensing, ensuring optimal performance in demanding environments. The mirror’s customizable flatness and strict tolerances of ±0.01mm make it ideal for precise optical alignment and minimal wavefront distortion, catering to the needs of R&D and procurement engineers.

Key Features

Reflectivity greater than 95%, ensuring minimal light loss for laser applications.
Customizable flatness to meet specific application requirements.
Manufactured with strict tolerances of ±0.01mm for precise optical alignment.
Enhanced aluminum coating for durability and environmental stability.
High laser damage threshold (LIDT) suitable for high-power systems.

Applications

Laser

Specification Summary

Item	Value
Material	BK7
Shape	Flat
Size	Custom
Thickness	Custom
Surface Quality	60/40
Reflectance	95%
Coating	enhanced aluminum, dielectric HR

Full Specifications

Parameter	Value
Customized Support	OEM, ODM, OBM
Warranty	1 Year
Tolerance	±0.01mm
Flatness	customizable
Coating Type	Enhanced Aluminum / Protected Silver / Gold / Dielectric
Reflectivity	>95% / >98% / >99.5%

FAQ

Can I get custom sizes?

Custom sizes are available, but specific dimensions are not listed.

What are the tolerances for this mirror?

The mirror is manufactured with dimensional and angular tolerances controlled within ±0.01mm.
