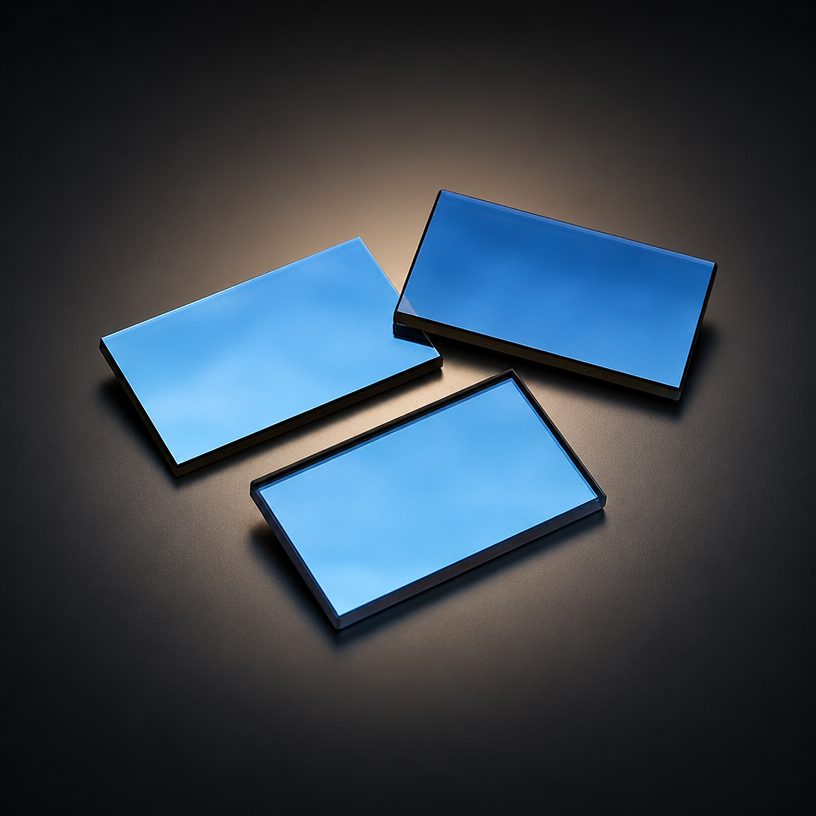

Custom Size BK7 Flat Optical Mirror

Flat reflective mirror for laser and spectroscopy applications, covering 250 nm to 2500 nm with durable coatings and customizable options.

Core attributes

Material: BK7
Shape: Flat
Size: Custom
Thickness: Custom
Coating: protected aluminum, silver, dielectric HR, front-surface
Transmission bands: SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)

Product description

This flat reflective mirror is designed for versatile applications in laser and spectroscopy systems, covering a wide spectral range from 250 nm to 2500 nm. It effectively replaces multiple wavelength-specific mirrors, reducing BOM costs. The mirror features a Protected Aluminum coating that resists oxidation and scratching, ensuring durability and reliability in demanding environments. Its precision BK7 optical glass ensures excellent wavefront quality, making it ideal for high-performance imaging systems.

Key Features

Wide spectral range: 250 nm to 2500 nm, suitable for various applications.
Protected Aluminum coating: resists oxidation and humidity for enhanced durability.
Precision BK7 glass: ensures low surface roughness and tight flatness for superior imaging.
Customizable options: available in various diameters, thicknesses, and coatings.
Lightweight design: weighs only 10g (0.35oz) for easy integration.

Applications

Laser, Spectroscopy

Specification Summary

Item	Value
Material	BK7
Shape	Flat
Size	Custom
Thickness	Custom
Coating	protected aluminum, silver, dielectric HR, front-surface
Transmission bands	SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Type	reflective mirror
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	10g(0.35oz)
Color	transparent/customize
Certification	CE,ISO9001

FAQ

Can I get custom sizes?

Yes, custom diameter, thickness, coating, and substrate options are available per drawing.

What is the minimum order quantity?

Flexible MOQ options are available, allowing for tailored procurement.
