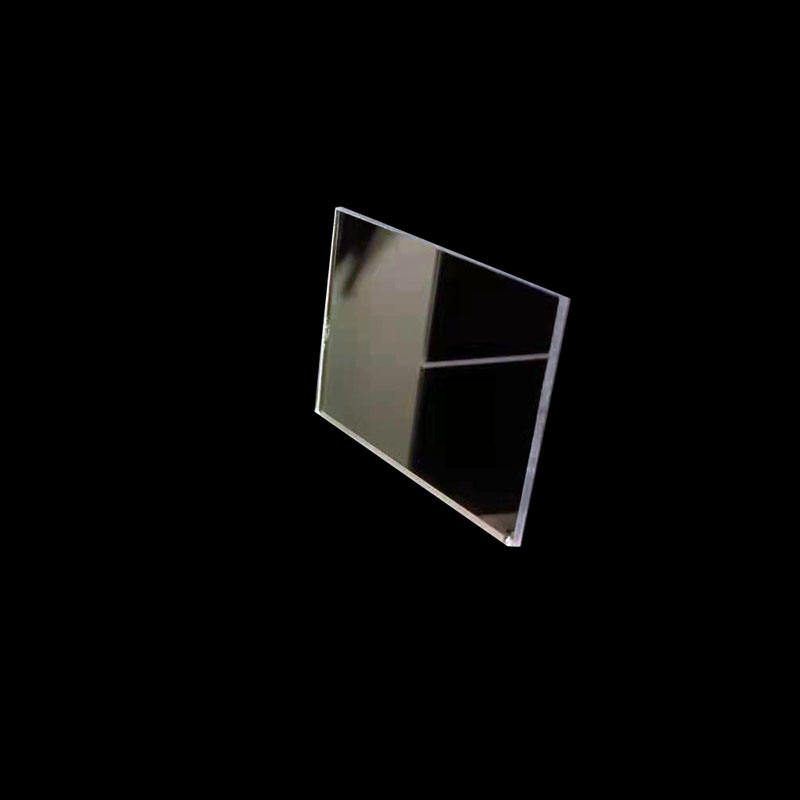

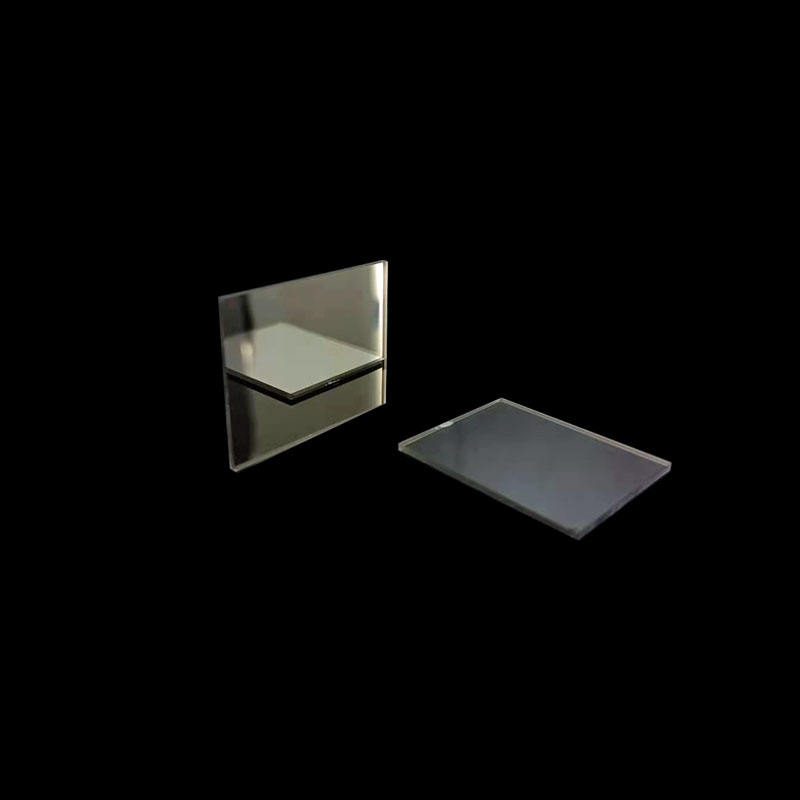

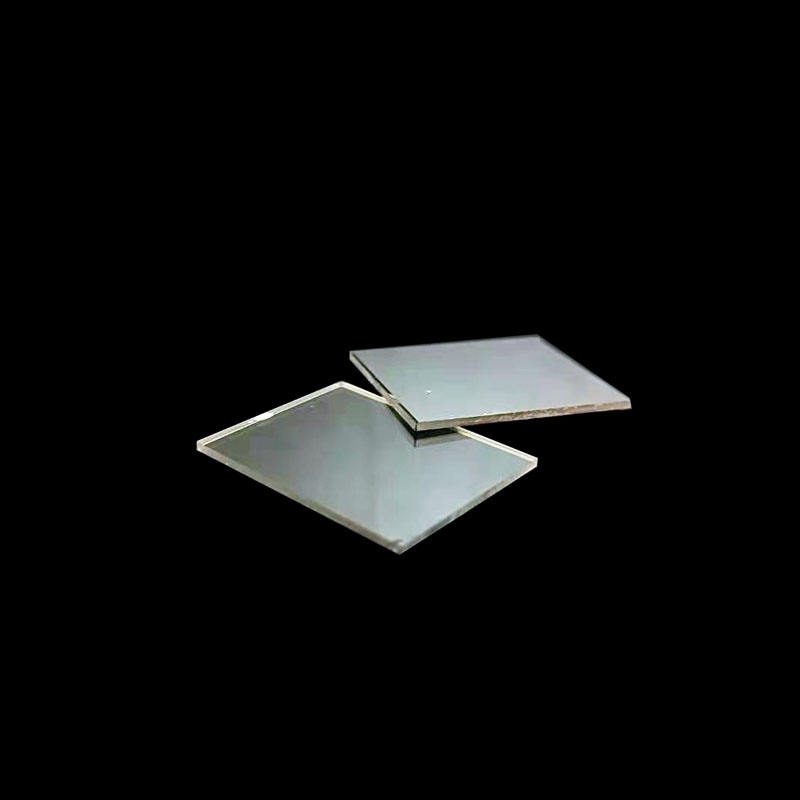

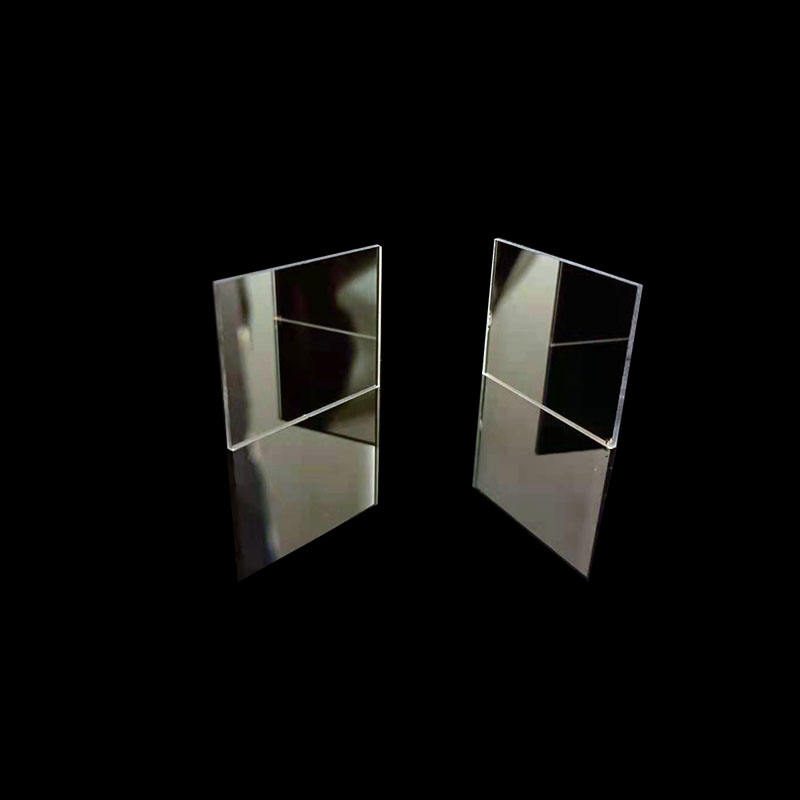

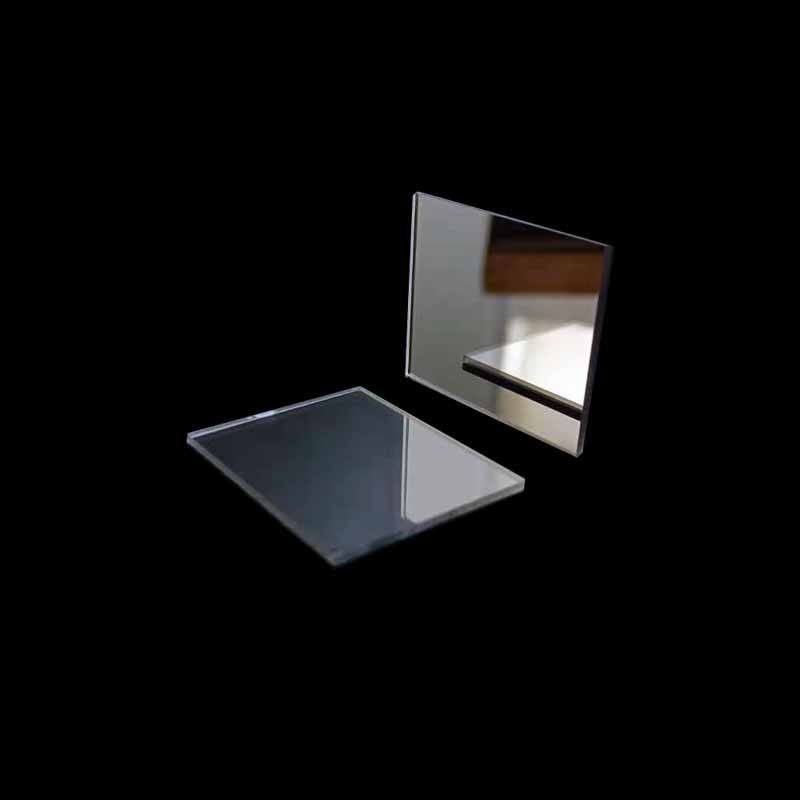

Custom Size BK7 Flat Optical Mirror
BK7 flat optical mirror for laser applications, 400-700 nm, <3 arcmin flatness, customizable options available.
Core attributes
- Material
- BK7
- Shape
- Flat
- Size
- Custom
- Thickness
- Custom
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- BK7
- Shape
- Flat
- Size
- Custom
- Thickness
- Custom
- Transmission bands
- VIS (400-700 nm)
Product description
This BK7 flat optical mirror is ideal for laser applications within the 400-700 nm wavelength range. Its construction ensures reliable performance with minimal distortion, making it suitable for precision optical systems. The mirror features a flatness specification of <3 arcmin, ensuring high wavefront quality, and a bevel of 0.2mm at a 45-degree angle for safe handling and installation.
Key Features
- Wavelength range: 400-700 nm for compatibility with various laser applications.
- Flatness specification of <3 arcmin ensures minimal wavefront distortion.
- Bevel design (0.2mm at 45 degrees) facilitates easy integration into optical setups.
- Diameter tolerance of +/-0.01mm supports precision alignment in optical systems.
- Lightweight at 0.03 kg for easy handling and installation.
Applications
Laser
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Flat |
| Size | Custom |
| Thickness | Custom |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | optical mirror |
| Customized Support | ODM, OEM, OBM |
| Weight | 0.03 |
| Diameter Tolerance | +/-0.01mm |
| Bevel | 0.2mm* 45 DEGREE |
| Wavelength | 10@633nm |
| Flatness | <3 arcmin |
FAQ
Is custom sizing available?
Custom sizes are supported through ODM, OEM, and OBM options.
What is the flatness tolerance of the mirror?
The mirror has a flatness specification of <3 arcmin.
