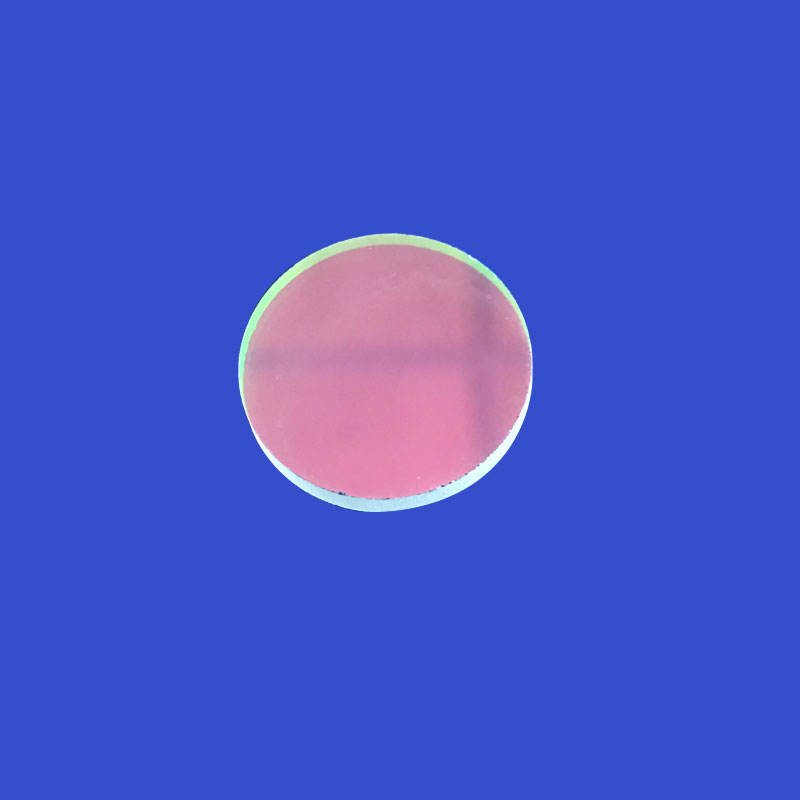

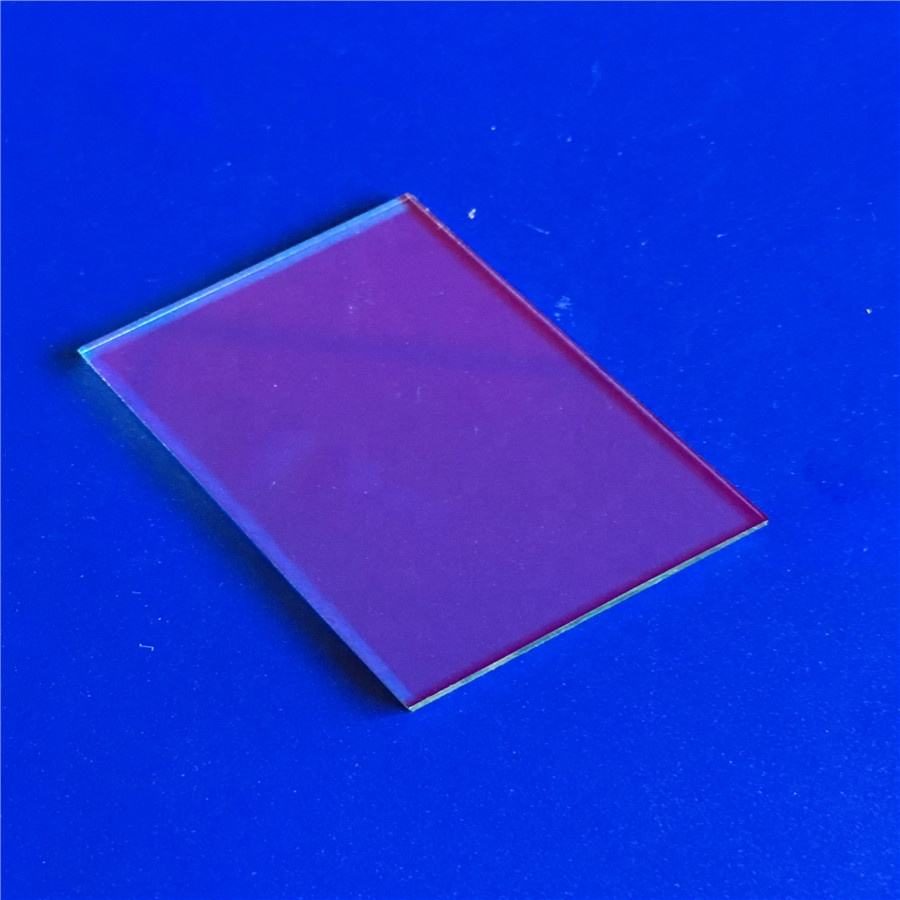

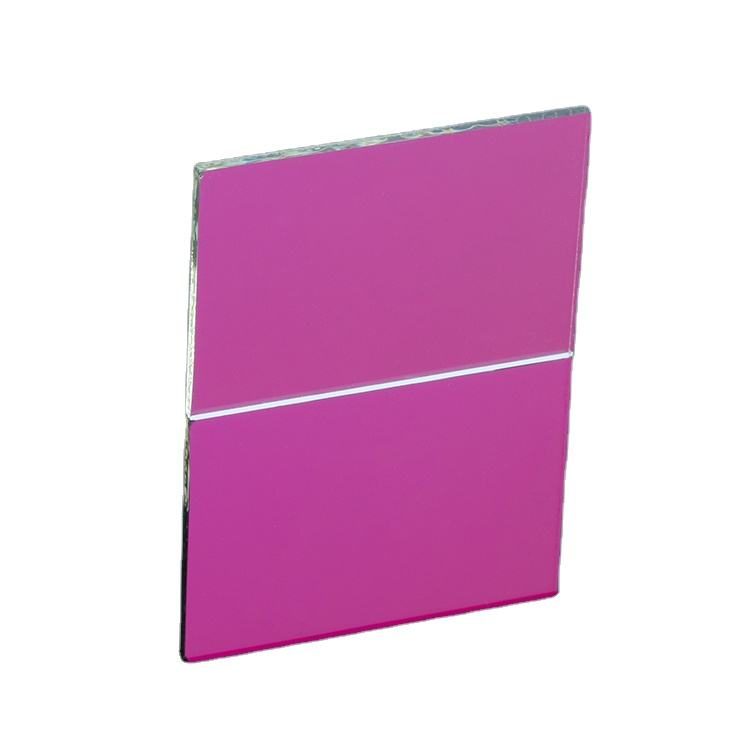

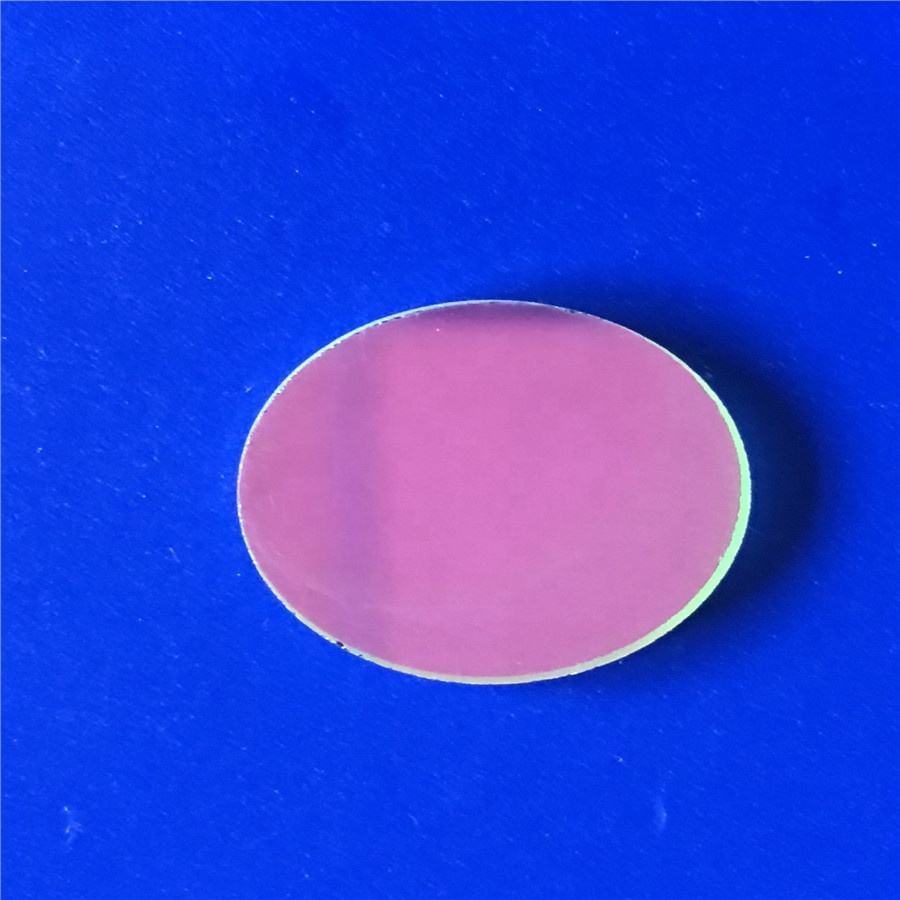

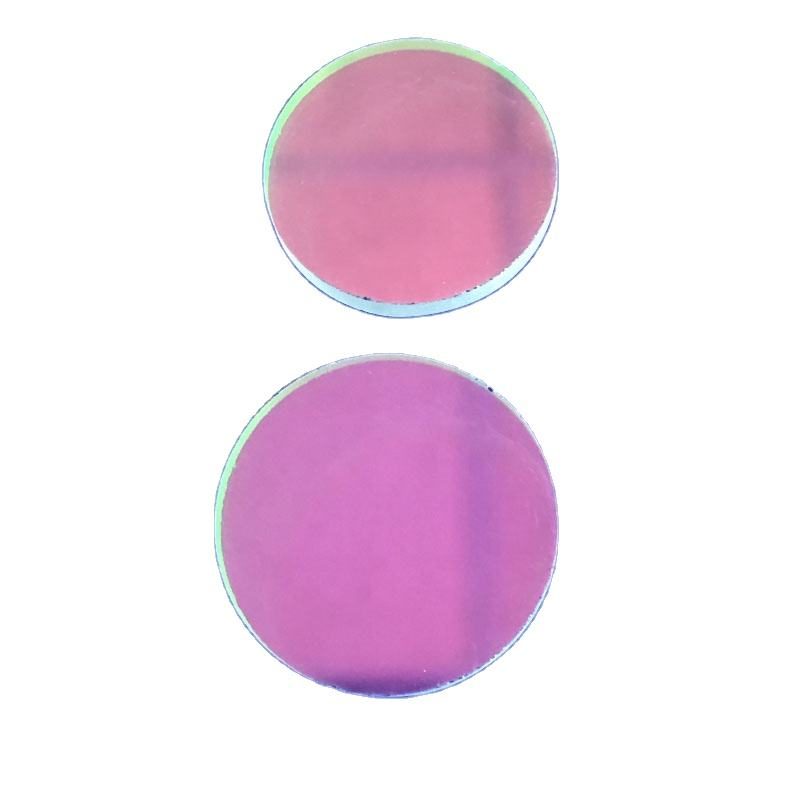

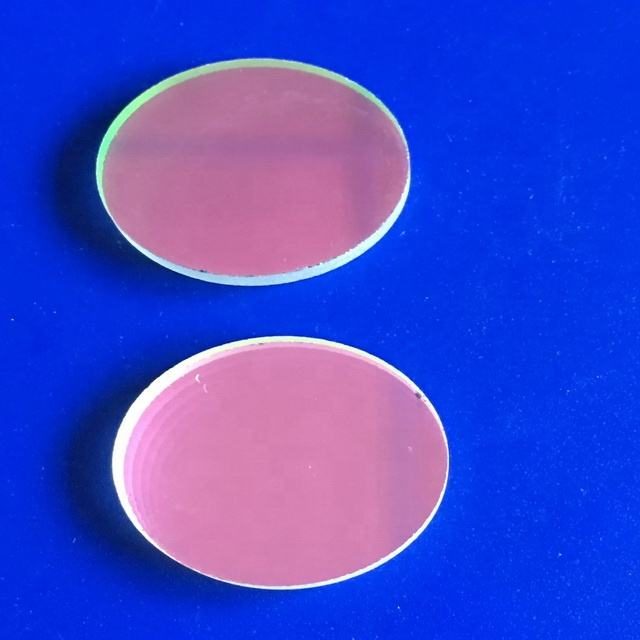

1.5 mm BK7 Optical Filter

Product description

This 470 nm bandpass filter is ideal for applications in medical and beauty IPL systems, providing high transmittance and effective wavelength selection. With a transmission rate of 98%, it ensures optimal light performance while blocking unwanted wavelengths. The filter is crafted from BK7 material, ensuring durability and reliability in various environments. Its specifications align well with standard light sources and detectors used in these fields, making it a suitable choice for R&D and procurement engineers.

Key Features

High transmittance of 98% ensures excellent light performance.
Customizable options available for OEM and ODM projects.
Surface quality rated at 10/5 for optimal clarity and performance.
Compatible with standard applications in medical and beauty IPL.
Available sizes of 1.5 mm and 10.0 mm to fit various setups.

Applications

Medical, Beauty Ipl

Specification Summary

Item	Value
Material	BK7
Size	1.5 mm
Thickness	Custom
Surface Quality	10/5
Transmittance	98%
Filter Type	bandpass
Cwl	470nm
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Transmittance	98%; 99.8%
Customized Support	OEM, ODM
Warranty	3 Years
Transmission	more than 90%
Fwhm	10nm-200nm

FAQ

Can I get custom sizes for this filter?

Yes, customizable options are available for OEM and ODM projects.

What is the surface quality of the filter?

The surface quality is rated at 10/5, ensuring optimal clarity and performance.
