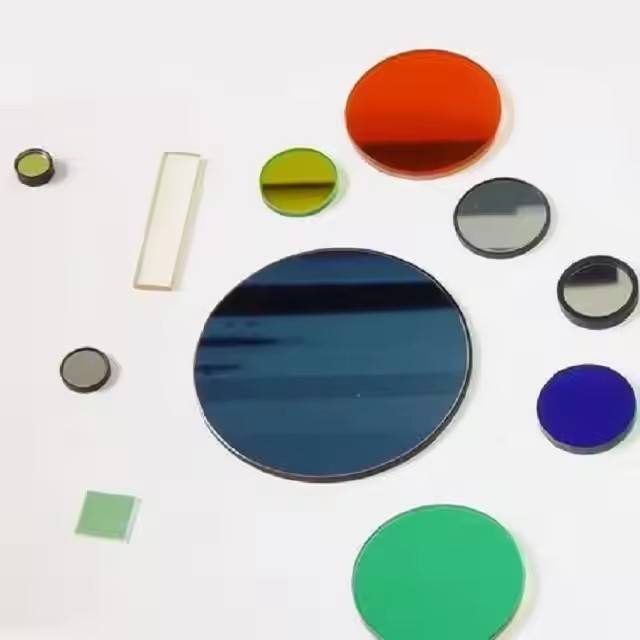

1x0.5 mm BK7 Optical Filter
Explore our 375 nm bandpass filter with 90% transmittance, customizable sizes, and OEM support for diverse applications.
Core attributes
- Material
- BK7
- Size
- 1 mm
- Thickness
- 0.5 mm
- Surface Quality
- 60/40
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 375nm
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- BK7
- Size
- 1 mm
- Thickness
- 0.5 mm
- Surface Quality
- 60/40
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 375nm
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
This bandpass filter is designed for applications requiring high transmittance and precise spectral fit. With a center wavelength of 375 nm and a broad operational range from 400 to 700 nm, it effectively isolates desired wavelengths while blocking unwanted light. Ideal for fluorescence microscopy and other optical applications, it ensures reliable performance in various environments.
Key Features
- High transmittance of 90%, ensuring optimal light throughput.
- Custom sizes available from 1.0 mm to 200.0 mm, accommodating diverse applications.
- Thickness options range from 0.5 mm to 10.0 mm, allowing for tailored optical performance.
- Surface quality of 60/40, providing good clarity and minimal distortion.
- OEM support for customized solutions, enhancing compatibility with specific systems.
Available Sizes
| Size x Thickness (mm) |
|---|
| 100.5 x 5.2 |
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Size | 1 mm |
| Thickness | 0.5 mm |
| Surface Quality | 60/40 |
| Transmittance | 90% |
| Filter Type | bandpass |
| Cwl | 375nm |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; customized; >90% |
| Customized Support | OEM |
| Warranty | 2 Years |
FAQ
What are the available custom sizes?
Custom sizes range from 1.0 mm to 200.0 mm.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified.
