1 / 6Optical Filters

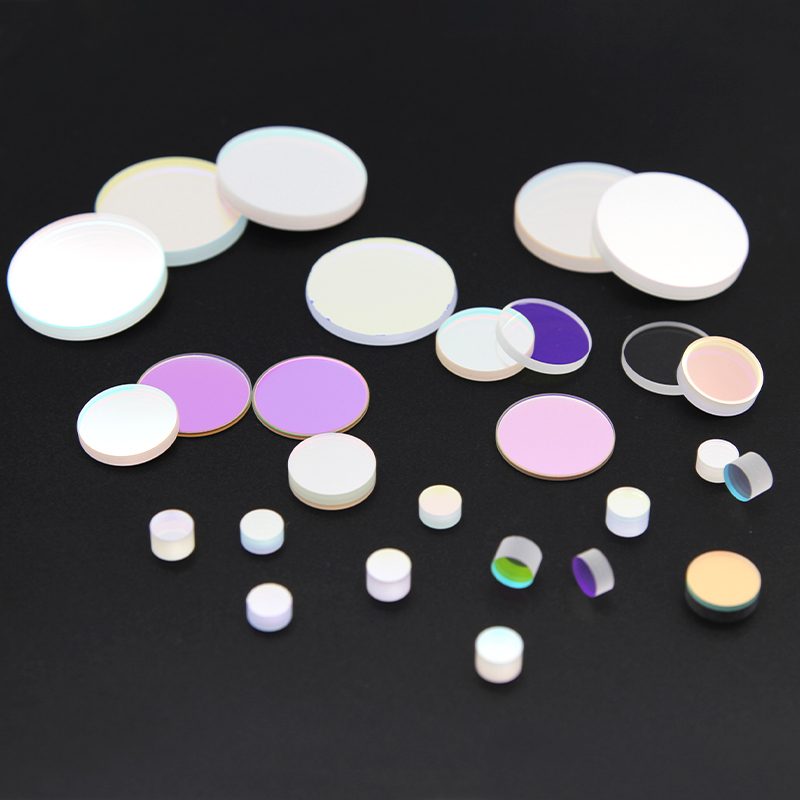

8 mm BK7 Optical Filter
High transmittance bandpass filter for fluorescence applications, available in various sizes with durable hard coating.
Core attributes
- Material
- BK7
- Size
- 8 mm
- Thickness
- Custom
- Transmittance
- 90%
- Filter Type
- bandpass
- Coating
- hard-coat, iad-pvd
- MOQ
- 1 Piece
Product facts
Key attributes
- Material
- BK7
- Size
- 8 mm
- Thickness
- Custom
- Transmittance
- 90%
- Filter Type
- bandpass
- Coating
- hard-coat, iad-pvd
- MOQ
- 1 Piece
Product description
This bandpass filter is specifically designed for fluorescence applications, providing high transmittance of over 90% to ensure optimal light transmission. With a blocking depth of OD6 from 200 to 900 nm, it effectively isolates the desired wavelengths for accurate measurements. The filter is made from BK7 glass and features a durable IAD hard coating, making it resistant to scratches and environmental factors. Available in various sizes from 8 to 30 mm, it meets the diverse needs of different fluorescence instruments.
Key Features
- High transmittance (T>90%) for optimal fluorescence detection.
- OD6 blocking from 200 to 900 nm to minimize unwanted light interference.
- Durable IAD hard coating enhances scratch resistance and longevity.
- Available in multiple sizes (8-30 mm) to fit various instrument configurations.
- Minimum order quantity of 1 piece for flexible sourcing.
Applications
Fluorescence
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Size | 8 mm |
| Thickness | Custom |
| Transmittance | 90% |
| Filter Type | bandpass |
| Coating | hard-coat, iad-pvd |
| MOQ | 1 Piece |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | T>90%; >80% |
| Item | Fluorescence Instrument |
| Process | IAD Hard Coating |
| Substrate | BK7 Glass, Colour Glass |

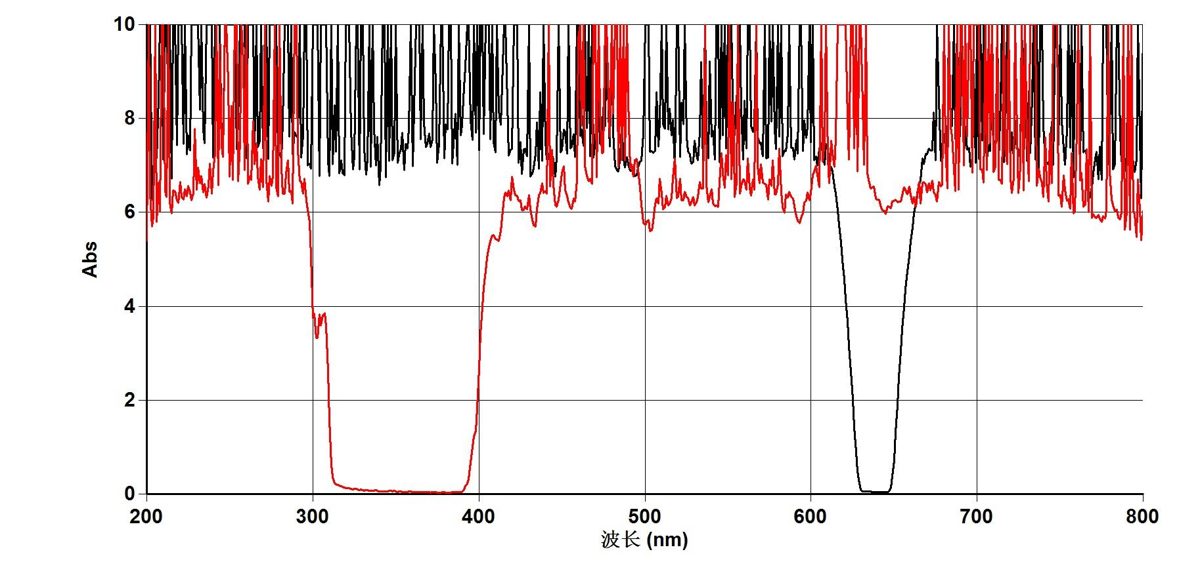

| Wavelength | BP365-70+640-20 |
| Blocking | OD6@200-900 |
| Size(Mm) | 8,10,12,12.5,12.7,20,25,25.4,30 |
| Moq | 1 Piece |
FAQ
Can I get custom sizes?
Yes, this filter is available in various sizes from 8 mm to 30 mm.
What is the minimum order quantity?
The minimum order quantity is 1 piece.
