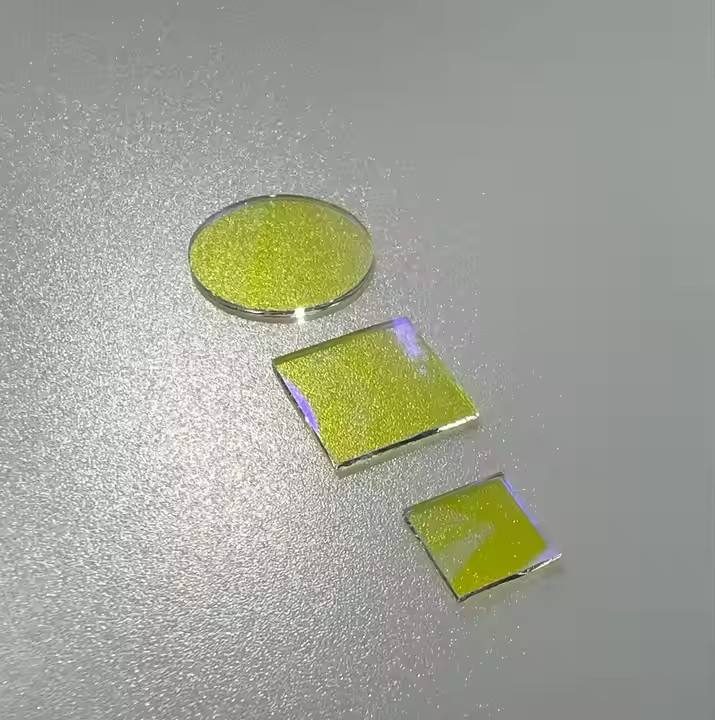

Custom Size BK7 Optical Filter

Product description

This bandpass filter is designed to effectively transmit light in the 400-700 nm range, with a center wavelength of 590 nm and a high transmittance of 90%. Ideal for applications in fluorescence microscopy and machine vision, it ensures optimal performance by allowing specific wavelengths to pass while blocking unwanted light. The filter is made from BK7 material, ensuring durability and reliability in various environments.

Key Features

High transmittance of 90% ensures efficient light passage for enhanced imaging.
Bandpass filter type tailored for applications requiring specific wavelength transmission.
Customizable thickness options from 0.21 mm to 5.0 mm for diverse application needs.
Surface quality rated at 40/20 for minimal distortion and improved optical performance.
OEM support available for tailored solutions and prototypes.

Specification Summary

Item	Value
Material	BK7
Size	Custom
Thickness	0.2 mm
Surface Quality	40/20
Transmittance	90%
Filter Type	bandpass
Cwl	590nm
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Transmittance	90%; customized
Customized Support	OEM
Warranty	2 Years
Transmission	90%
Fwhm	custom

FAQ

Can I get custom sizes for this filter?

Yes, the filter is customizable in thickness from 0.21 mm to 5.0 mm.

What is the minimum order quantity (MOQ)?

The MOQ is not specified, allowing for flexible ordering.
