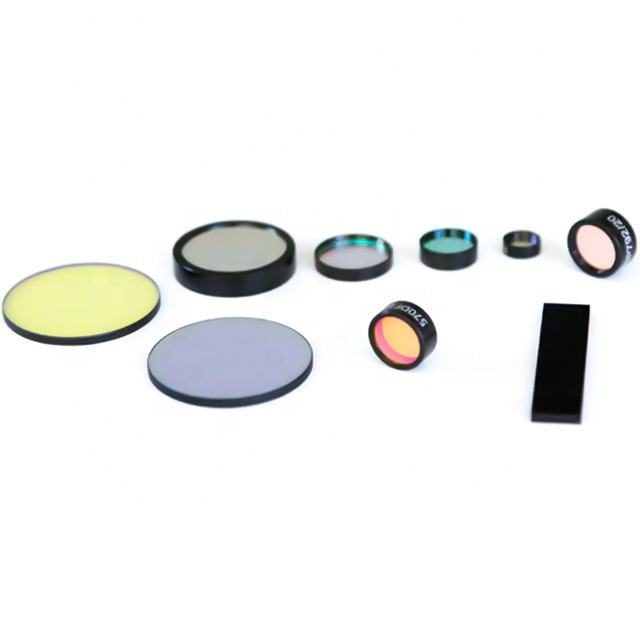

Custom Size BK7 Optical Filter
High transmittance optical filter with 90% efficiency at 940nm, ideal for NIR applications. Custom sizing available.
Core attributes
- Material
- BK7
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 90%
- Cwl
- 940nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- BK7
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 90%
- Cwl
- 940nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product description
This optical filter is designed for applications requiring high transmittance in the near-infrared spectrum, specifically around the center wavelength of 940nm. With a transmittance of 90% and a blocking density ranging from OD2 to OD6, it effectively enhances signal detection while minimizing unwanted light interference. Ideal for fluorescence microscopy and other applications within the 0.7-1.7 μm range, this filter ensures reliable performance in demanding environments.
Key Features
- Transmittance of 90% ensures optimal light passage for enhanced imaging.
- Blocking density of OD2-OD6 provides effective light suppression for clear results.
- Available thicknesses from 0.3mm to 5.0mm accommodate various application needs.
- Manufactured with double-sided polishing for superior surface quality (40/20).
- Customized support available for OEM requests to fit specific project requirements.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 90% |
| Cwl | 940nm |
| Coating | iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90% |
| Customized Support | OEM |
| Warranty | 3 Years |
| Oem | customized as per your request |
| Blocking Density | OD2-OD6 |
| Manufacture | Double sided polishing |
| Substrate | B270,JGS1,D263T,N-BK7,H-K9,Quartz Glass |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes for this filter?
Yes, custom sizes can be accommodated as per your request.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified; please inquire for details.
