Custom Size BK7 Optical Filter
Explore our 720 nm bandpass filter with 90% transmittance, ideal for fluorescence microscopy and optical applications.
Core attributes
- Material
- BK7
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 720nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- BK7
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 720nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product description

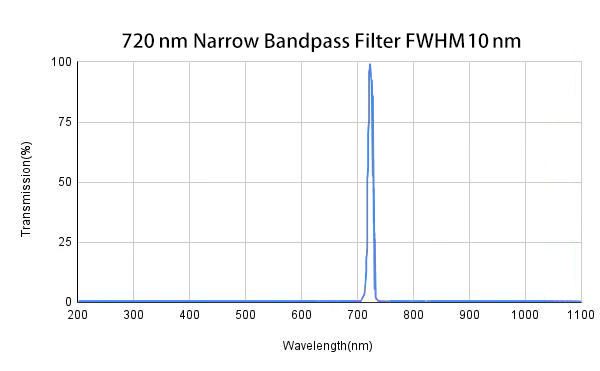

This bandpass filter is designed for applications requiring precise wavelength selection within the 0.7-1.7 μm range. With a center wavelength of 720 nm and a high transmittance of 90%, it effectively enhances signal clarity in fluorescence microscopy and other optical applications. The filter is made from BK7 glass and features advanced iad-pvd coatings for improved durability and performance, making it suitable for various environmental conditions.
Key Features
- High transmittance of 90% ensures optimal light throughput for enhanced imaging.
- Bandpass filter type is ideal for selective wavelength applications in fluorescence and laser systems.
- Available thicknesses from 0.3 mm to 5.0 mm allow for custom integration into existing systems.
- Double-sided polishing enhances surface quality (40/20) for minimal distortion.
- OEM, ODM, and OBM support available for tailored solutions.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 90% |
| Filter Type | bandpass |
| Cwl | 720nm |
| Coating | iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Blocking Density | OD2-OD6 |
| Manufacture | Double sided polishing |
| Substrate | D263T,N-BK7,H-K9 |
| Tolerance | ± 0.10mm |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes for this filter?
Yes, this filter can be customized in thickness from 0.3 mm to 5.0 mm.
What are the tolerances for this filter?
The filter has a tolerance of ± 0.10 mm.
