1 / 6Optical Filters

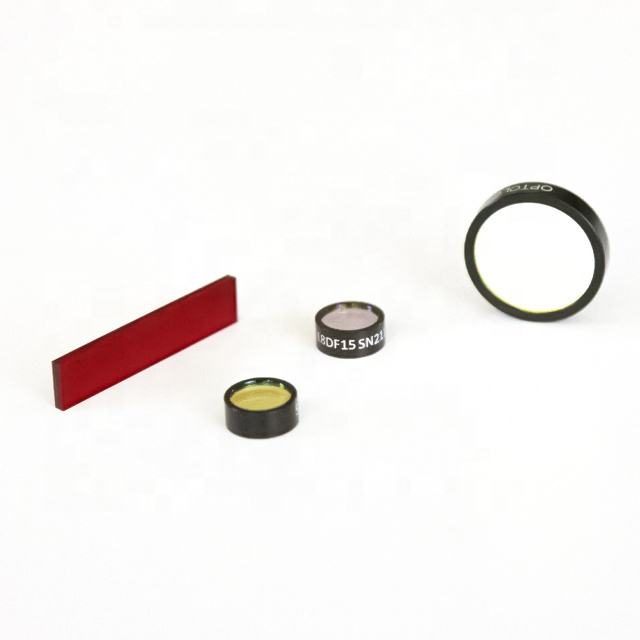

Custom Size BK7 Optical Filter
950nm IR optical filter with 85% transmittance for precise bandpass applications in the 0.7-1.7 μm range.
Core attributes
- Material
- BK7
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 950nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- BK7
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 950nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product description
The 950nm IR optical filter is designed for applications requiring precise bandpass filtering in the 0.7-1.7 μm range. With a transmittance of 85%, this filter effectively allows the desired wavelengths to pass while blocking unwanted light, making it ideal for fluorescence microscopy and other optical applications. Its durable BK7 substrate and IAD-PVD coating ensure reliable performance in various environmental conditions.
Key Features
- Transmittance of 85% for optimal signal clarity
- Bandpass filter type tailored for 950nm applications
- Compatible with BK7 substrate for enhanced durability
- Available thickness of 0.3mm for versatile integration
- Customizable options available for OEM, ODM, and OBM needs
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 950nm |
| Coating | iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Name | 950nm IR optical filter |
| Substrate | B270,BK7,JGS |
| Oem/Odm | Customizable |
| Fwhm | 30nm or OEM ± 2 |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes for this filter?
This filter is not customizable in size.
What is the minimum order quantity (MOQ)?
There is no specified minimum order quantity for this filter.
Product inquiry
Request a quote
Share your application and target specifications. Optional optical details help clarify the request.
