1 / 6Optical Filters

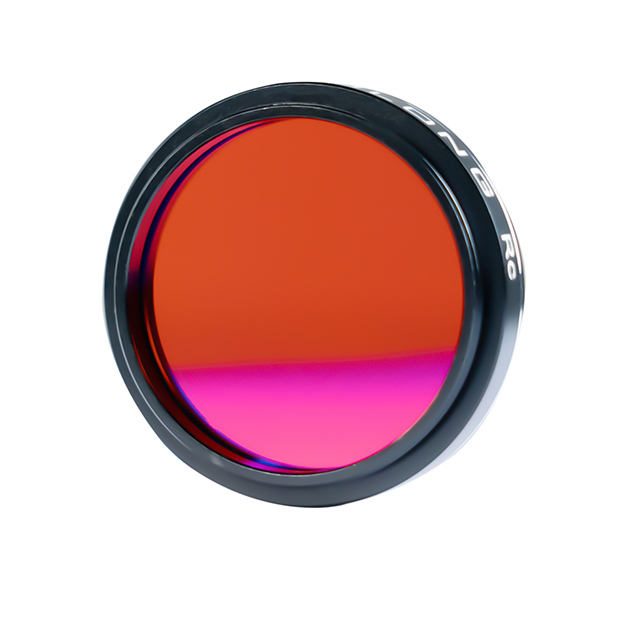

Custom Size BK7 Optical Filter
Shortpass filter with 85% transmittance, ideal for fluorescence applications. Durable BK7 glass, available in various thicknesses.
Core attributes
- Material
- BK7
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 60/40
- Transmittance
- 85%
- Filter Type
- shortpass
- Cwl
- 700nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- BK7
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 60/40
- Transmittance
- 85%
- Filter Type
- shortpass
- Cwl
- 700nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description

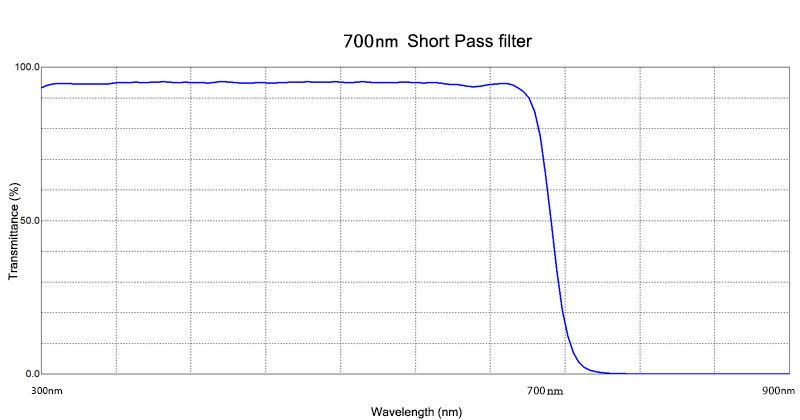

This shortpass filter is designed to effectively block wavelengths above 700 nm while allowing transmission of shorter wavelengths, making it ideal for applications in fluorescence microscopy and other optical systems requiring precise spectral control. With a center wavelength of 700 nm and a transmittance of 85%, it ensures high performance in various light conditions. The filter is manufactured from BK7 glass with iad-pvd coatings, ensuring durability and reliability in demanding environments.
Key Features
- Transmittance of 85% ensures effective light passage for optimal imaging.
- Shortpass filter type is ideal for applications requiring selective wavelength blocking.
- Manufactured from BK7 glass, providing excellent optical clarity and durability.
- Available thicknesses from 0.3 mm to 5.0 mm to suit various applications.
- Tolerance of ± 0.10 mm ensures precision fit in optical assemblies.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 60/40 |
| Transmittance | 85% |
| Filter Type | shortpass |
| Cwl | 700nm |
| Coating | iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >80-95% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Aoi | Can be customized |
| Customized | Welcome |
| Tolerance | ± 0.10mm |
| Certification | ISO9001,RoHS,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Are custom sizes available?
Custom sizes are not available for this filter.
What is the minimum order quantity?
Minimum order quantity information is not specified.
Product inquiry
Request a quote
Share your application and target specifications. Optional optical details help clarify the request.
