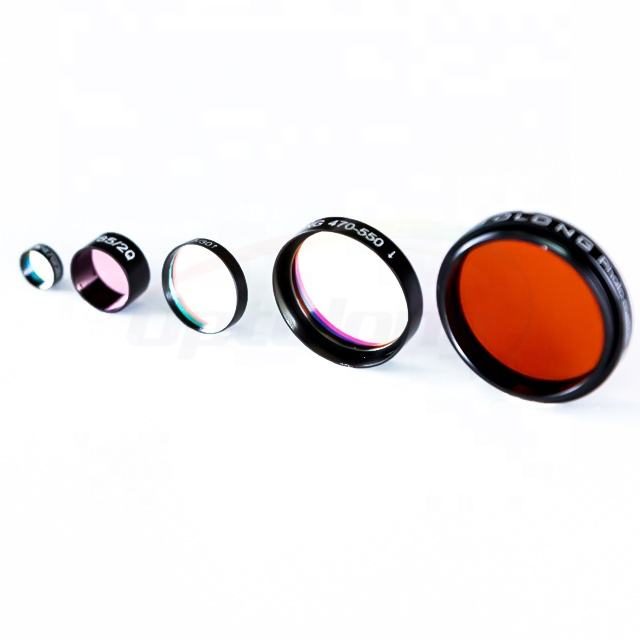

Custom Size BK7 Optical Filter

Product description

This optical filter is designed for applications requiring high transmittance in the 0.7-1.7 μm wavelength range. With a transmittance of 85% and a blocking density of OD2-OD6, it effectively isolates desired wavelengths while minimizing interference from unwanted light. The filter is suitable for various optical applications, ensuring reliable performance in demanding environments. Its durable BK7 substrate and iad-pvd coating enhance environmental durability, making it ideal for R&D and industrial applications.

Key Features

Transmittance of 85% ensures effective light passage for optimal performance.
Blocking density of OD2-OD6 provides excellent attenuation of unwanted wavelengths.
Available thicknesses from 0.3 mm to 5.0 mm for versatile application fit.
Custom support for OEM, ODM, and OBM projects to meet specific needs.
Tolerance of ± 0.10 mm ensures precision in fit and function.

Specification Summary

Item	Value
Material	BK7
Size	Custom
Thickness	0.3 mm
Surface Quality	40/20
Transmittance	85%
Coating	iad-pvd
Transmission bands	NIR (0.7-1.7 μm)

Full Specifications

Parameter	Value
Transmittance	85%
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Blocking Density	OD2-OD6
Substrate	B270,JGS1,D263T,N-BK7,H-K9
Tolerance	± 0.10mm
Shipment	Express delivery,Air,Sea

FAQ

What are the available thicknesses for this filter?

The filter is available in thicknesses ranging from 0.3 mm to 5.0 mm.

Can I get custom sizes for this filter?

Yes, the filter supports OEM, ODM, and OBM customization options.
