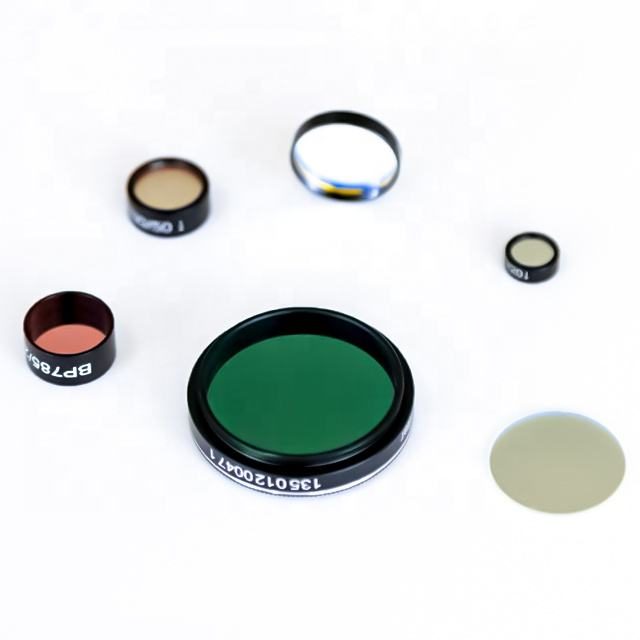

Custom Size BK7 Optical Filter

Product description

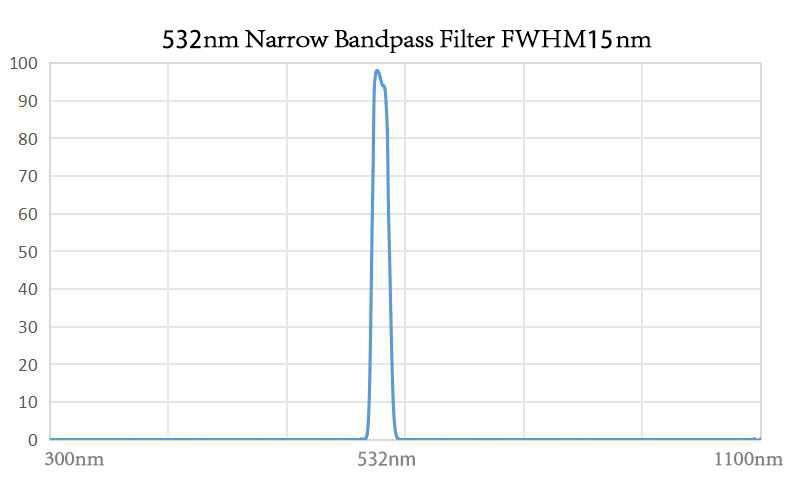

The 532nm bandpass filter is designed for applications in microscopy, effectively isolating the desired wavelength range of 400-700 nm. With a surface quality of 40/20 and a blocking density of OD2-OD6, this filter ensures high transmission and minimal interference from unwanted wavelengths. Ideal for R&D and procurement engineers seeking reliable performance in fluorescence microscopy.

Key Features

Center wavelength at 532 nm for optimal fluorescence excitation.
Blocking density of OD2-OD6 to minimize background noise.
Surface quality of 40/20 ensures high clarity and precision.
Available thicknesses from 0.3 mm to 5.0 mm for versatile applications.
Manufactured with double-sided polishing for enhanced durability.

Applications

Microscopy

Specification Summary

Item	Value
Material	BK7
Size	Custom
Thickness	0.3 mm
Surface Quality	40/20
Filter Type	bandpass
Cwl	532nm
Coating	iad-pvd
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Blocking Density	OD2-OD6
Manufacture	Double sided polishing
Substrate	B270,JGS1,D263T,N-BK7,H-K9
Certification	ISO9001,RoHs,EPR
Shipment	Express delivery,Air,Sea

FAQ

Can I get custom sizes for this filter?

Custom sizes are available, ensuring fit for specific applications.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing for flexible procurement.
