1 / 6Optical Filters

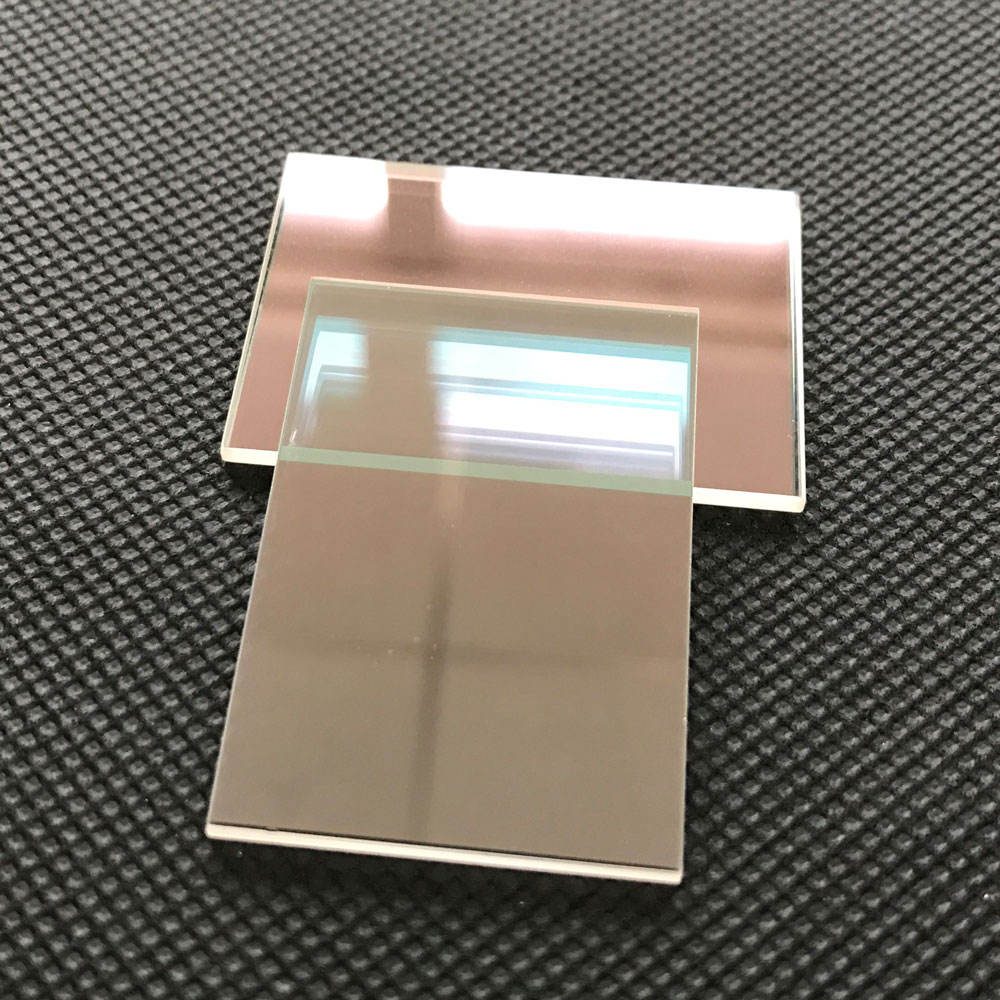

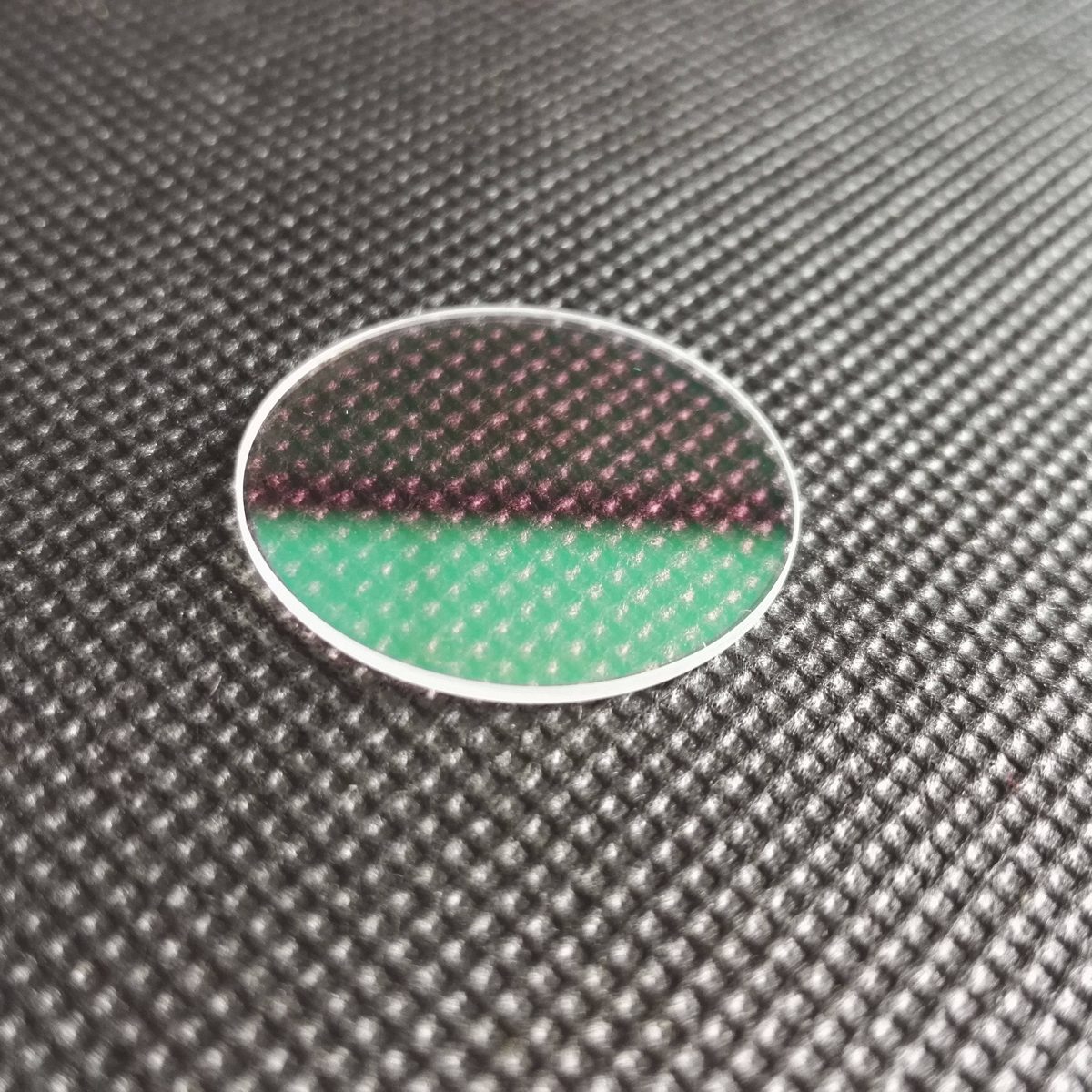

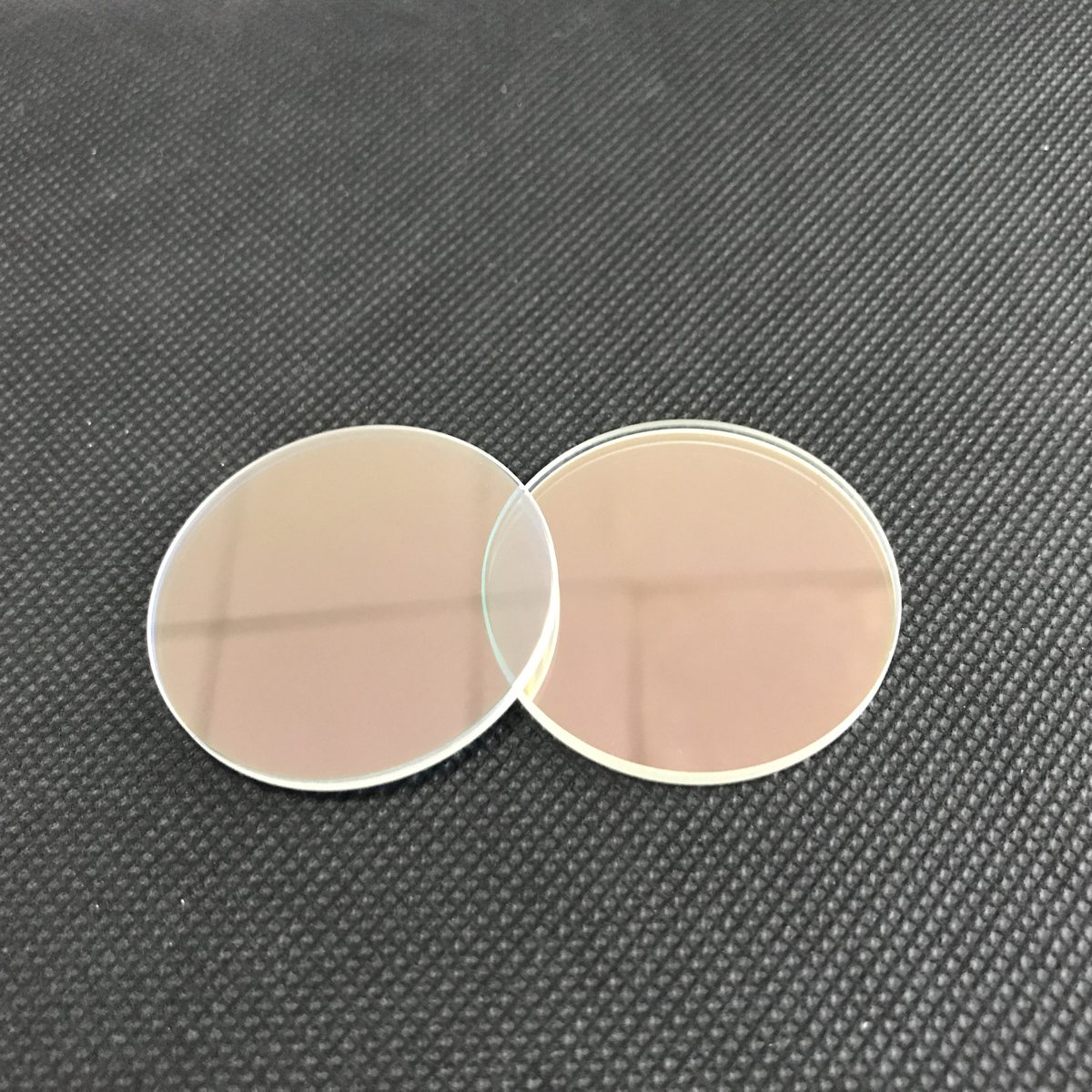

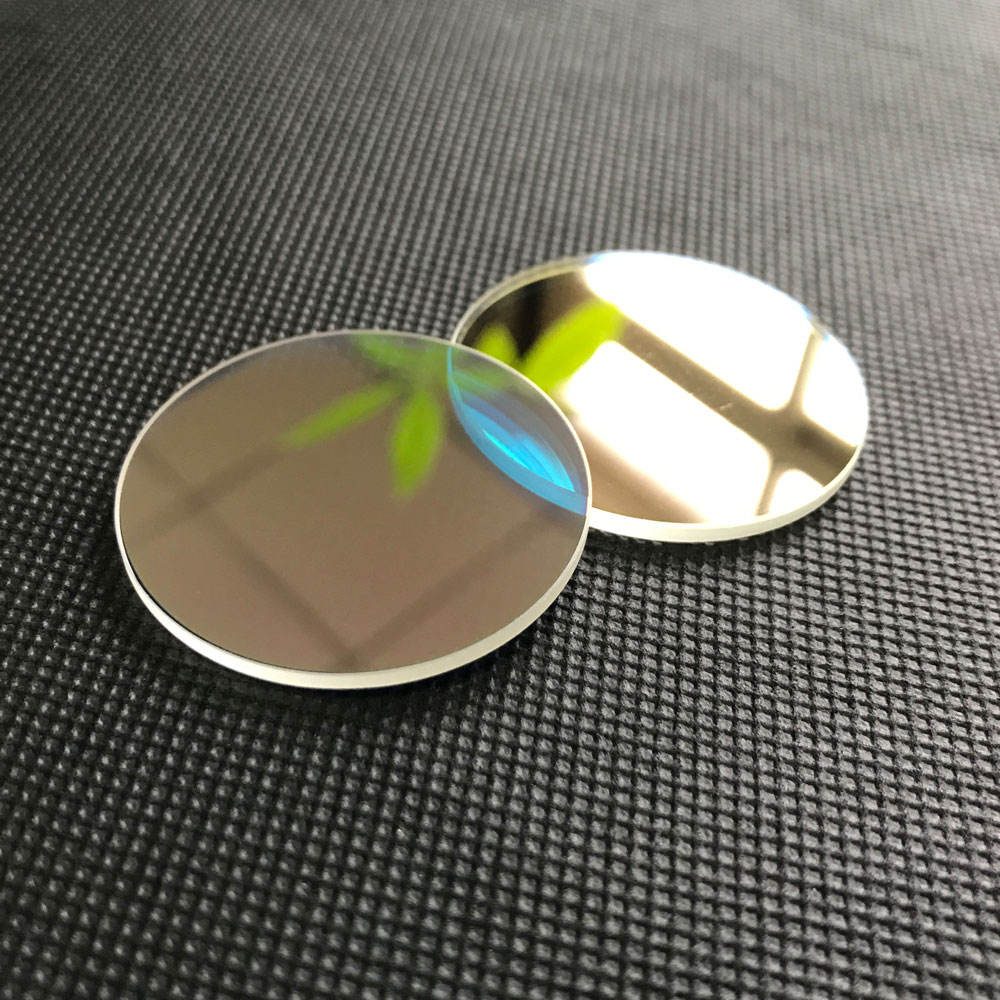

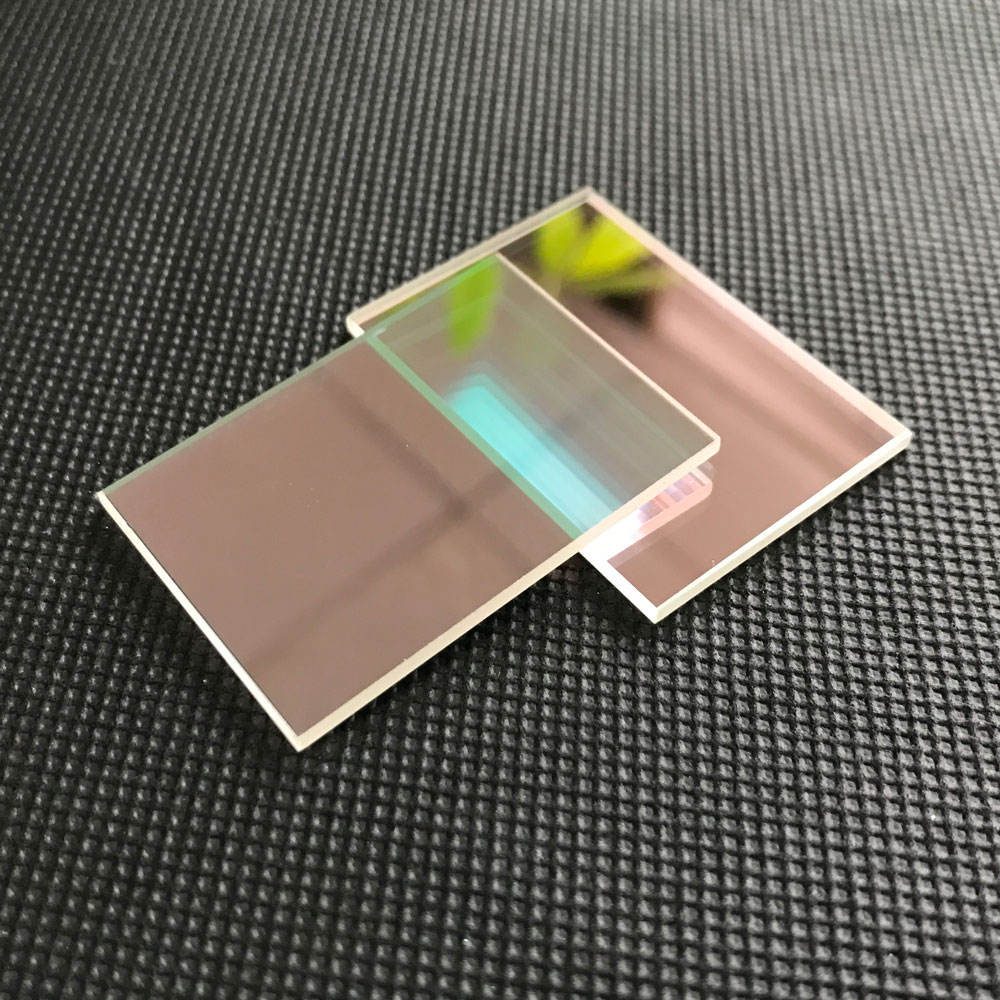

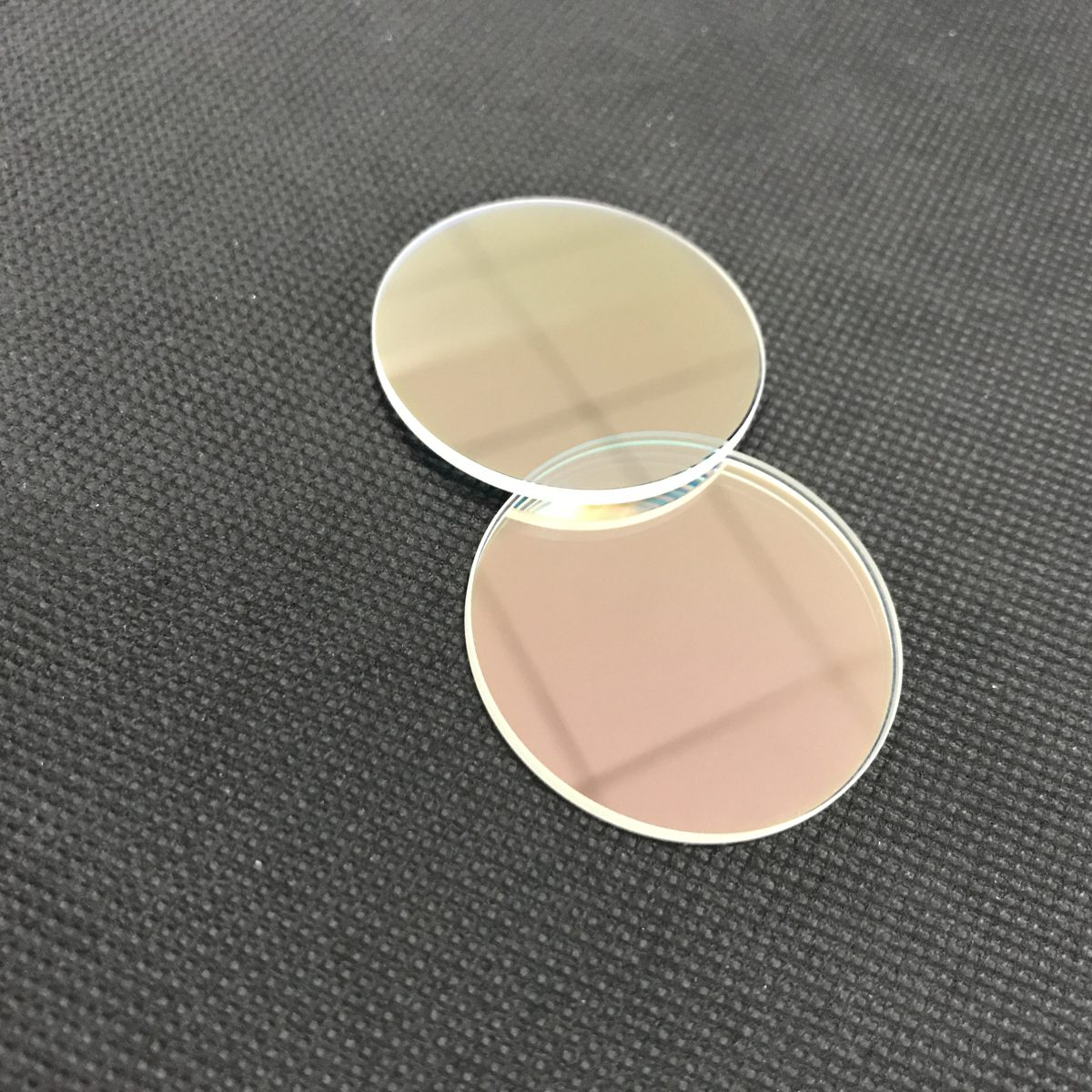

Custom Size BK7 Optical Filter, AR Coated
High-performance bandpass filter with 85% transmittance, 617 nm center wavelength, and customizable options for various applications.
Core attributes
- Material
- BK7
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 617nm
- Fwhm
- 40nm
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- BK7
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 617nm
- Fwhm
- 40nm
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product description
This bandpass filter is designed for applications requiring precise wavelength selection, particularly in fluorescence microscopy and machine vision. With a center wavelength of 617 nm and a full width at half maximum (FWHM) of 40 nm, it effectively transmits light while blocking unwanted wavelengths. The filter’s high transmittance of 85% ensures optimal performance in various lighting conditions, making it suitable for a range of optical applications.
Key Features
- Center wavelength at 617 nm ensures compatibility with specific light sources.
- FWHM of 40 nm allows for precise spectral selection, enhancing image clarity.
- 85% transmittance maximizes light throughput for improved detection sensitivity.
- AR coating enhances performance by reducing reflections and increasing transmission.
- Customizable options available for OEM, ODM, and OBM support.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Size | Custom |
| Thickness | Custom |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 617nm |
| Fwhm | 40nm |
| Coating | anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85% |
| Customized Support | OEM, ODM, OBM |
| Fwhm | 5-50nm |
| Cwl | 630nm |
| Transmission | >85% @630nm |
| Blocking | 200-100nm or 400-1100nm |
FAQ
Can I get custom sizes for this filter?
Yes, custom sizes are available to meet specific application requirements.
What is the minimum order quantity (MOQ) for this filter?
The minimum order quantity is not specified; please inquire for details.
