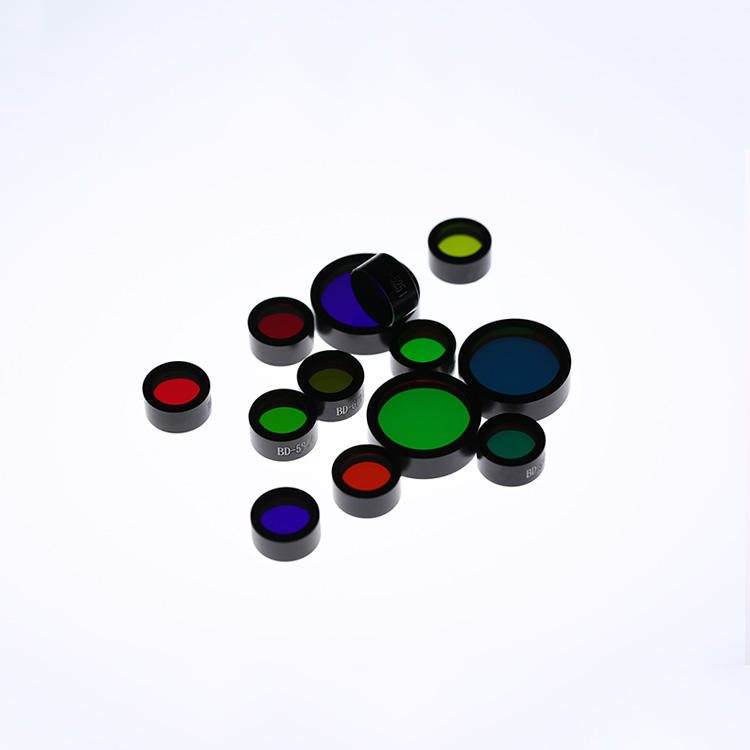

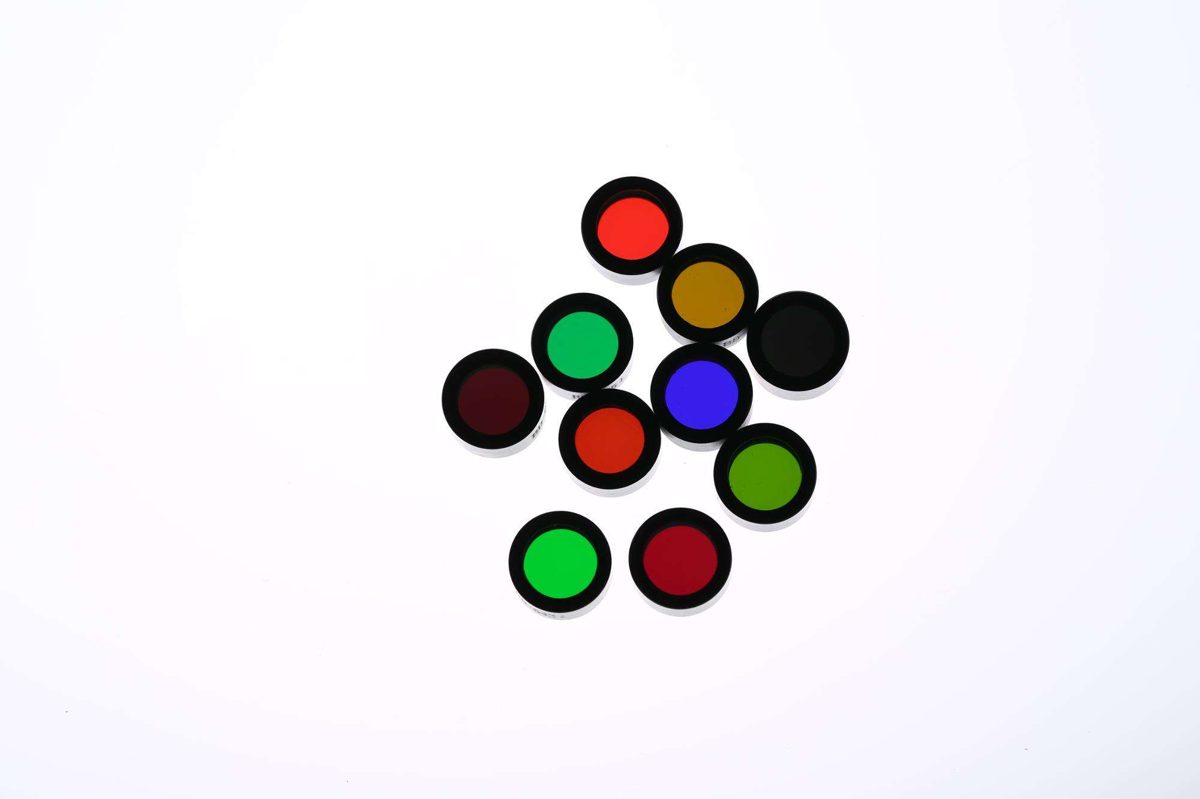

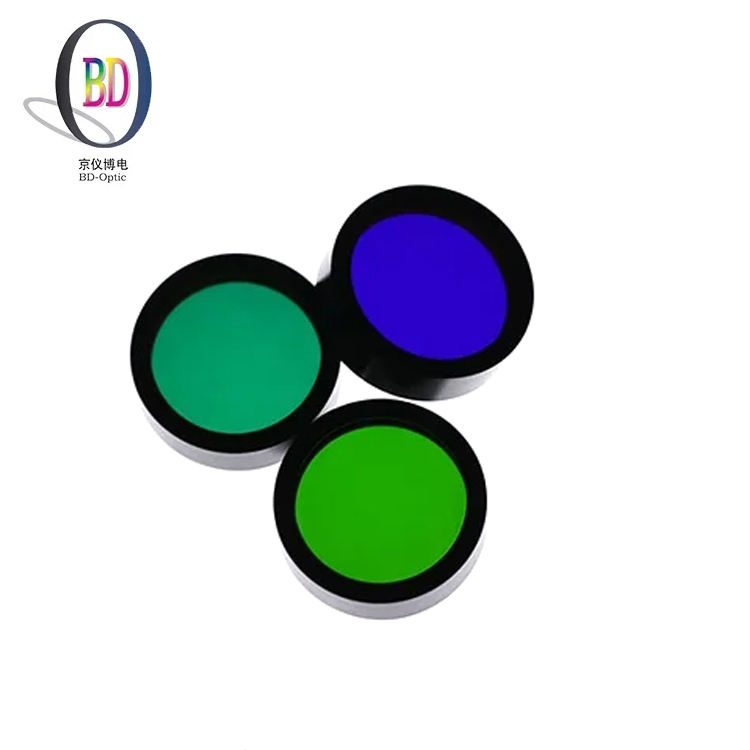

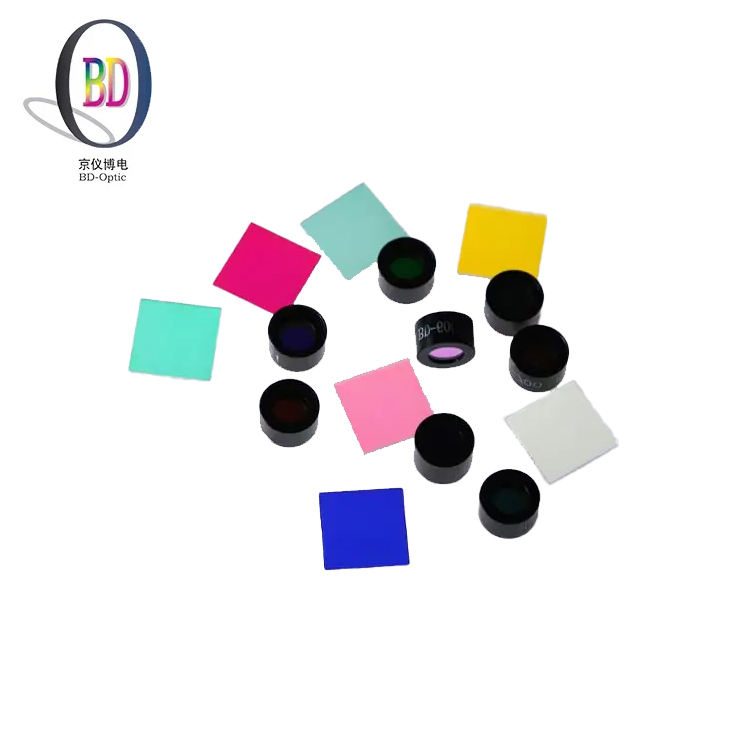

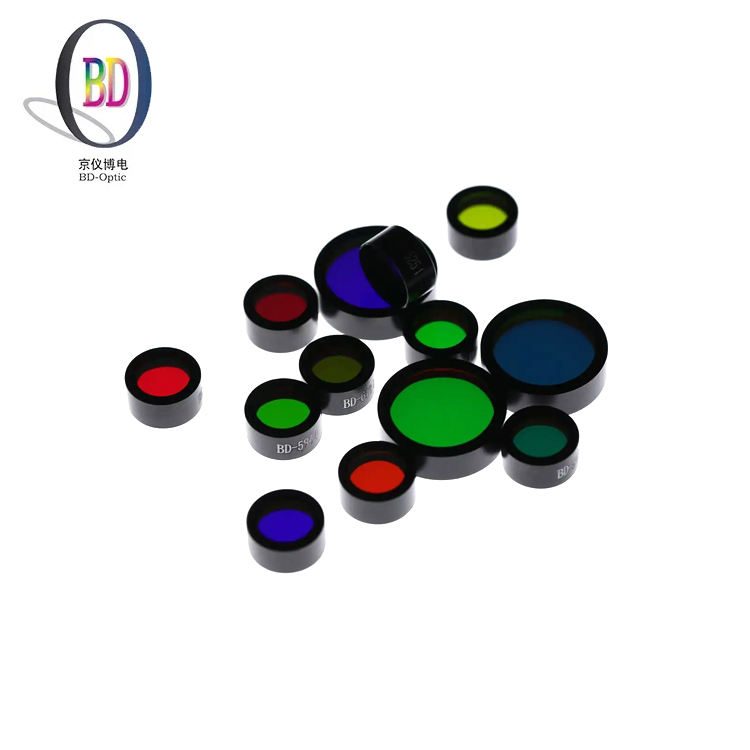

Custom Size BK7 Optical Filter

Product description

This bandpass filter is designed for fluorescence instruments, providing an effective solution for applications requiring specific wavelength transmission. With a transmittance of over 80%, it ensures optimal light passage while blocking unwanted wavelengths with an optical density of OD6 from 200 to 900 nm. The filter is suitable for various custom sizes, making it adaptable for different setups and requirements.

Key Features

Transmittance of 80% ensures high light efficiency for fluorescence applications.
Optical density of OD6 blocks unwanted wavelengths, enhancing image clarity.
Available in multiple sizes (8, 10, 12, 12.5, 12.7, 20, 25, 25.4, 30 mm) or custom dimensions.
IAD hard coating enhances durability and environmental resistance.
Minimum order quantity of 1 piece allows for prototyping and low-volume needs.

Specification Summary

Item	Value
Material	BK7
Size	Custom
Thickness	Custom
Transmittance	80%
Filter Type	bandpass
Coating	hard-coat, iad-pvd
MOQ	1 Piece

Full Specifications

Parameter	Value
Transmittance	80%; >80%
Item	Fluorescence Instrument
Process	IAD Hard Coating
Substrate	BK7 Glass, Colour Glass or Customer Design

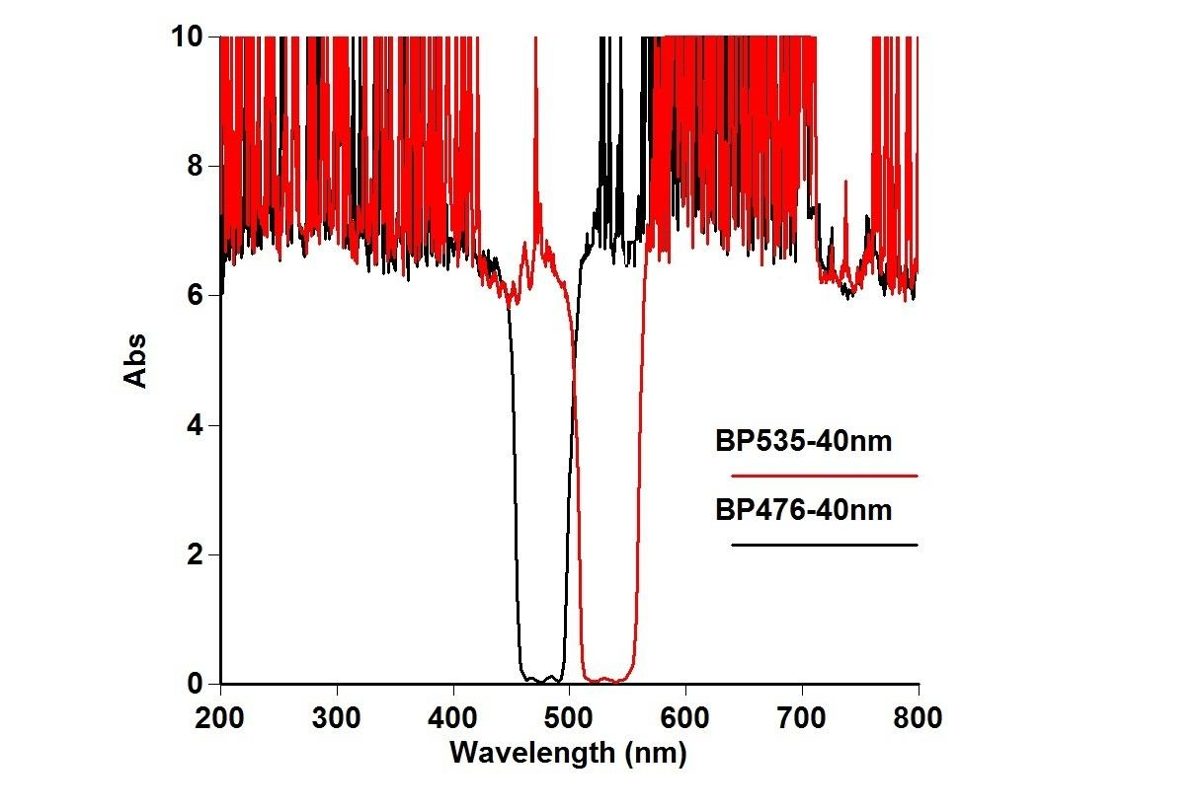

Wavelength	BP476-40+BP535-40
Blocking	OD6@200-900
Size(Mm)	8,10,12,12.5,12.7,20,25,25.4,30 or Custom
Moq	1 Piece

FAQ

Can I get custom sizes?

Yes, the filter is available in custom sizes beyond the standard options.

What is the minimum order quantity?

The minimum order quantity is 1 piece, accommodating prototyping and small orders.
