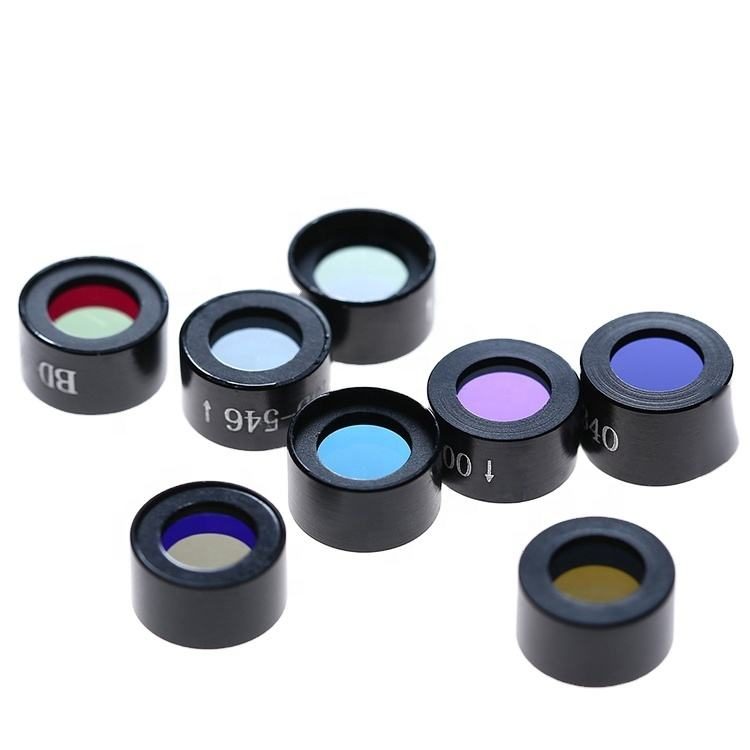

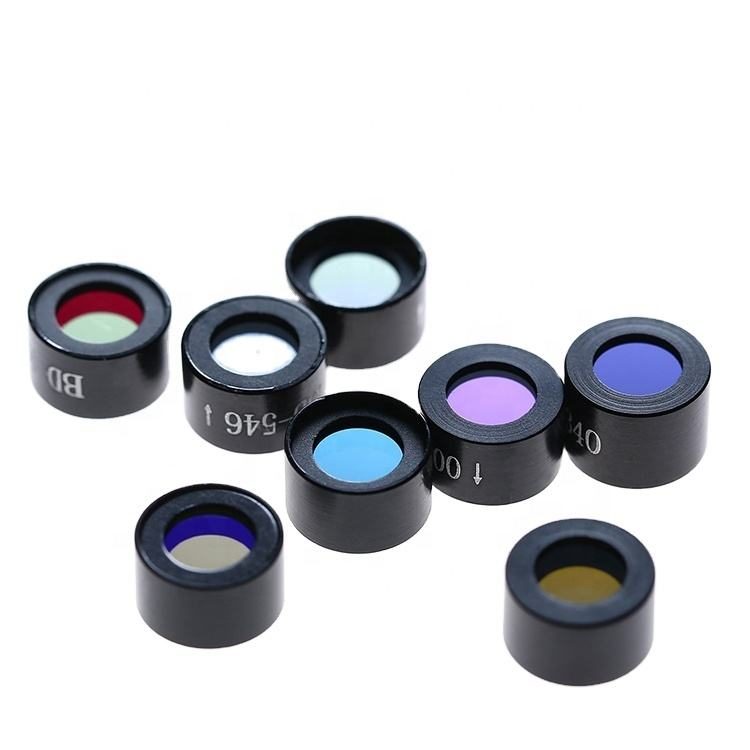

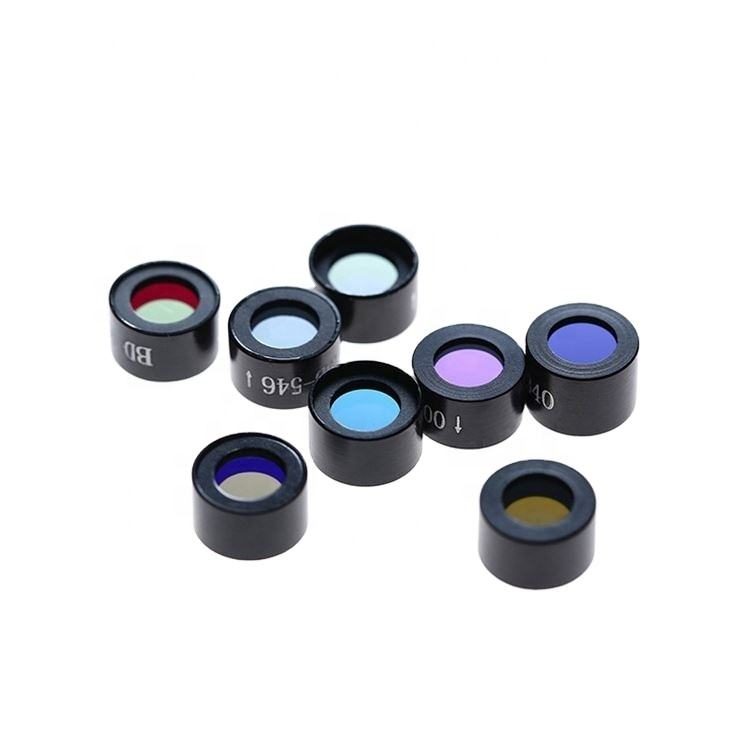

Custom Size BK7 Optical Filter
Dichroic optical filter with 90% transmittance, OD > 6 blocking, and customizable options for various applications.
Core attributes
- Material
- BK7
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 90%
- Filter Type
- dichroic
- Coating
- hard-coat
- MOQ
- 1 Piece
Product facts
Key attributes
- Material
- BK7
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 90%
- Filter Type
- dichroic
- Coating
- hard-coat
- MOQ
- 1 Piece
Product description
This dichroic optical filter is designed for applications requiring high transmittance and effective blocking in the 530 nm wavelength range. With a transmittance of 90% and excellent blocking depth (OD > 6 from 200 to 1200 nm), it is ideal for fluorescence microscopy and other optical systems. The filter is made from durable BK7 glass with a hard coating, ensuring longevity and reliability in various environments.
Key Features
- Transmittance of 90% ensures high light throughput for optimal imaging.
- Blocking depth of OD > 6 from 200 to 1200 nm protects against unwanted light interference.
- Made from BK7 glass with hard-coat for enhanced durability and environmental resistance.
- Custom substrate options available to meet specific application needs.
- Minimum order quantity of just 1 piece allows for flexible prototyping.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Size | Custom |
| Thickness | Custom |
| Transmittance | 90% |
| Filter Type | dichroic |
| Coating | hard-coat |
| MOQ | 1 Piece |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; >45% |
| Warranty | 3 Years |
| Item | Optical filter |
| Process | IAD Hard Coating |
| Substrate | BK7 Glass, Colour Glass or Customer Design |
| Wavelength | 530+/-2nm |
| Fwhm | 10+/-2nm |
| Blocking | OD>6@200-1200 |
| Size(Mm) | 25*7mm/ Effective Diameter 22mm |
| Moq | 1 Piece |
FAQ
Can I get custom sizes?
Custom substrate options are available to meet specific application needs.
What is the minimum order quantity?
The minimum order quantity is 1 piece.
