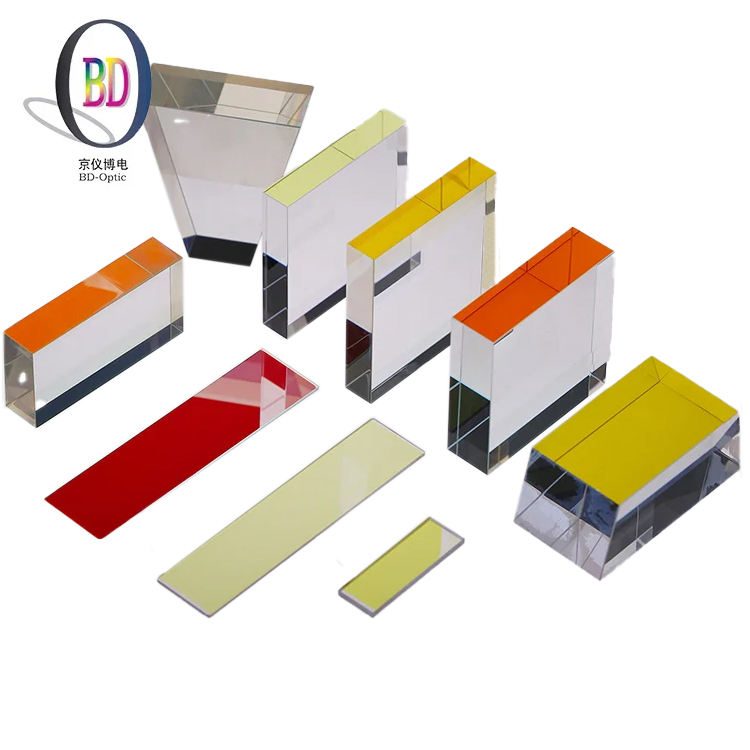

Custom Size BK7 Optical Filter
Durable IPL beauty filters with 85% transmittance, custom sizes, and low MOQ for optimal light performance.
Core attributes
- Material
- BK7
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 85%
- Cwl
- 975nm
- Coating
- hard-coat, iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
- MOQ
- 1 Piece
Product facts
Key attributes
- Material
- BK7
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 85%
- Cwl
- 975nm
- Coating
- hard-coat, iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
- MOQ
- 1 Piece
Product description
This filter is specifically designed for IPL beauty applications, effectively transmitting wavelengths between 750-1200 nm with a center wavelength of 975 nm and a transmittance of 85%. The hard-coat and IAD-PVD coatings ensure durability and performance, making it suitable for demanding environments. With a blocking depth of OD>4 from 200-1200 nm, it provides excellent protection against unwanted light, enhancing the efficacy of light-based treatments.
Key Features
- Transmittance of 85% ensures optimal light passage for IPL applications.
- Durable hard-coat and IAD-PVD coatings enhance environmental resistance.
- Custom sizes available (D1-D16 or tailored) to fit specific equipment needs.
- Minimum order quantity of just 1 piece allows for flexible procurement.
- Blocking depth of OD>4@200-1200 nm protects against unwanted wavelengths.
Applications
Beauty Ipl
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Size | Custom |
| Thickness | Custom |
| Transmittance | 85% |
| Cwl | 975nm |
| Coating | hard-coat, iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm) |
| MOQ | 1 Piece |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; ≥90%; ≥85% |
| Customized Support | OEM, ODM |
| Warranty | 1 Year |
| Item | IPL Beauty Machine Filters |
| Process | IAD Hard Coating |
| Substrate | BK7 Glass, Colour Glass or Customer Design |
| Wavelength | 750-1200nm |
| Blocking | OD>4@200-1200 |
| Size(Mm) | D1,D2,D3,D4,D5,D7,D7.7,D8,D9.9,D10,D10.8,D12,D15,D16 or Custom |
| Moq | 1 Piece |
FAQ
Can I order custom sizes?
Yes, custom sizes are available, including D1-D16 or tailored dimensions.
What is the minimum order quantity?
The minimum order quantity is 1 piece.
