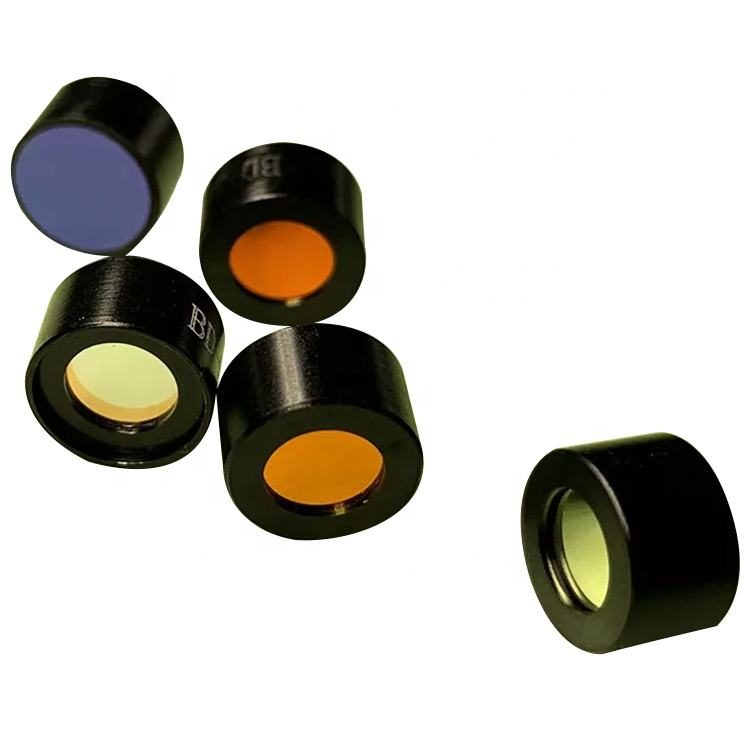

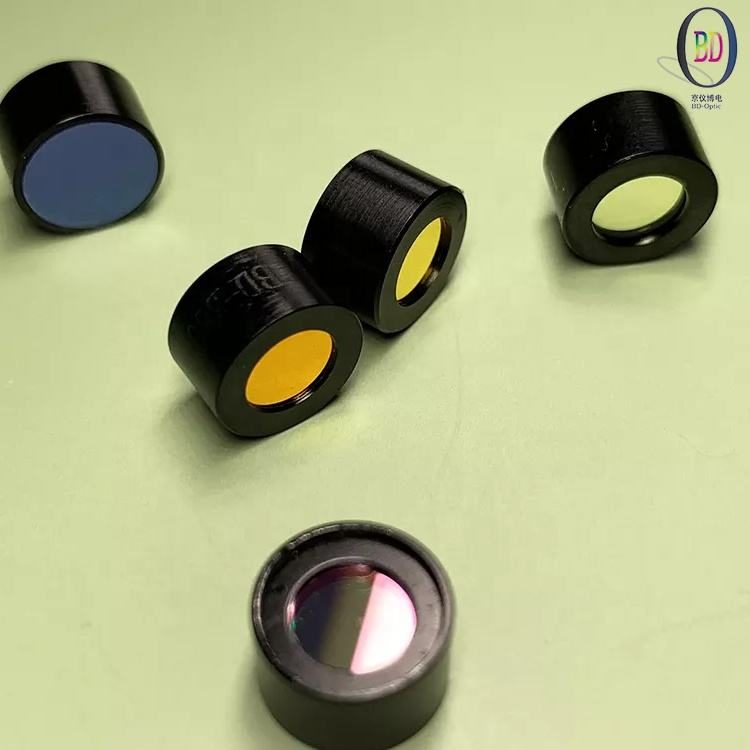

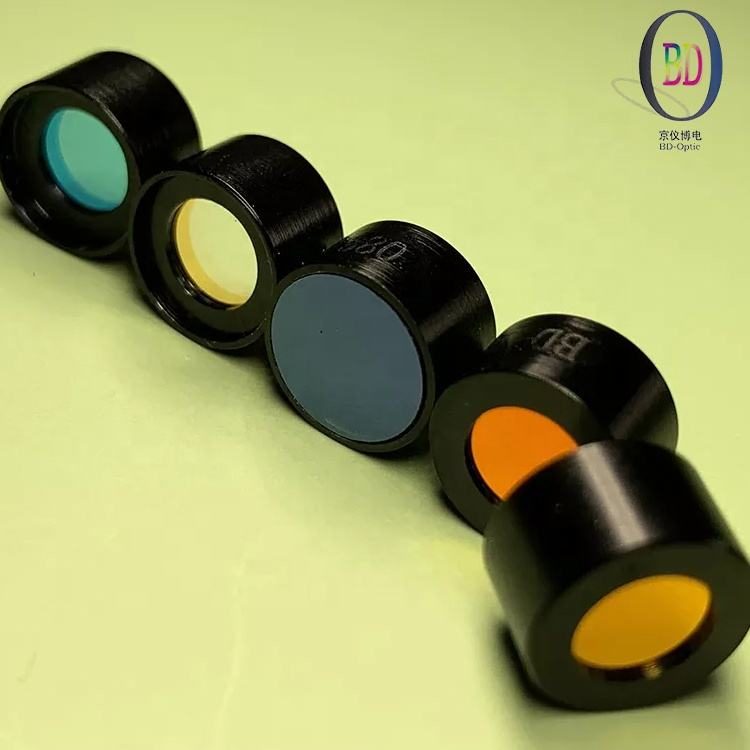

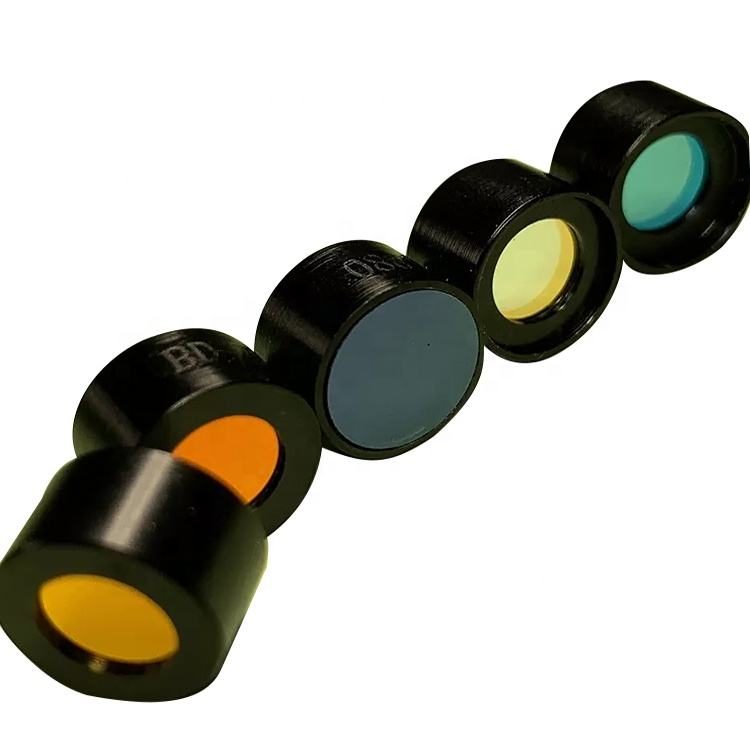

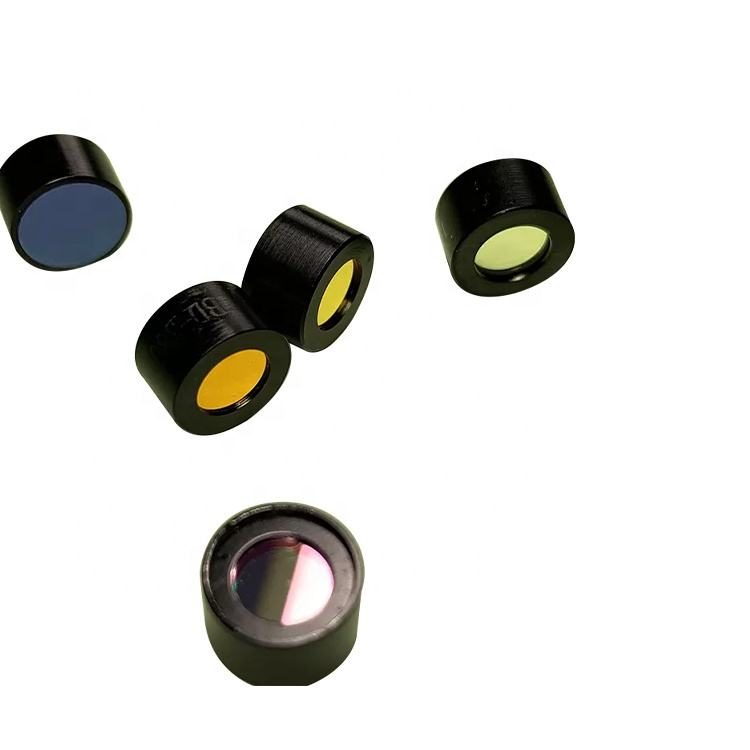

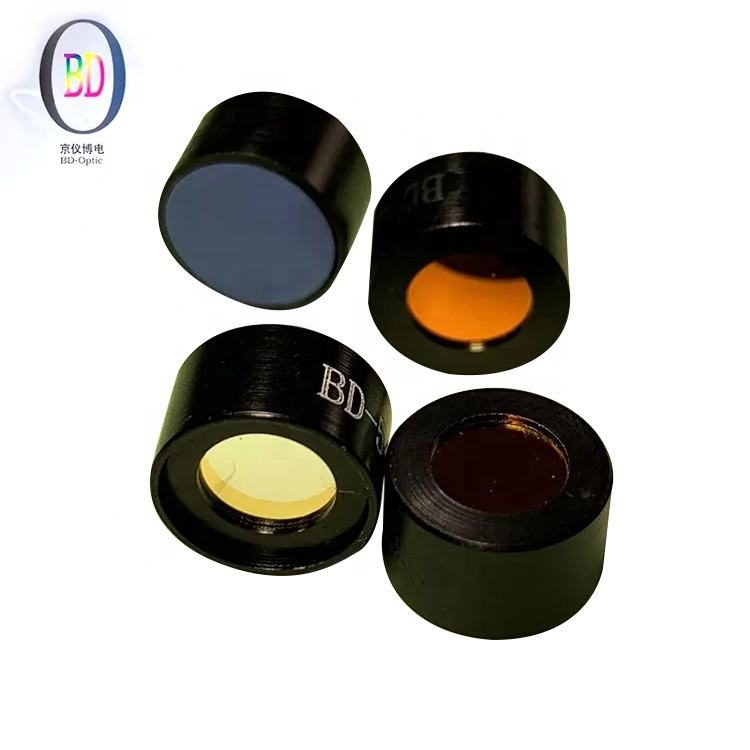

Custom Size BK7 Optical Filter

Explore the Biochemical Analyze Optical Filter with 40% transmittance, ideal for fluorescence applications, customizable sizes, and low MOQ.

Core attributes

Material: BK7
Size: Custom
Thickness: Custom
Transmittance: 40%
Filter Type: bandpass
Coating: hard-coat
Transmission bands: NIR (0.7-1.7 μm), VIS (400-700 nm)
MOQ: 1 Piece

Product description

The Biochemical Analyze Optical Filter is designed for applications requiring precise spectral transmission in the 600 nm range, with a bandpass filter type that effectively transmits light while blocking unwanted wavelengths. With a transmittance of 40% and an optical density (OD) greater than 4 from 200 to 1200 nm, this filter is ideal for fluorescence microscopy and other life science applications. The hard-coat finish ensures durability, making it suitable for various environmental conditions.

Key Features

Transmittance of 40% ensures effective light passage for optimal imaging.
OD greater than 4 from 200-1200 nm provides excellent blocking of unwanted wavelengths.
Available in multiple standard sizes (D8 to D25.4 mm) or custom designs for specific needs.
Hard-coat coating enhances durability and resistance to environmental factors.
Minimum order quantity of just 1 piece allows for flexible prototyping.

Specification Summary

Item	Value
Material	BK7
Size	Custom
Thickness	Custom
Transmittance	40%
Filter Type	bandpass
Coating	hard-coat
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)
MOQ	1 Piece

Full Specifications

Parameter	Value
Transmittance	40%; 45%; >45%
Customized Support	OEM
Warranty	3 Years
Item	Biochemical analyze optical filter
Process	IAD Hard Coating
Substrate	BK7 Glass, Colour Glass or Customer Design
Wavelength	600+/-2nm
Fwhm	10+/-2nm
Blocking	OD>4@200-1200
Size(Mm)	D8,D10,D12,D12.5,D12.7,D15,D25,D25.4 or Customer Design
Moq	1 Piece

FAQ

Can I get custom sizes?

Yes, custom sizes are available along with standard sizes ranging from D8 to D25.4 mm.

What is the minimum order quantity?

The minimum order quantity is 1 piece, allowing for easy prototyping.
