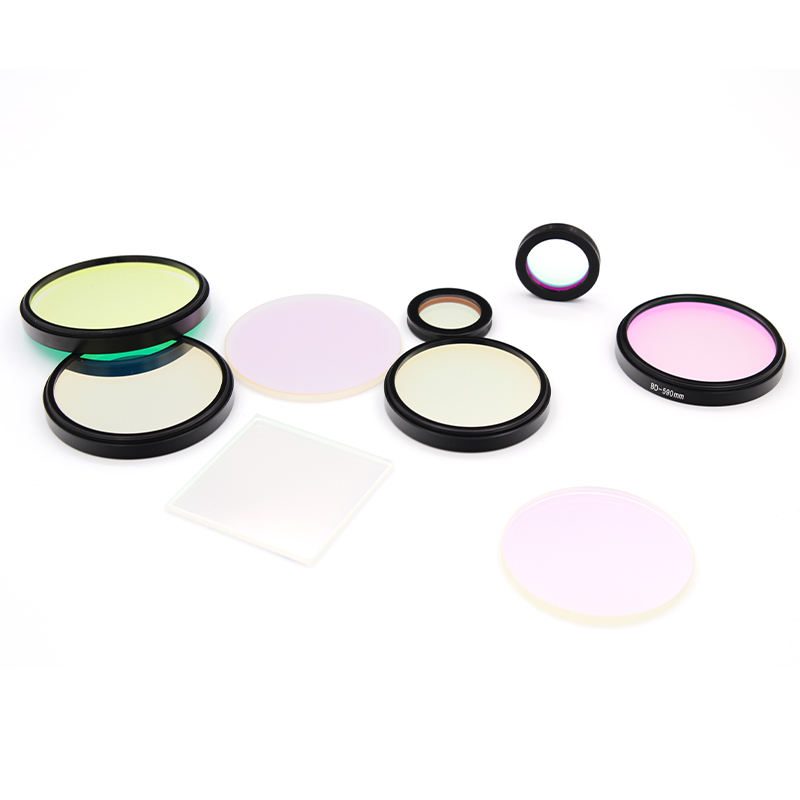

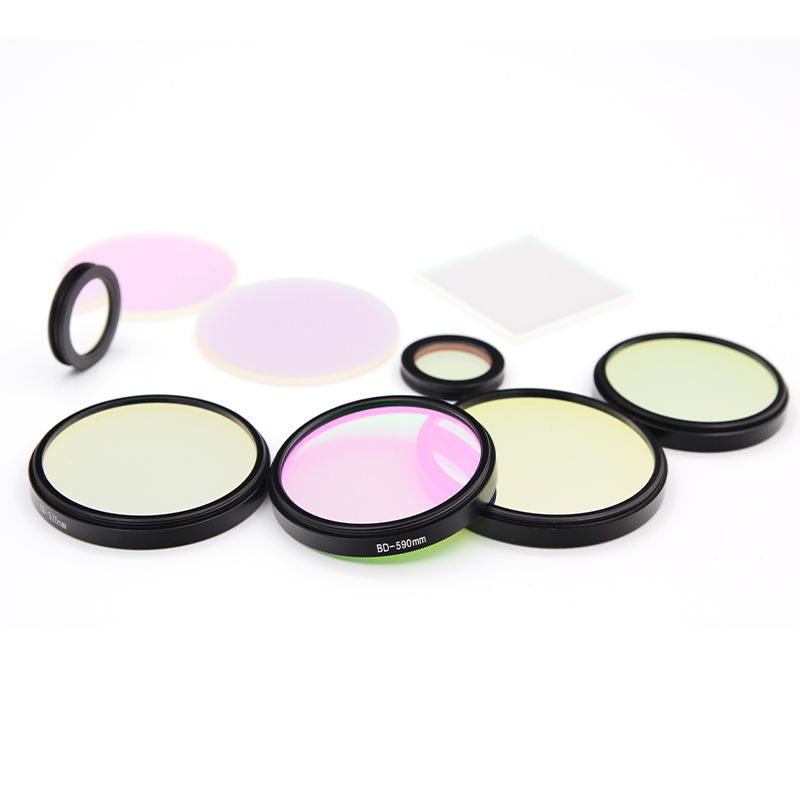

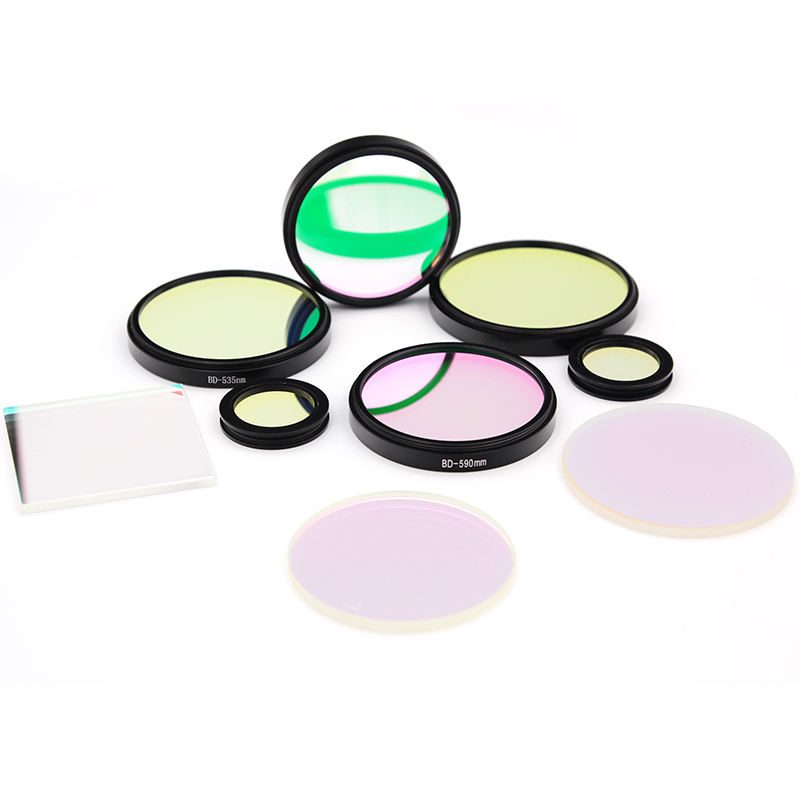

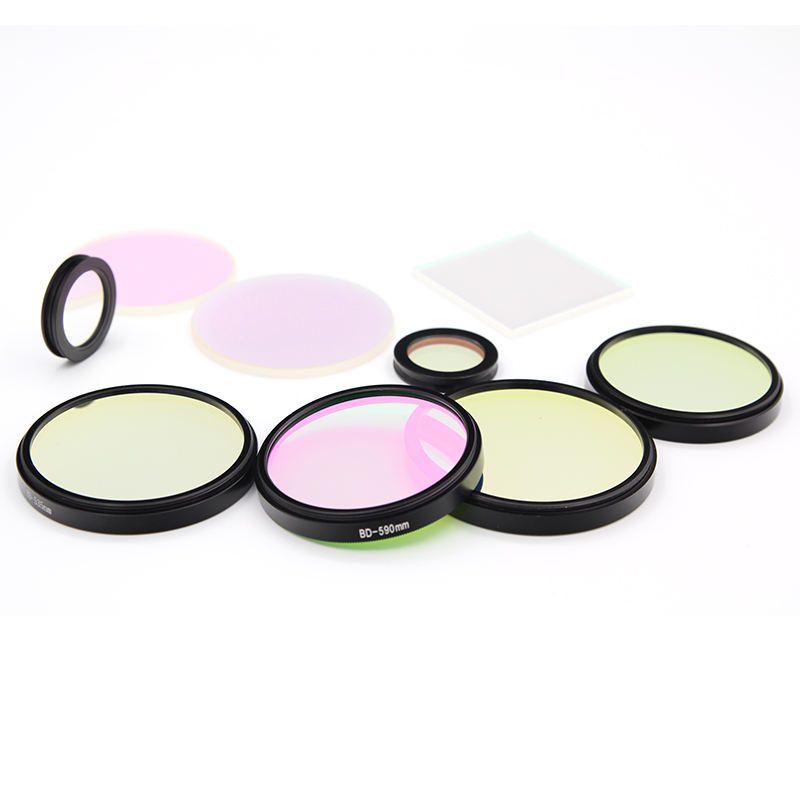

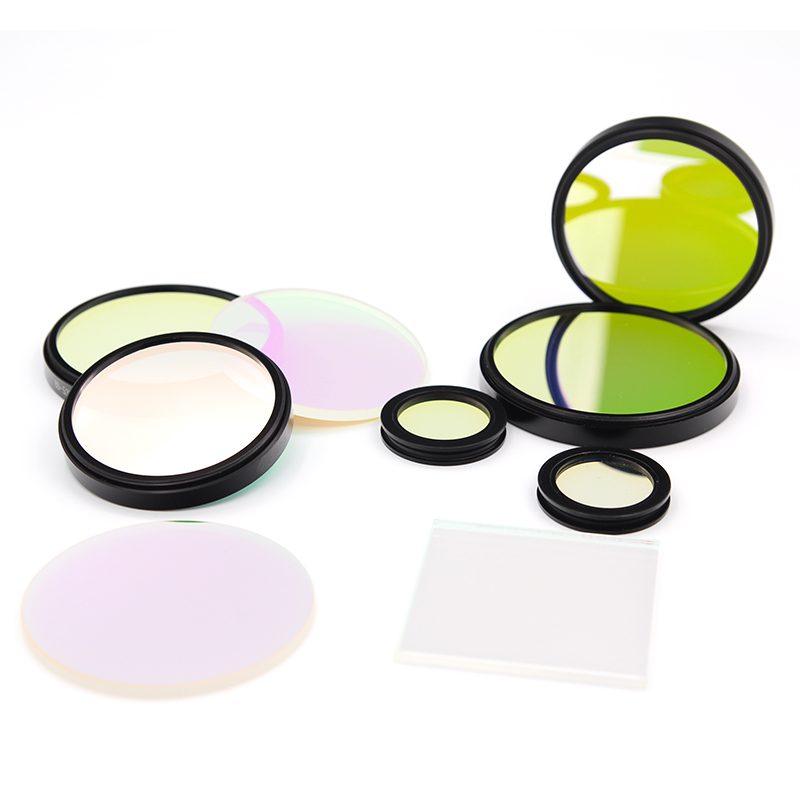

Custom Size BK7 Optical Filter

The CCD Gel Image System Filters are designed for optimal performance in fluorescence microscopy and imaging applications, specifically targeting a center wavelength of 535 nm. With a transmittance of over 95% and a blocking depth of OD > 4 from 200 to 1200 nm, these filters ensure high fidelity in capturing fluorescence signals while effectively blocking unwanted wavelengths. The filters are made from durable BK7 glass and feature a hard-coat IAD-PVD process, enhancing environmental durability for reliable performance in various conditions.

Key Features

• Transmittance > 95% ensures maximum light capture for enhanced imaging.
• Center wavelength of 535 nm tailored for specific fluorescence applications.

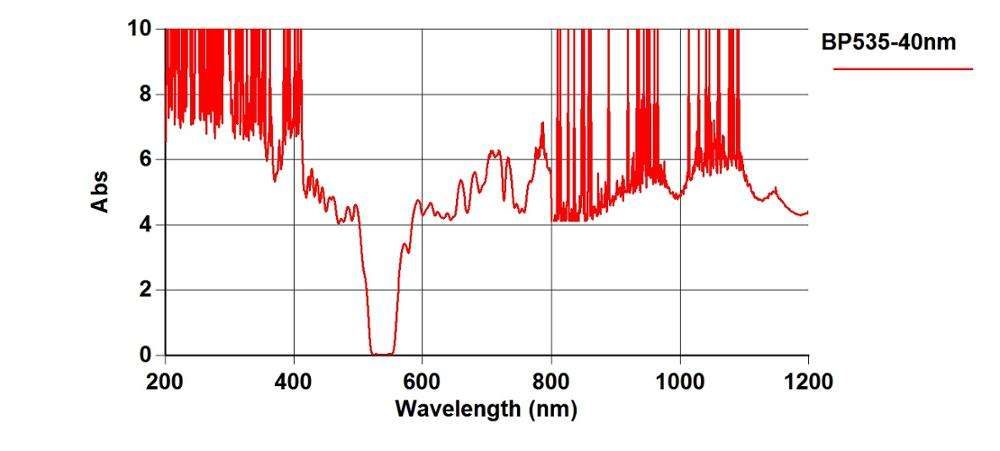

• Blocking depth of OD > 4 from 200 to 1200 nm prevents interference from unwanted light.
• Customizable options available for substrate, size, and surface quality.
• Low minimum order quantity of 1 piece allows for prototyping and testing.

Specification Summary

Full Specifications

FAQ

Can I get custom sizes?

Yes, customizable options are available for substrate, size, and surface quality.

What is the minimum order quantity?

The minimum order quantity is 1 piece.
