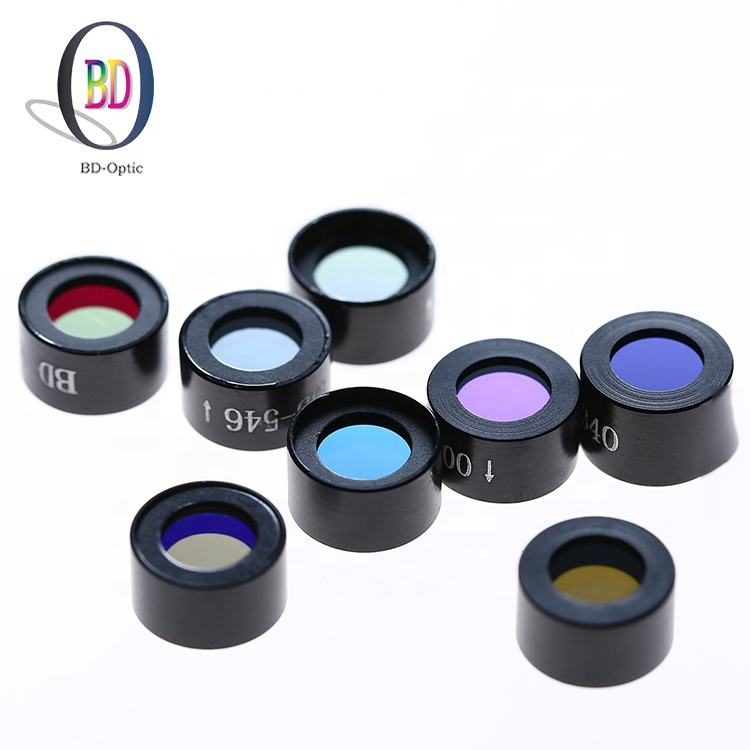

Custom Size BK7 Optical Filter

Product description

The Biochemical Analyze Optical Filter is designed for applications requiring high transmittance in the 400-700 nm range, specifically centered at 546 nm. With a transmittance of 90% and a blocking depth of OD>4 from 200-1200 nm, this filter effectively isolates desired wavelengths for fluorescence microscopy and other optical applications. Its hard-coat finish ensures durability, making it suitable for various environmental conditions.

Key Features

Transmittance of 90% ensures optimal light throughput for accurate readings.
Blocking depth of OD>4 from 200-1200 nm provides superior protection against unwanted wavelengths.
Custom sizes available, including D8, D10, D12, and more, to fit specific application needs.
Hard-coat coating enhances environmental durability, suitable for rigorous applications.
Minimum order quantity of just 1 piece allows for flexible prototyping and testing.

Specification Summary

Item	Value
Material	BK7
Size	Custom
Thickness	Custom
Transmittance	90%
Cwl	546nm
Coating	hard-coat
Transmission bands	VIS (400-700 nm)
MOQ	1 Piece

Full Specifications

Parameter	Value
Transmittance	90%; >90%
Customized Support	OEM
Warranty	3 Years
Item	Biochemical analyze optical filter
Process	IAD Hard Coating
Substrate	BK7 Glass, Colour Glass or Customer Design

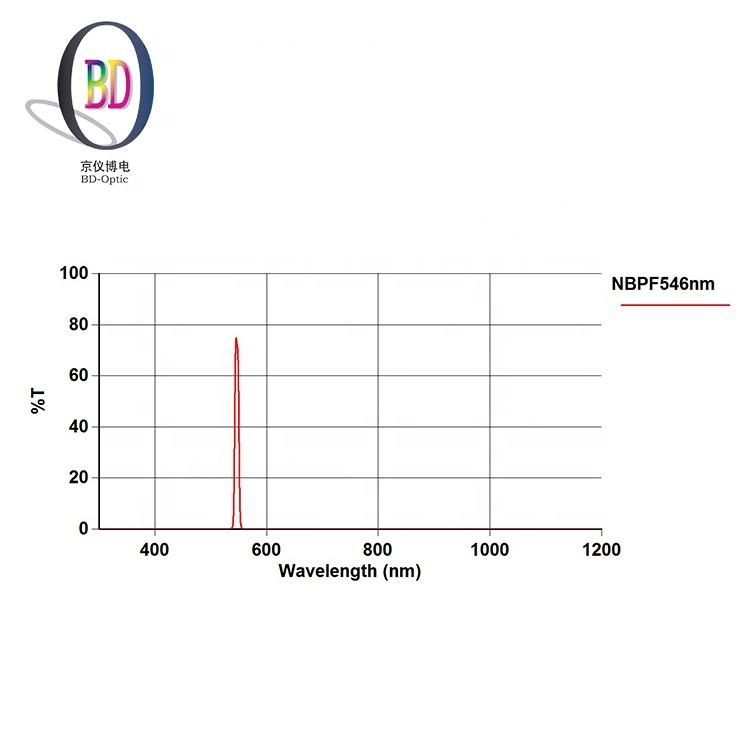

Wavelength	NBPF546nm
Blocking	OD>4@200-1200
Size(Mm)	D8,D10,D12,D12.5,D12.7,D15,D25,D25.4 or Customer Design
Moq	1 Piece

FAQ

Can I get custom sizes?

Yes, custom sizes are available including D8, D10, D12, D12.5, D12.7, D15, D25, D25.4 or customer design.

What is the minimum order quantity?

The minimum order quantity is 1 piece, allowing for easy prototyping.
