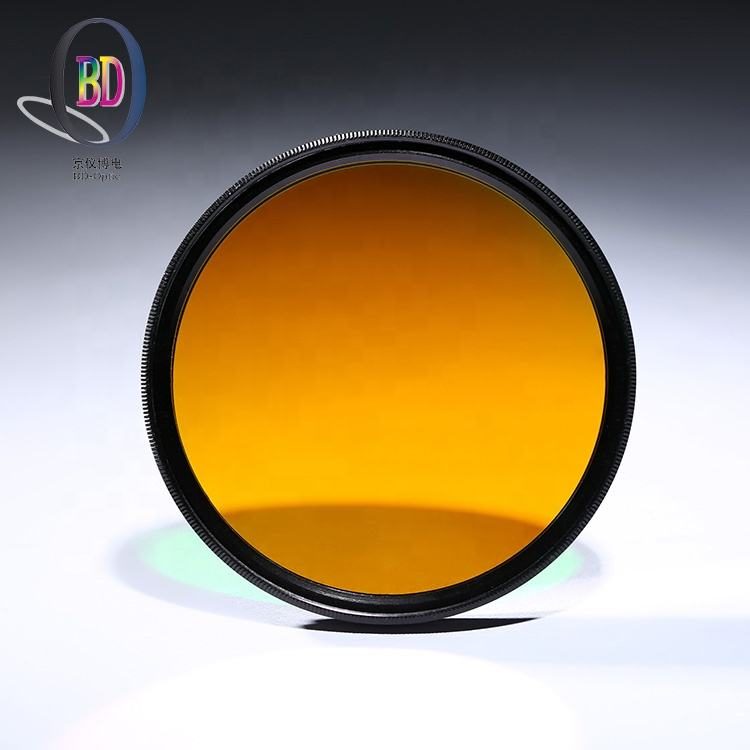

Custom Size BK7 Optical Filter

Product description

This filter is designed for optimal performance in fluorescence microscopy and imaging applications, specifically targeting a center wavelength of 590 nm with a full-width half-maximum (FWHM) of 60 nm. With a high transmittance of 90% and robust blocking capabilities (OD > 4 from 200-1200 nm), it ensures minimal interference from unwanted wavelengths. The hard-coated BK7 glass construction enhances durability, making it suitable for various environments.

Key Features

Transmittance of 90% ensures high light throughput for accurate imaging.
Center wavelength of 590 nm is ideal for specific fluorescence applications.
Blocking depth of OD > 4 from 200-1200 nm minimizes background noise.
Custom sizes available, including M49, M52, M55, M58, M62, M67, or tailored designs.
Low minimum order quantity of 1 piece allows for prototyping and small-scale needs.

Specification Summary

Item	Value
Material	BK7
Size	Custom
Thickness	Custom
Transmittance	90%
Cwl	590nm
Coating	hard-coat
Transmission bands	VIS (400-700 nm)
MOQ	1 Piece

Full Specifications

Parameter	Value
Transmittance	90%; T>90%; >95%
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Item	CCD Gel Image System Filters
Process	IAD Hard Coating
Substrate	BK7 Glass or Customer Design
Wavelength	590nm
Fwhm	60nm
Blocking	OD>4@200-1200
Size(Mm)	M49, M52, M55,M58, M62,M67 OR Customer Design
Moq	1 Piece

FAQ

Can I get custom sizes?

Yes, custom sizes are available, including M49, M52, M55, M58, M62, M67, or customer designs.

What is the minimum order quantity?

The minimum order quantity is 1 piece, accommodating prototyping and small orders.
