1 / 6Optical Filters

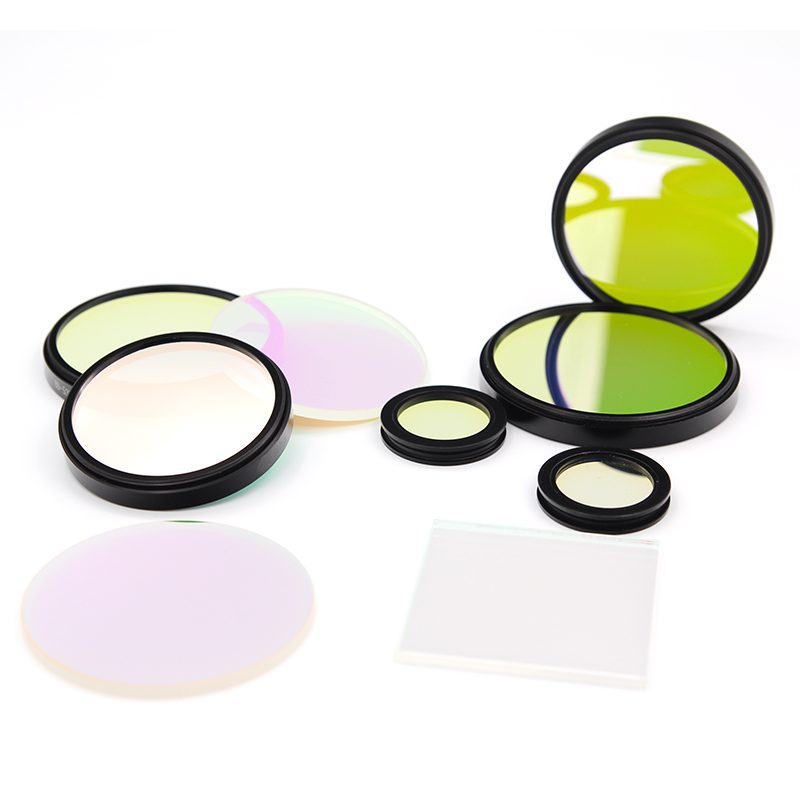

Custom Size BK7 Optical Filter
Explore CCD Gel Image System Filters with 95% transmittance, 620 nm center wavelength, and custom sizing options.
Core attributes
- Material
- BK7
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 95%
- Cwl
- 620nm
- Fwhm
- 7nm
- Coating
- hard-coat, iad-pvd
- Transmission bands
- VIS (400-700 nm)
- MOQ
- 1 Piece
Product facts
Key attributes
- Material
- BK7
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 95%
- Cwl
- 620nm
- Fwhm
- 7nm
- Coating
- hard-coat, iad-pvd
- Transmission bands
- VIS (400-700 nm)
- MOQ
- 1 Piece
Product description
The CCD Gel Image System Filters are designed for optimal performance in fluorescence microscopy and imaging applications, specifically targeting a center wavelength of 620 nm with a narrow FWHM of 7 nm. With a high transmittance of 95%, these filters ensure efficient light passage while providing excellent blocking capabilities (OD > 4 from 200 to 1200 nm). The hard-coat and IAD-PVD coatings enhance durability, making them suitable for various environments. Custom sizing options and low minimum order quantities (MOQ) provide flexibility for diverse applications.
Key Features
- High transmittance of 95% ensures efficient light passage.
- Center wavelength of 620 nm with a narrow FWHM of 7 nm for precise spectral fit.
- Durable hard-coat and IAD-PVD coatings enhance environmental durability.
- Custom OEM support available for substrate, size, and surface quality.
- Low MOQ of 1 piece allows for prototyping and small batch orders.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Size | Custom |
| Thickness | Custom |
| Transmittance | 95% |
| Cwl | 620nm |
| Fwhm | 7nm |
| Coating | hard-coat, iad-pvd |
| Transmission bands | VIS (400-700 nm) |
| MOQ | 1 Piece |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | >95% |
| Customized Support | OEM |
| Warranty | 3 Years |
| Item | CCD Gel Image System Filters |
| Process | IAD Hard Coating |
| Substrate | BK7 Glass |
| Wavelength | 620nm |
| Fwhm | 40~60nm |

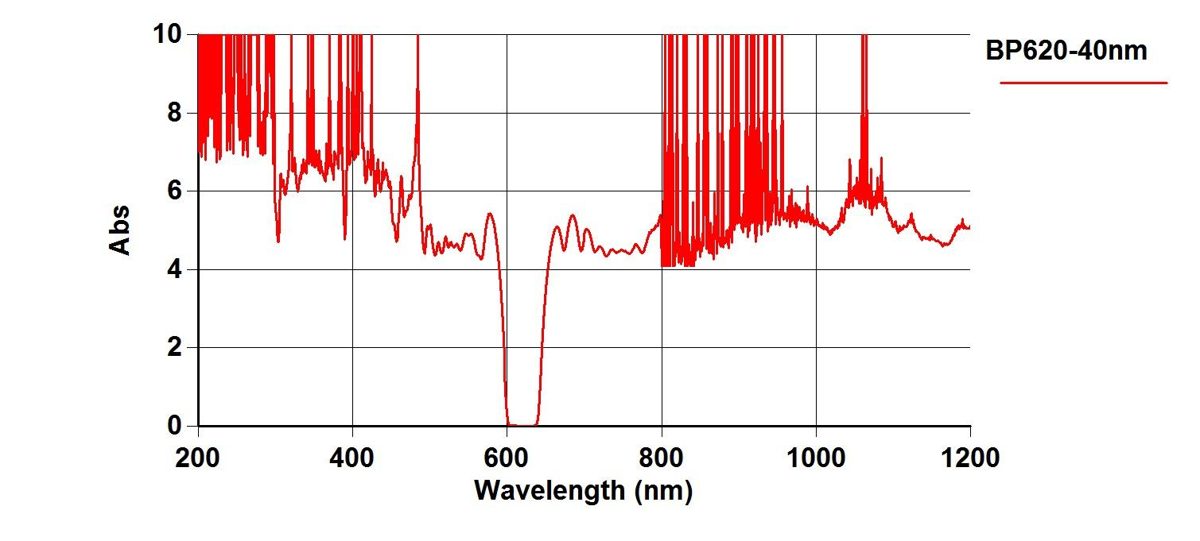

| Blocking | OD>4@200-1200 |
| Size(Mm) | M49, M52, M55,M58, M62,M67 |
| Moq | 1 Piece |
| Oem | Support Substrate,Size,Surface Quality |
FAQ
Can I get custom sizes?
Yes, custom sizes are supported through OEM options.
What is the minimum order quantity?
The minimum order quantity (MOQ) is 1 piece.
