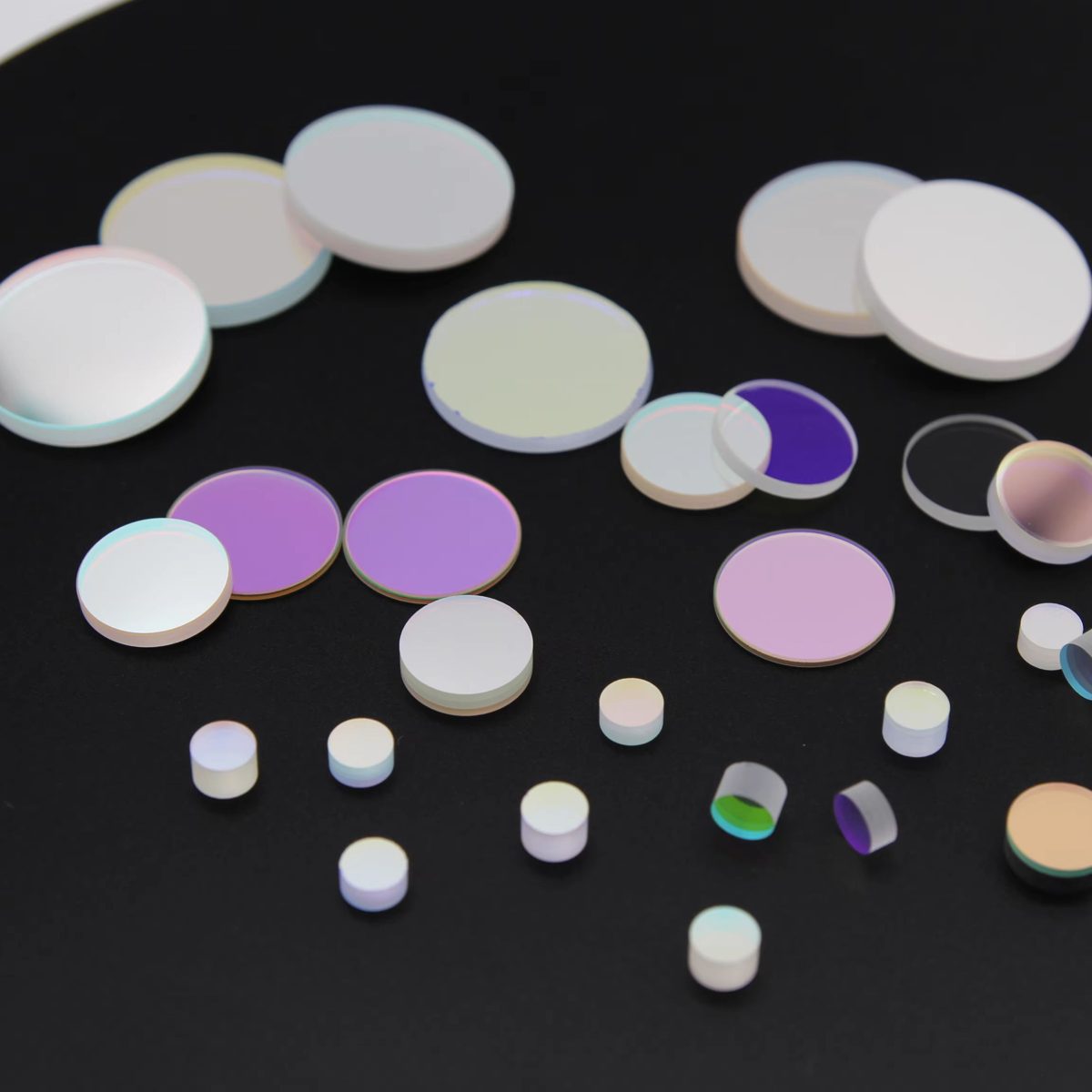

Custom Size BK7 Optical Filter

Product description

This fluorescence filter is designed for optimal performance in applications requiring precise spectral transmission. With a center wavelength of 692 nm and a full width at half maximum (FWHM) of 45 nm, it effectively transmits light while blocking unwanted wavelengths (OD6 from 200-900 nm). The filter is made from durable BK7 glass and features a hard-coat IAD-PVD process, ensuring longevity and reliability in various environments. Its customizable sizes and low minimum order quantity (MOQ) make it suitable for both prototyping and production needs.

Key Features

Center wavelength of 692 nm for precise fluorescence application fit.
Transmittance of 80% ensures effective light transmission.
Blocking depth of OD6 from 200-900 nm for superior wavelength rejection.
Durable hard-coat IAD-PVD coating for environmental resilience.
Available in multiple sizes (8-30 mm) or custom dimensions to meet specific requirements.

Applications

Fluorescence

Specification Summary

Item	Value
Material	BK7
Size	Custom
Thickness	Custom
Transmittance	80%
Cwl	692nm
Coating	hard-coat, iad-pvd
Transmission bands	VIS (400-700 nm)
MOQ	1 Piece

Full Specifications

Parameter	Value
Transmittance	80%; >80%
Warranty	3 Years
Item	Fluorescence Instrument
Process	IAD Hard Coating
Substrate	BK7 Glass, Fused Silicon or Customer Design
Wavelength	692nm
Fwhm	45nm
Blocking	OD6 @200-900
Size(Mm)	8,10,12,12.5,12.7,20,25,25.4,30 or Custom
Moq	1 Piece

FAQ

What is the minimum order quantity?

The minimum order quantity (MOQ) is 1 piece.

Can I get custom sizes?

Yes, sizes are available in 8, 10, 12, 12.5, 12.7, 20, 25, 25.4, 30 mm or custom dimensions.
