Custom Size BK7 Optical Filter

Product description

This bandpass channel optical filter is designed for medical applications, providing reliable transmission in the 400-700 nm range with a peak transmittance of 80%. Its IAD hard coating ensures durability and performance, making it suitable for various fluorescence microscopy and imaging systems. The filter effectively blocks wavelengths outside its specified range, ensuring clear and accurate results.

Key Features

Transmittance of 80% ensures optimal light throughput for accurate imaging.
OD>4 blocking from 200-1200 nm prevents unwanted light interference.
IAD hard coating provides enhanced durability and environmental resistance.
Custom substrate options available, including BK7 glass and customer designs.
Minimum order quantity of just 1 piece for prototyping and small-scale needs.

Applications

Medical

Specification Summary

Item	Value
Material	BK7
Size	Custom
Thickness	Custom
Transmittance	80%
Filter Type	bandpass
Coating	hard-coat, iad-pvd
Transmission bands	VIS (400-700 nm), UV (<400 nm)
MOQ	1 Piece

Full Specifications

Parameter	Value
Transmittance	80%
Customized Support	OEM
Warranty	3 Years
Item	channel optical filter
Process	IAD Hard Coating
Substrate	BK7 Glass, Colour Glass or Customer Design

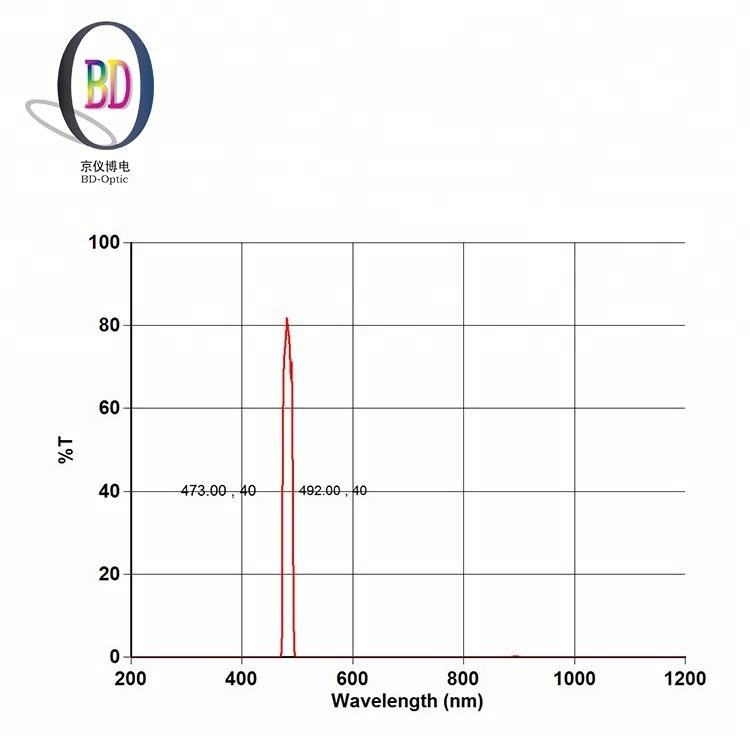

Wavelength	485+/-3nm
Fwhm	20+/-3nm
Blocking	OD>4@200-1200
Moq	1 Piece
Certification	IECEE

FAQ

Can I get custom sizes or thicknesses?

Custom substrate options are available, including BK7 glass and customer designs.

What is the minimum order quantity?

The minimum order quantity is 1 piece, allowing for prototyping and small orders.
