1 / 4Optical Filters

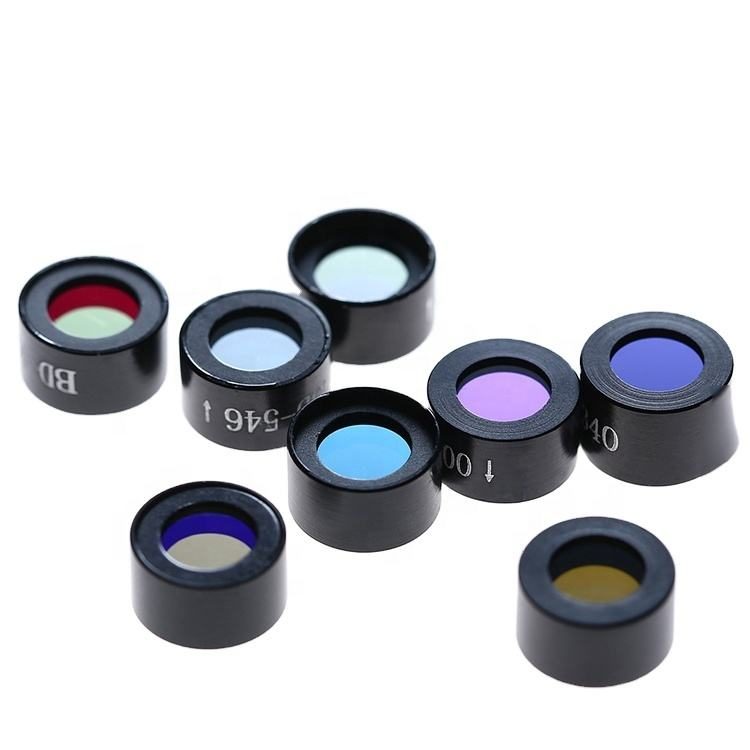

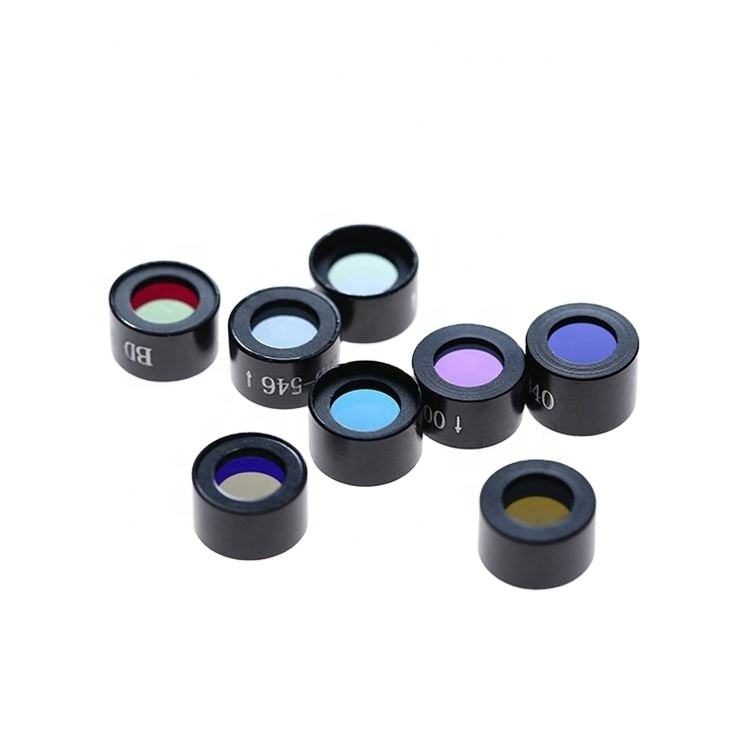

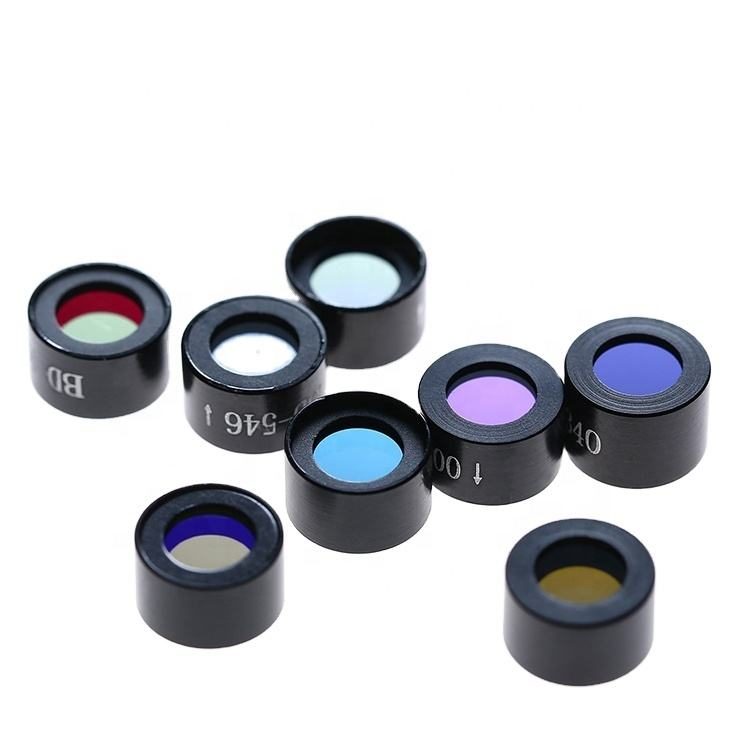

Custom Size BK7 Optical Filter
Explore our 352 nm bandpass filter with >55% transmittance and OD>4 blocking. Custom sizes available, MOQ 1 piece.
Core attributes
- Material
- BK7
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 55%
- Filter Type
- bandpass
- Cwl
- 352nm
- Coating
- hard-coat, iad-pvd
- Transmission bands
- VIS (400-700 nm), UV (<400 nm)
- MOQ
- 1 Piece
Product facts
Key attributes
- Material
- BK7
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 55%
- Filter Type
- bandpass
- Cwl
- 352nm
- Coating
- hard-coat, iad-pvd
- Transmission bands
- VIS (400-700 nm), UV (<400 nm)
- MOQ
- 1 Piece
Product description
This bandpass filter is designed for applications requiring precise wavelength selection, particularly at a center wavelength of 352 nm. With a transmittance of over 55% and a blocking depth of OD>4 from 200 to 1200 nm, it effectively isolates desired wavelengths while minimizing unwanted light. The filter is suitable for laser systems and is manufactured using advanced IAD hard coating techniques on BK7 glass, ensuring durability and reliability in various environments.
Key Features
- Transmittance of >55% for optimal light transmission.
- Blocking depth of OD>4 from 200-1200 nm to minimize interference.
- Custom sizes available, including D8, D10, D12, D12.5, D12.7, D15, D25, D25.4, or D50.
- Manufactured using IAD hard coating for enhanced durability.
- Minimum order quantity of just 1 piece for flexible sourcing.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Size | Custom |
| Thickness | Custom |
| Transmittance | 55% |
| Filter Type | bandpass |
| Cwl | 352nm |
| Coating | hard-coat, iad-pvd |
| Transmission bands | VIS (400-700 nm), UV (<400 nm) |
| MOQ | 1 Piece |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | >55% |
| Customized Support | OEM |
| Warranty | 3 Years |
| Item | Laser system |
| Process | IAD Hard Coating |
| Substrate | BK7 Glass, Colour Glass or Customer Design |
| Wavelength | 352nm |
| Fwhm | 12-/+2nm |
| Blocking | OD>4@200-1200 |
| Size(Mm) | D8,D10,D12,D12.5,D12.7,D15,D25,D25.4 or D50,Customer Design |
| Moq | 1 Piece |
FAQ
Can I get custom sizes?
Yes, custom sizes are available, including various diameters and designs.
What is the minimum order quantity?
The minimum order quantity is 1 piece.
