1 / 5Optical Filters
Custom Size BK7 Optical Filter
Bandpass optical filter with 45% transmittance, OD > 6 blocking, customizable substrates, and low MOQ for precise wavelength applications.
Core attributes
- Material
- BK7
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 45%
- Filter Type
- bandpass
- Coating
- hard-coat, iad-pvd
- Transmission bands
- VIS (400-700 nm)
- MOQ
- 1 Piece
Product facts
Key attributes
- Material
- BK7
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 45%
- Filter Type
- bandpass
- Coating
- hard-coat, iad-pvd
- Transmission bands
- VIS (400-700 nm)
- MOQ
- 1 Piece
Product description

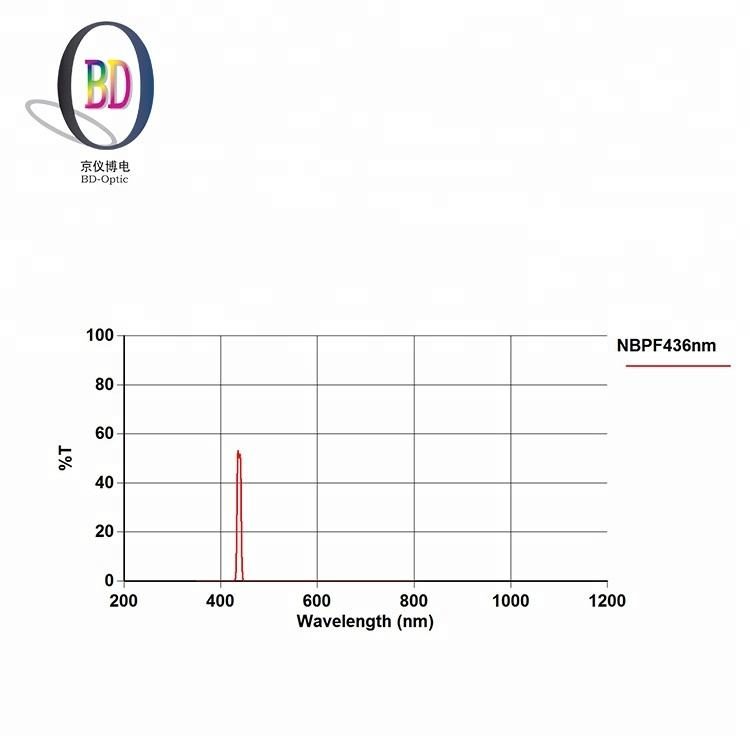

This bandpass optical filter is designed to enhance fluorescence microscopy and other applications requiring precise wavelength selection. With a central wavelength of 436 ± 2 nm and a FWHM of 10 ± 2 nm, it effectively transmits light while blocking unwanted wavelengths (OD > 6 from 200 to 1200 nm). The filter’s hard-coat and IAD-PVD coatings ensure durability and reliability in various environments, making it suitable for demanding applications.
Key Features
- Transmittance > 45% ensures effective light transmission for optimal imaging.
- OD > 6 blocking from 200-1200 nm prevents interference from unwanted wavelengths.
- Customizable substrate options (BK7 Glass, Colour Glass) for tailored solutions.
- Low MOQ of 1 piece allows for prototyping and flexible sourcing.
- Durable hard-coat and IAD-PVD coatings enhance environmental resistance.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Size | Custom |
| Thickness | Custom |
| Transmittance | 45% |
| Filter Type | bandpass |
| Coating | hard-coat, iad-pvd |
| Transmission bands | VIS (400-700 nm) |
| MOQ | 1 Piece |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | >45% |
| Customized Support | OEM |
| Warranty | 3 Years |
| Item | Optical filter |
| Process | IAD Hard Coating |
| Substrate | BK7 Glass, Colour Glass or Customer Design |
| Wavelength | 436+/-2nm |
| Fwhm | 10+/-2nm |

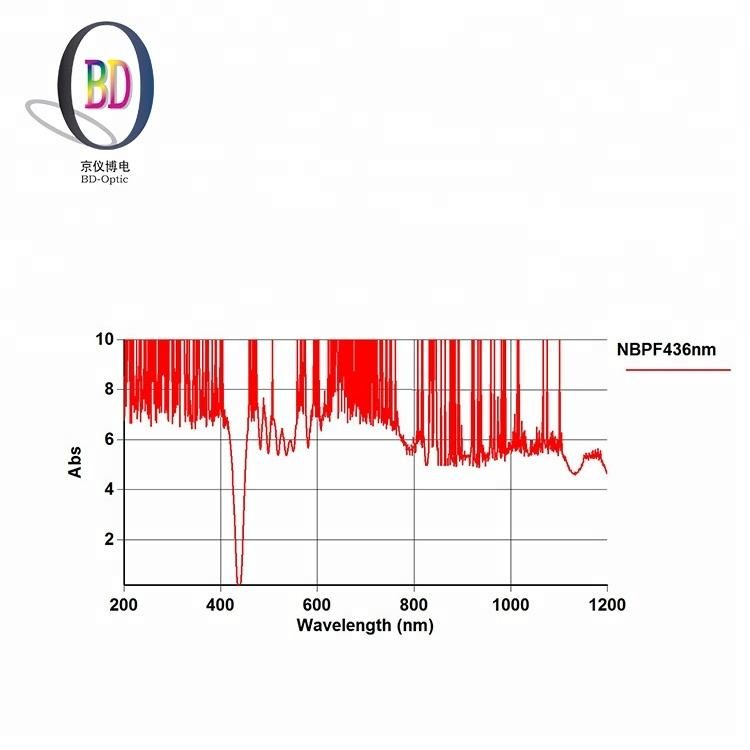

| Blocking | OD>6@200-1200 |
| Size(Mm) | 8*6mm/ Effective Diameter 5mm |
| Moq | 1 Piece |
FAQ
Can I get custom sizes?
Yes, substrate options include BK7 Glass, Colour Glass, or customer design.
What is the minimum order quantity?
The minimum order quantity is 1 piece.
