1 / 6Optical Filters

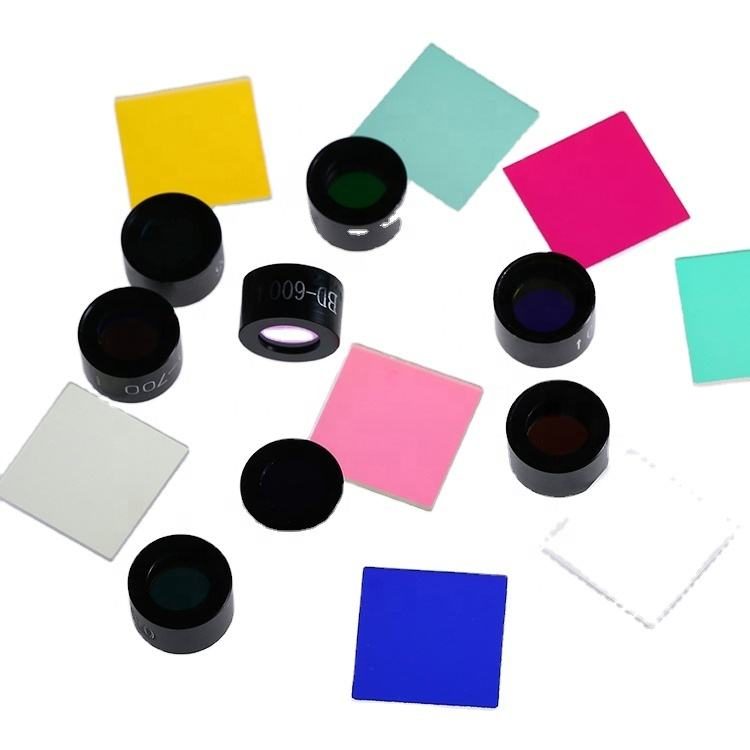

Custom Size BK7 Optical Filter
Explore the Biochemical Analyze Optical Filter with 90% transmittance, ideal for medical applications at 650 nm.
Core attributes
- Material
- BK7
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 650nm
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
- MOQ
- 1 Piece
Product facts
Key attributes
- Material
- BK7
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 650nm
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
- MOQ
- 1 Piece
Product description
The Biochemical Analyze Optical Filter is designed for medical applications, specifically targeting the 650 nm center wavelength. With a high transmittance of 90%, this bandpass filter effectively isolates the desired spectral band while offering excellent blocking capabilities (OD > 4 from 200 to 1200 nm). Its hard-coat finish ensures durability in various environments, making it suitable for rigorous laboratory conditions. Custom sizes are available to fit specific requirements, with a minimum order quantity of just one piece.
Key Features
- High transmittance of 90% ensures efficient light passage for accurate measurements.
- OD > 4 blocking from 200 to 1200 nm prevents unwanted light interference.
- Hard-coat coating enhances environmental durability for reliable performance.
- Custom sizes available, including D8 to D25.4, to meet specific application needs.
- Minimum order quantity of 1 piece allows for flexible procurement.
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Size | Custom |
| Thickness | Custom |
| Transmittance | 90% |
| Filter Type | bandpass |
| Cwl | 650nm |
| Coating | hard-coat |
| Transmission bands | VIS (400-700 nm) |
| MOQ | 1 Piece |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; >90% |
| Customized Support | OEM |
| Warranty | 3 Years |
| Item | Biochemical analyze optical filter |
| Process | IAD Hard Coating |
| Substrate | BK7 Glass, Colour Glass or Customer Design |
| Wavelength | NBPF650nm |

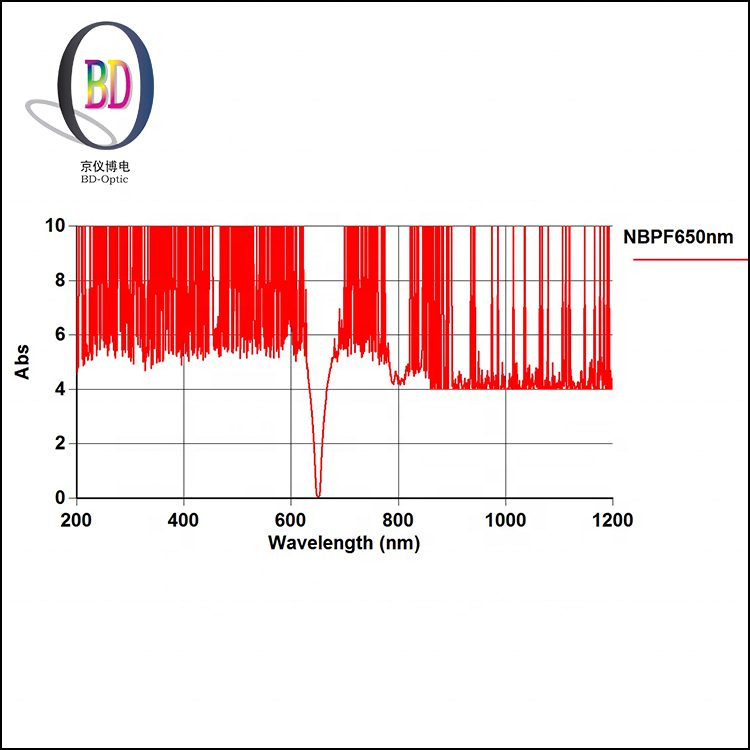

| Blocking | OD>4@200-1200 |
| Size(Mm) | D8,D10,D12,D12.5,D12.7,D15,D25,D25.4 or Customer Design |
| Moq | 1 Piece |
FAQ
Can I order custom sizes?
Yes, custom sizes are available, including D8, D10, D12, and others.
What is the minimum order quantity?
The minimum order quantity is 1 piece.
