1 / 6Optical Filters

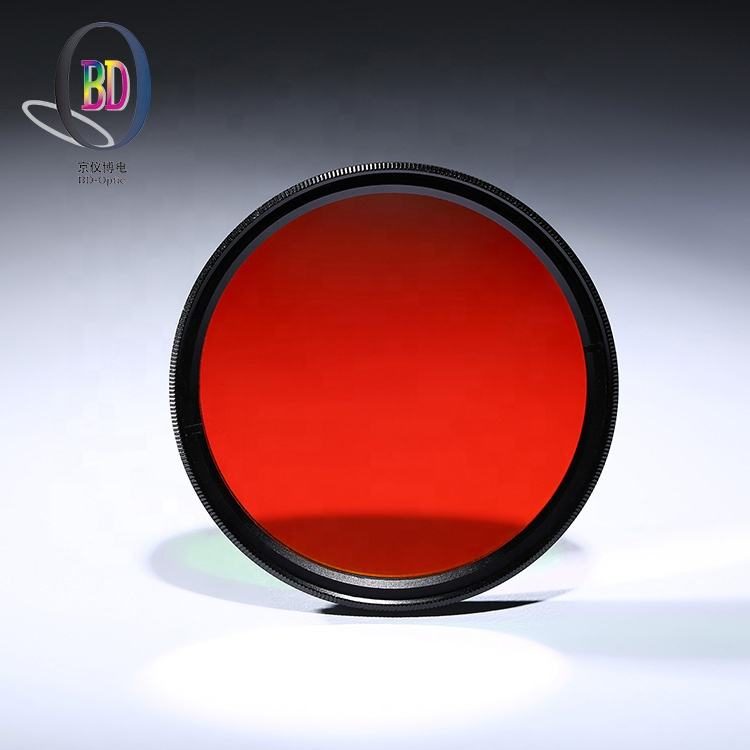

Custom Size BK7 Optical Filter
High-performance bandpass filter with >95% transmittance, customizable sizes, and durable BK7 glass for imaging applications.
Core attributes
- Material
- BK7
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 95%
- Filter Type
- bandpass
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm), UV (<400 nm)
- MOQ
- 1 Piece
Product facts
Key attributes
- Material
- BK7
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 95%
- Filter Type
- bandpass
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm), UV (<400 nm)
- MOQ
- 1 Piece
Product description
This bandpass filter is designed for applications requiring high transmittance and effective wavelength selection in the range of 400-700 nm. With a transmittance of over 95% and a blocking depth of OD>4 from 200-1200 nm, it is ideal for fluorescence microscopy and imaging systems. The filter is made from durable BK7 glass and features a hard-coat for environmental durability, ensuring consistent performance across various conditions. Custom sizes are available to meet specific project needs.
Key Features
- Transmittance >95% for optimal light throughput.
- Blocking depth of OD>4 from 200-1200 nm prevents unwanted light interference.
- Custom sizes available (M49, M52, M55, M58, M62, M67) for tailored applications.
- Durable hard-coat ensures longevity and resistance to environmental factors.
- Minimum order quantity of just 1 piece for prototyping and small-scale needs.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Size | Custom |
| Thickness | Custom |
| Transmittance | 95% |
| Filter Type | bandpass |
| Coating | hard-coat |
| Transmission bands | VIS (400-700 nm), UV (<400 nm) |
| MOQ | 1 Piece |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | >95% |
| Customized Support | OEM |
| Warranty | 3 Years |
| Item | CCD Gel Image System Filters |
| Process | IAD Hard Coating |
| Substrate | BK7 Glass or Customer Design |
| Wavelength | 620nm |
| Fwhm | 40~60nm |
| Blocking | OD>4@200-1200 |
| Size(Mm) | M49, M52, M55,M58, M62,M67 OR Custom |
| Moq | 1 Piece |
FAQ
Can I get custom sizes for this filter?
Yes, custom sizes are available including M49, M52, M55, M58, M62, M67.
What is the minimum order quantity?
The minimum order quantity is 1 piece.
