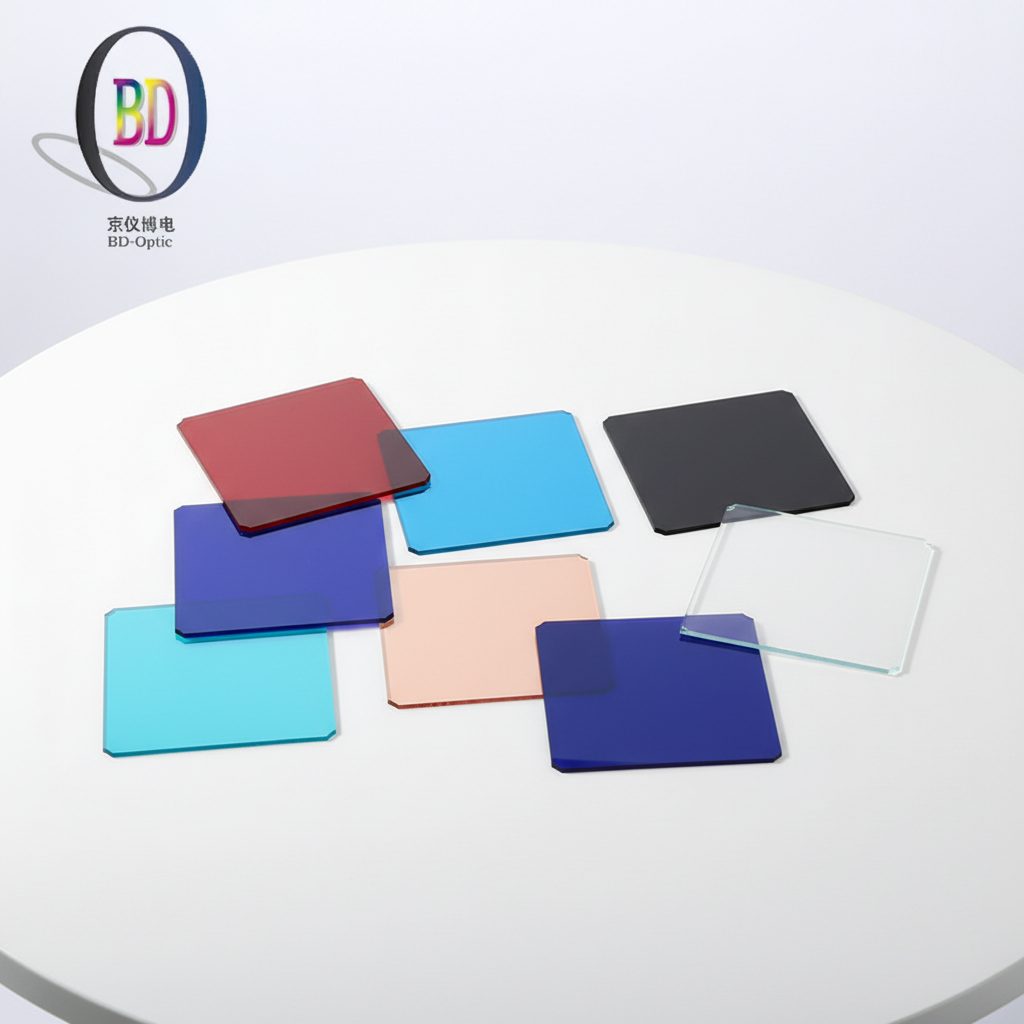

Custom Size BK7 Optical Filter

Product description

The 640nm Long Pass Dichroic Filter is designed for applications requiring high transmittance and effective blocking of unwanted wavelengths. With a transmittance of 80% and over 90% from 415-1200 nm, this filter is ideal for fluorescence microscopy and face identification. The hard-coat and IAD-PVD coatings ensure durability and reliability in various environments, making it suitable for demanding applications.

Key Features

Transmittance of 80%; >90% from 415-1200 nm enhances signal clarity.
OD4 blocking from 200-615 nm prevents interference from unwanted wavelengths.
Custom sizes available including D8, D10, D12, and more for versatile applications.
Durable hard-coat and IAD-PVD coatings ensure long-lasting performance.
Low MOQ of 1 piece allows for prototyping and small-scale projects.

Specification Summary

Item	Value
Material	BK7
Size	Custom
Thickness	Custom
Transmittance	80%
Filter Type	dichroic
Cwl	640nm
Coating	hard-coat, iad-pvd
Transmission bands	VIS (400-700 nm)
MOQ	1 Piece

Full Specifications

Parameter	Value
Transmittance	80%; >90% @415-1200
Customized Support	OEM
Warranty	1 years
Item	Long Pass Filter
Process	IAD Hard Coating
Substrate	BK7,K9, Fused Silicon
Wavelength	640nm
Blocking	OD4 @200-615
Size(Mm)	D8,D10,D12,D12.5,D12.7,D15,D25,D25.4 or Customer Design
Moq	1 Piece
Use	Face Identification,and so on

FAQ

Can I get custom sizes?

Yes, custom sizes are available including D8, D10, D12, D12.5, D12.7, D15, D25, and D25.4.

What is the minimum order quantity?

The minimum order quantity is 1 piece.
