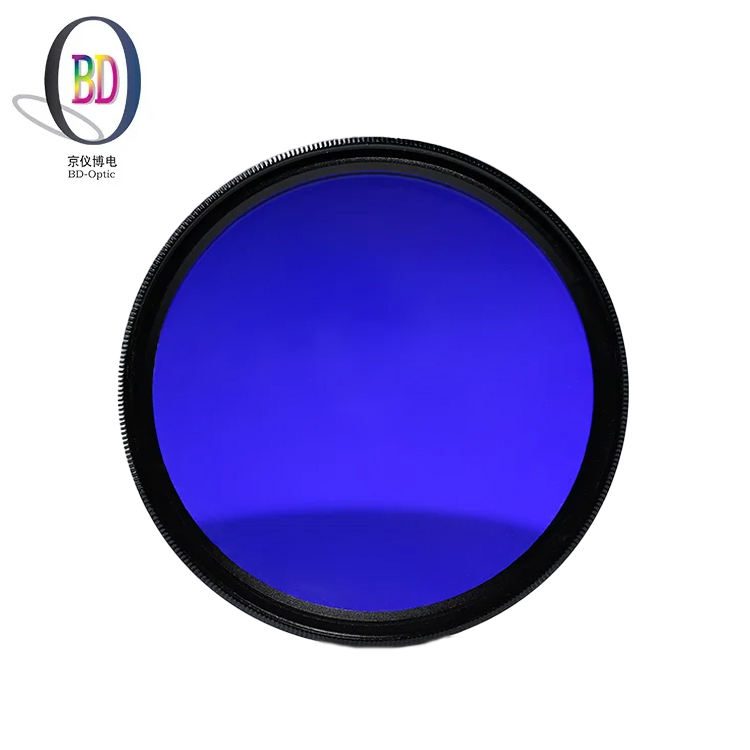

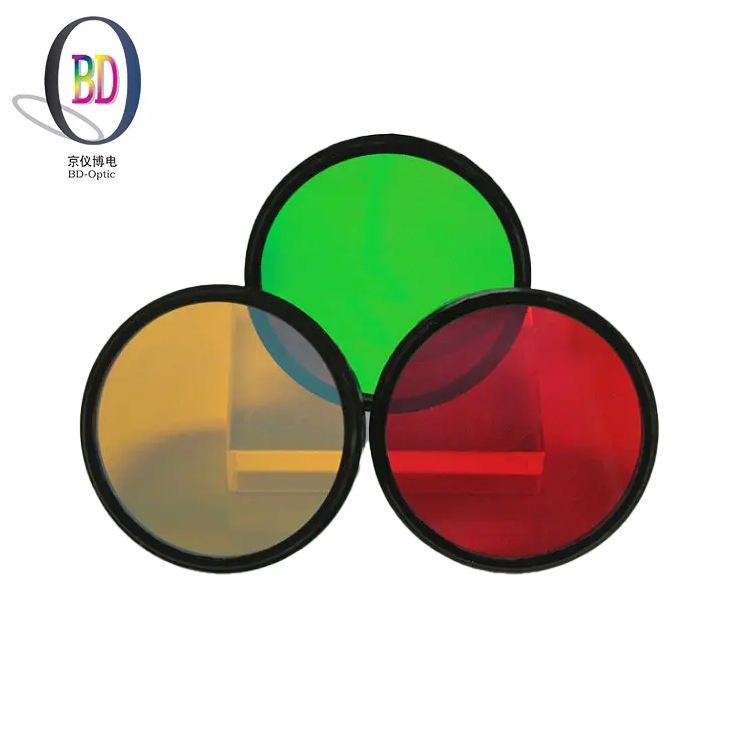

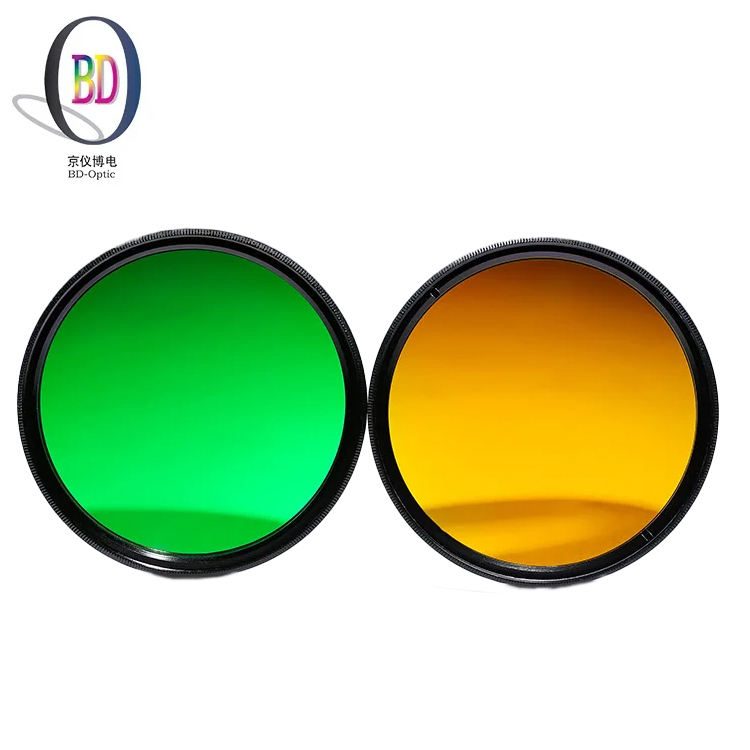

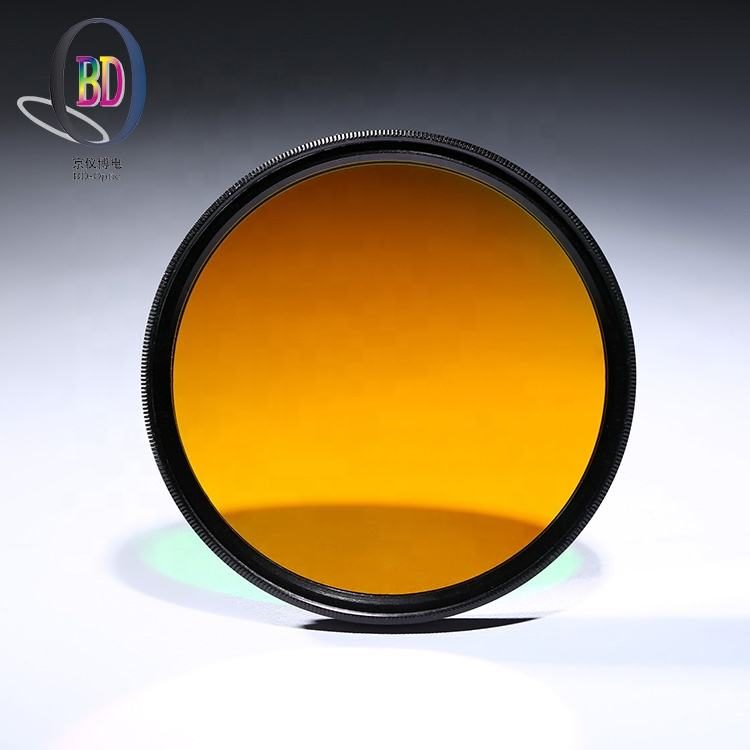

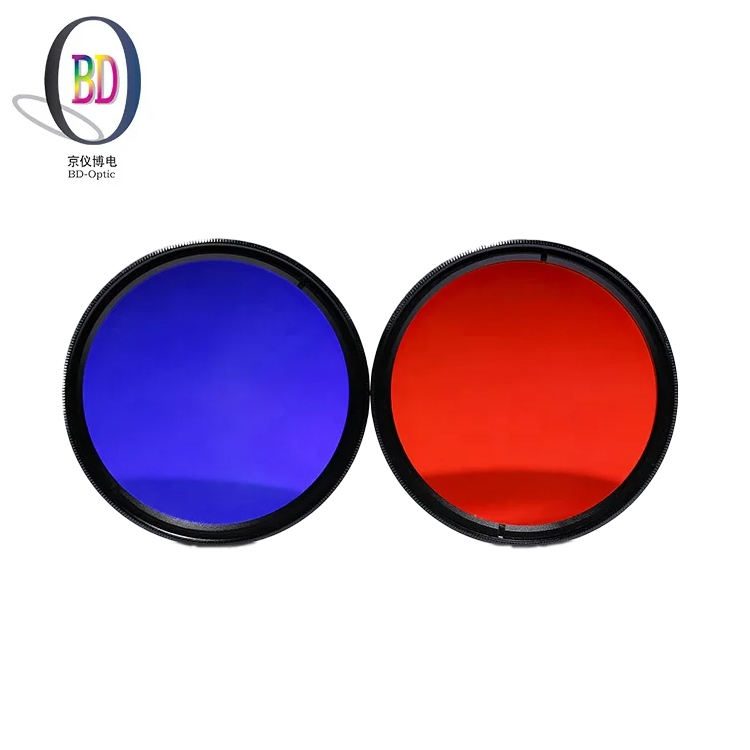

Custom Size BK7 Optical Filter
High-performance CCD Gel Image System Filters with >95% transmittance and customizable sizes for fluorescence microscopy applications.
Core attributes
- Material
- BK7
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 95%
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
- MOQ
- 1 Piece
Product facts
Key attributes
- Material
- BK7
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 95%
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
- MOQ
- 1 Piece
Product description
Designed for applications in fluorescence microscopy and imaging systems, these CCD Gel Image System Filters provide exceptional transmittance of over 95% within the 400-700 nm range. With a center wavelength of 460 nm and a full width at half maximum (FWHM) of 40-60 nm, they ensure optimal performance for various light sources. The hard-coat finish enhances durability and environmental resistance, making them suitable for rigorous laboratory conditions.
Key Features
- Transmittance >95% for high light throughput.
- FWHM of 40-60 nm ensures precise wavelength selection.
- Blocking depth of OD>4 at 200-1200 nm minimizes unwanted light interference.
- Available in multiple sizes (M49, M52, M55, M58, M62, M67) for versatile applications.
- OEM support for custom substrate, size, and surface quality.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Size | Custom |
| Thickness | Custom |
| Transmittance | 95% |
| Coating | hard-coat |
| Transmission bands | VIS (400-700 nm) |
| MOQ | 1 Piece |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | >95% |
| Customized Support | OEM |
| Warranty | 3 Years |
| Item | CCD Gel Image System Filters |
| Process | IAD Hard Coating |
| Substrate | BK7 Glass |
| Wavelength | 460nm |
| Fwhm | 40~60nm |

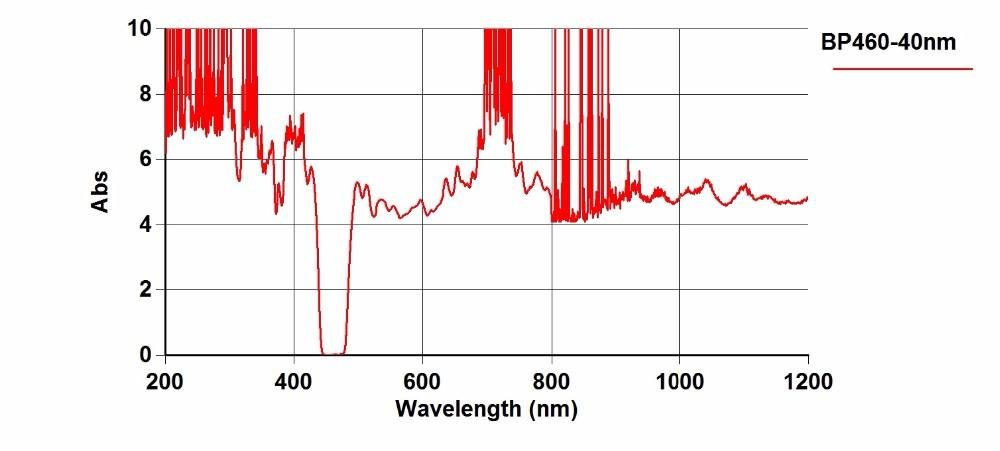

| Blocking | OD>4@200-1200 |
| Size(Mm) | M49, M52, M55,M58, M62,M67 |
| Moq | 1 Piece |
| Oem | Support Substrate,Size,Surface Quality |
FAQ
What is the minimum order quantity?
The minimum order quantity is 1 piece.
Can I get custom sizes?
Yes, OEM support is available for custom sizes.
