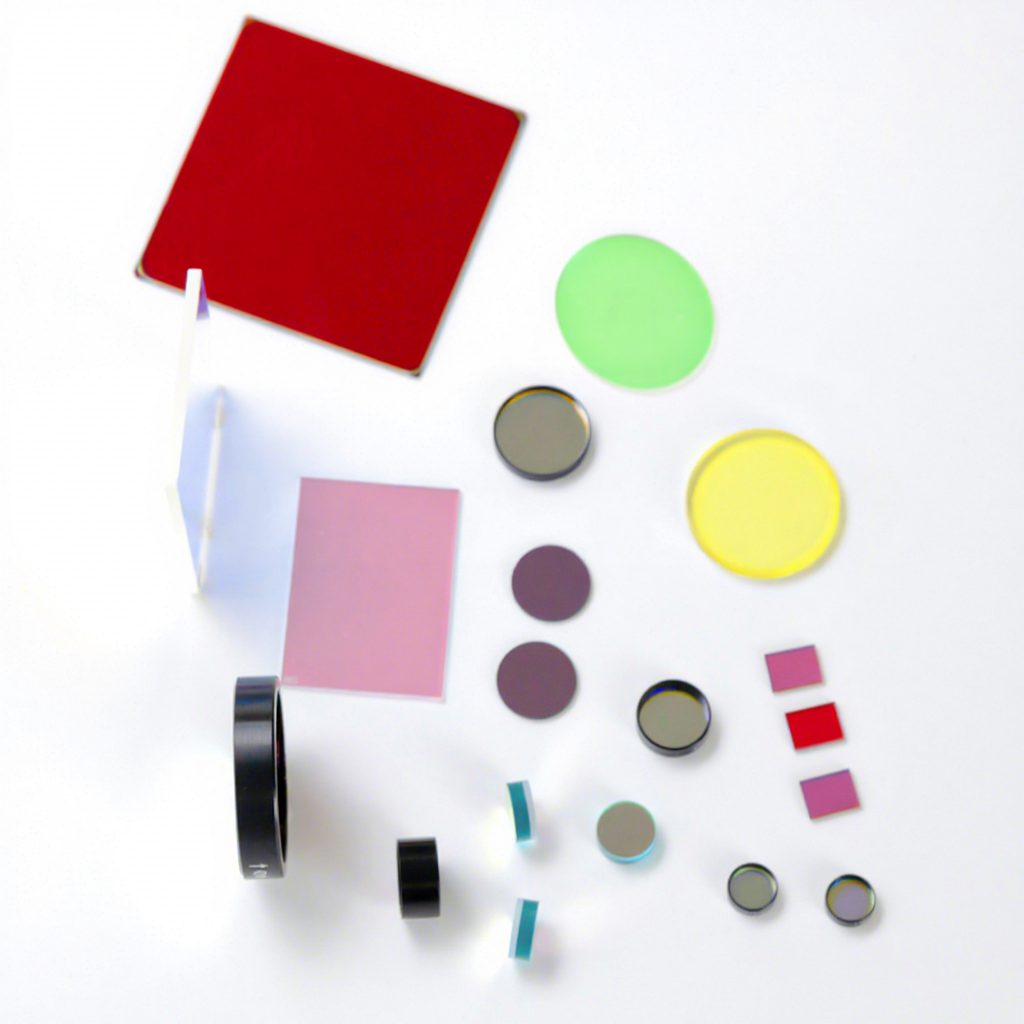

Custom Size BK7 Optical Filter

Product description

This bandpass filter is designed for applications requiring high transmittance in the 0.7-1.7 μm range, with a center wavelength of 760 nm and a full width at half maximum (FWHM) of 20 nm. It effectively blocks unwanted wavelengths with an optical density (OD) of 4 from 300 to 1200 nm, ensuring superior performance in fluorescence microscopy and other optical applications. The filter is coated with IAD-PVD for enhanced durability and reliability.

Key Features

85% transmittance ensures maximum light throughput for optimal imaging.
OD4 blocking from 300-1200 nm prevents interference from unwanted wavelengths.
Customizable angle of incidence allows for tailored applications.
Available with OEM, ODM, and OBM support for unique project needs.
Durable IAD-PVD coating enhances environmental resistance.

Specification Summary

Item	Value
Material	BK7
Size	Custom
Thickness	Custom
Transmittance	85%
Filter Type	bandpass
Cwl	760nm
Coating	iad-pvd
Transmission bands	NIR (0.7-1.7 μm)

Full Specifications

Parameter	Value
Transmittance	85%
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Aoi	Can be customized
Shipment	Air/Express
Cwl	760nm
Fwhm	20nm
Blocking	OD4@300-1200nm
Angle Of Incidence	0 degree

FAQ

Can I get custom sizes?

Yes, the filter can be customized to meet specific size requirements.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing for flexible ordering.
