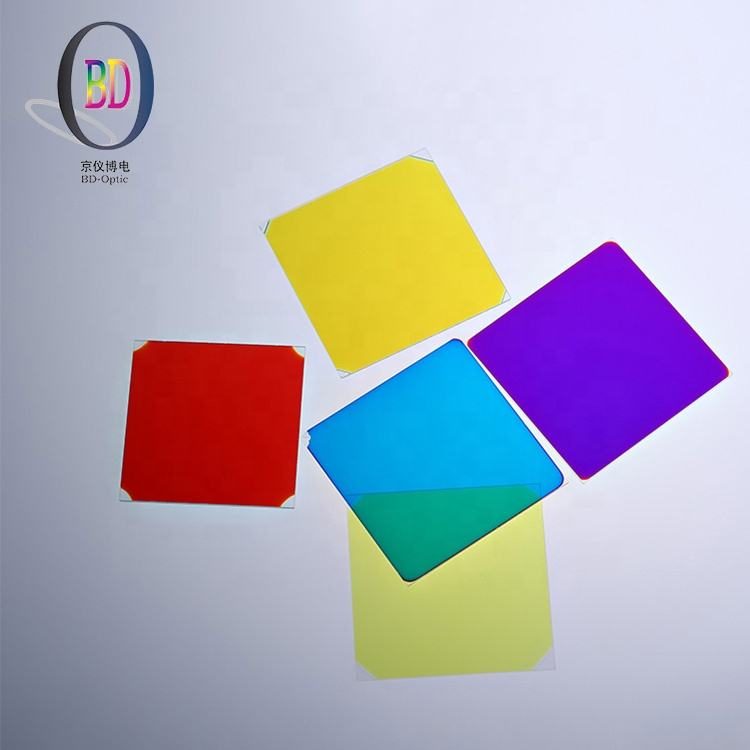

Custom Size BK7 Optical Filter
Long Pass Filter with >90% transmittance, OD6 blocking, custom sizes, and durable IAD hard coating. MOQ: 1 piece.
Core attributes
- Material
- BK7
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 90%
- Filter Type
- longpass
- Cwl
- 555nm
- Transmission bands
- VIS (400-700 nm)
- MOQ
- 1 Piece
Product facts
Key attributes
- Material
- BK7
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 90%
- Filter Type
- longpass
- Cwl
- 555nm
- Transmission bands
- VIS (400-700 nm)
- MOQ
- 1 Piece
Product description
This Long Pass Filter is designed for applications requiring effective transmission of wavelengths above 555 nm. With a high transmittance of over 90% from 560 nm to 1200 nm and excellent blocking of wavelengths from 200 nm to 535 nm (OD6), it is ideal for fluorescence microscopy and various optical applications. The filter is made from BK7 glass and features IAD hard coating for enhanced durability, making it suitable for demanding environments. Custom sizes are available to fit specific needs.
Key Features
- High transmittance >90% from 560-1200 nm for optimal light throughput.
- OD6 blocking from 200-535 nm ensures minimal interference from unwanted wavelengths.
- Custom sizes (D8 to D25.4 mm) available for tailored applications.
- Durable IAD hard coating enhances environmental resistance.
- Low minimum order quantity of 1 piece for flexible procurement.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Size | Custom |
| Thickness | Custom |
| Transmittance | 90% |
| Filter Type | longpass |
| Cwl | 555nm |
| Transmission bands | VIS (400-700 nm) |
| MOQ | 1 Piece |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM |
| Warranty | 3 Years |
| Item | Long Pass Filter |
| Process | IAD Hard Coating |
| Substrate | BK7,K9, Fused Silicon |
| Wavelength | 555nm |
| Transmittance | >90% @560-1200 |
| Blocking | OD6 @200-535 |
| Size(Mm) | D8,D10,D12,D12.5,D12.7,D15,D25,D25.4 or Customer Design |
| Moq | 1 Piece |
FAQ
Can I order custom sizes?
Yes, custom sizes are available, including diameters from D8 to D25.4 mm.
What is the minimum order quantity?
The minimum order quantity is 1 piece.
