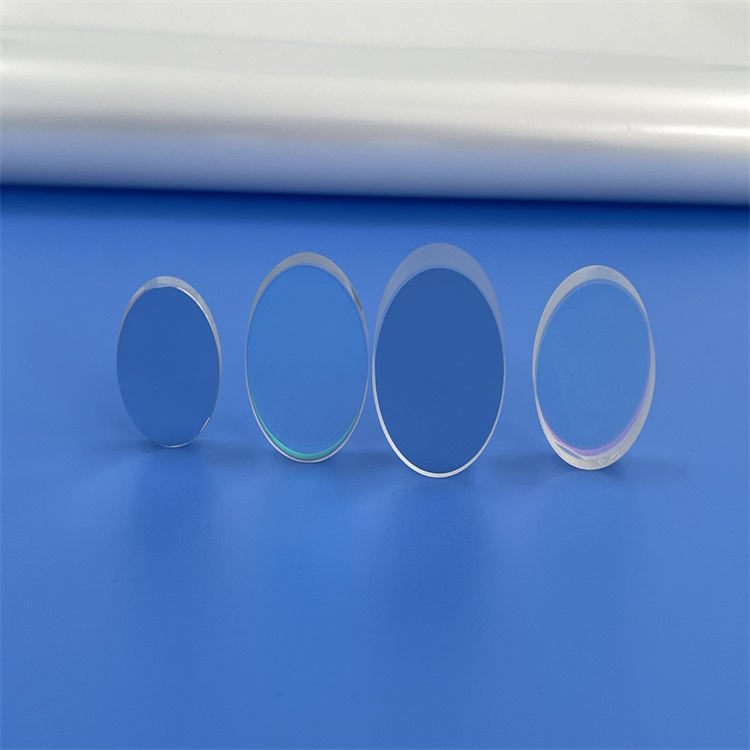

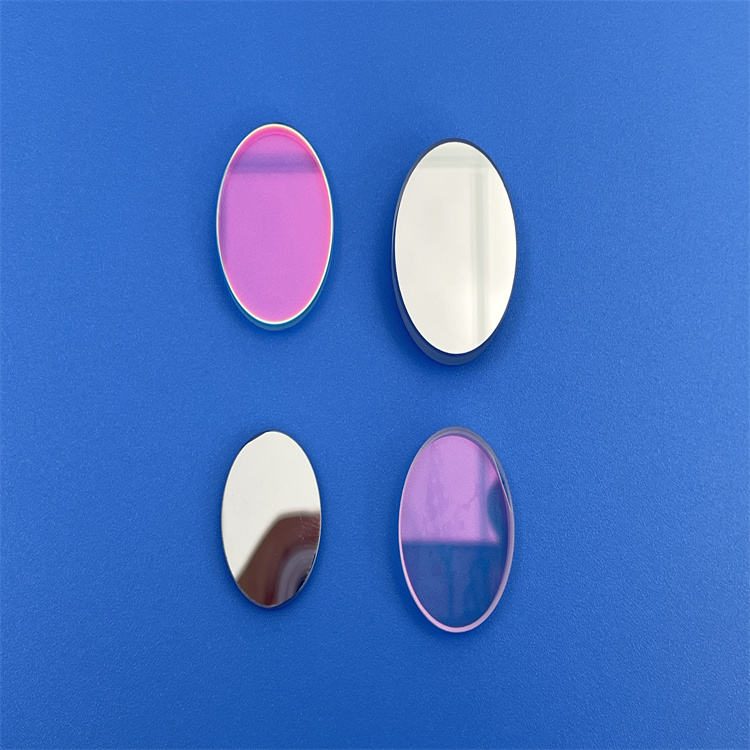

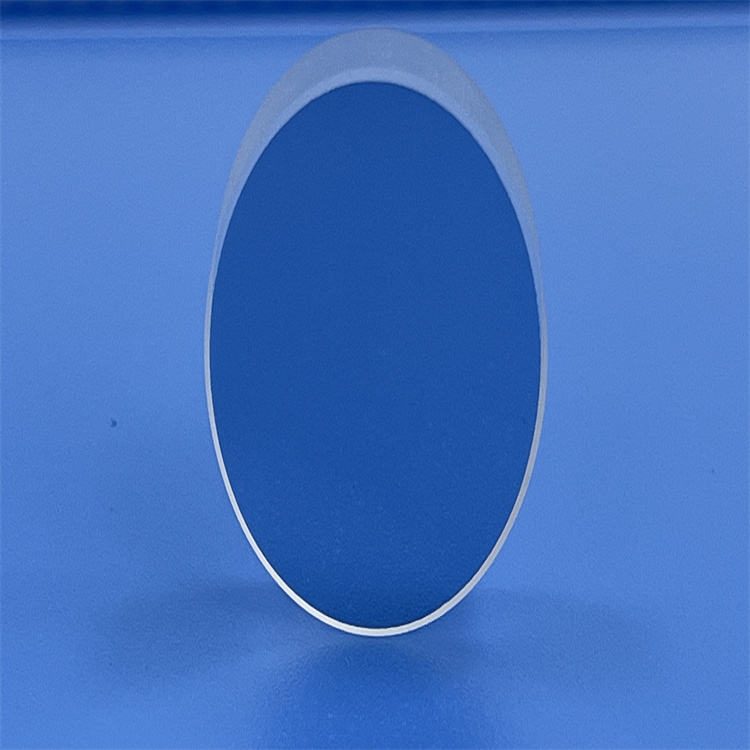

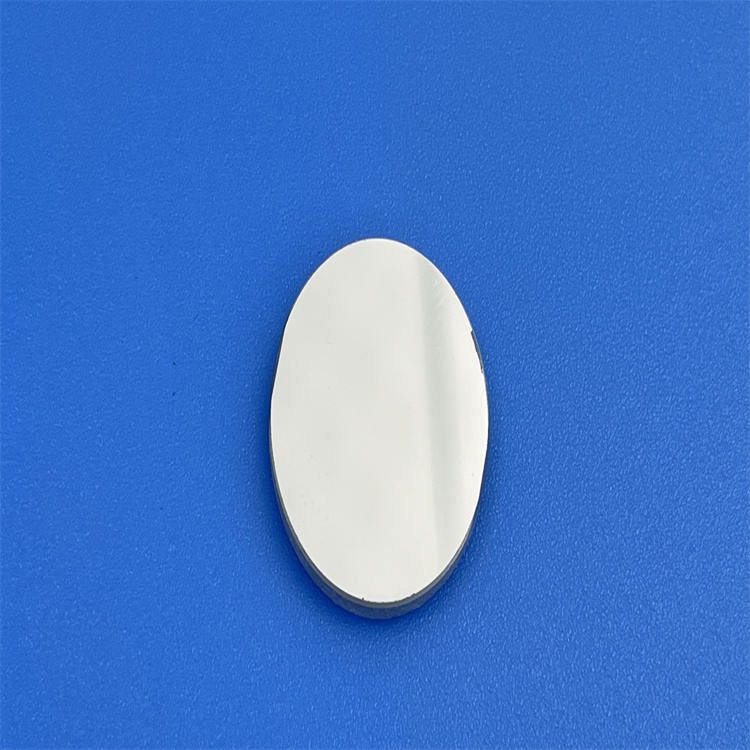

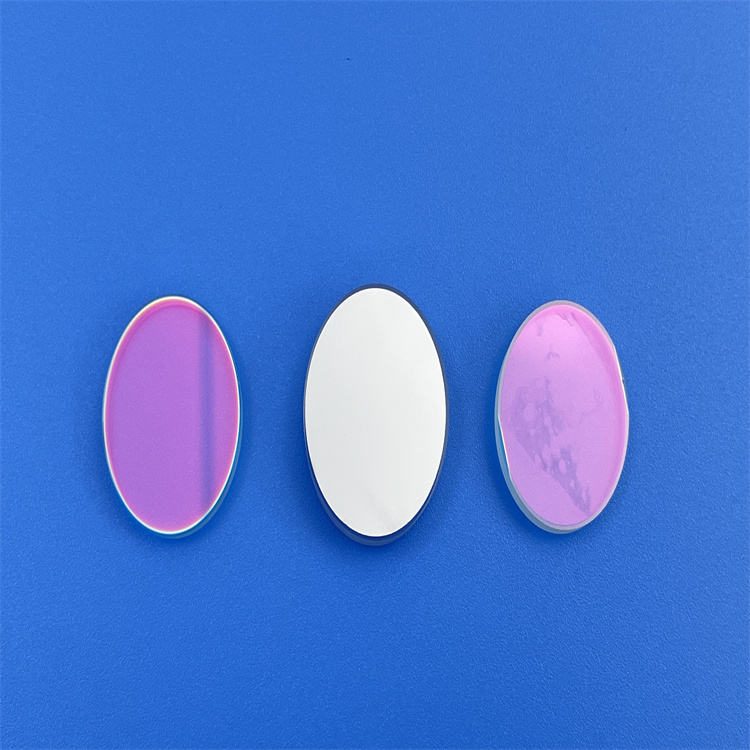

0.5 mm BK7 Optical Mirror

Product description

This BK7 optical mirror is designed for applications requiring high surface quality and precise optical performance within the 400-700 nm wavelength range. With a surface quality of 40/20 and a flatness of L/4, it minimizes wavefront distortion, making it suitable for laser, LIDAR, and machine-vision systems. Custom focal lengths and diameters ensure adaptability to various setups.

Key Features

Surface quality of 40/20 ensures minimal distortion for high-precision applications.
Flatness specification of L/4 supports optimal wavefront quality.
Customizable focal lengths (150mm, 200mm, 27mm, etc.) to meet specific project needs.
Diameter tolerance of ±0.1mm for reliable batch consistency.
Clear aperture greater than 90% maximizes light transmission efficiency.

Specification Summary

Item	Value
Material	BK7
Size	0.5 mm
Thickness	Custom
Surface Quality	40/20
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	optical mirror
Customized Support	OEM, ODM
Warranty	3 Years
Weight	0.02
Focal Length	150mm 200mm 27mm etc. as requirements
Wavelength	546.1nm or as request
Diameter Tolerance	±0.1mm
Clear Aperture	> 90%
Flatness	L/4

FAQ

Can I get custom sizes?

Yes, custom focal lengths and diameters are available to meet specific requirements.

What is the MOQ for this mirror?

The minimum order quantity (MOQ) is not specified, allowing for flexible procurement.
