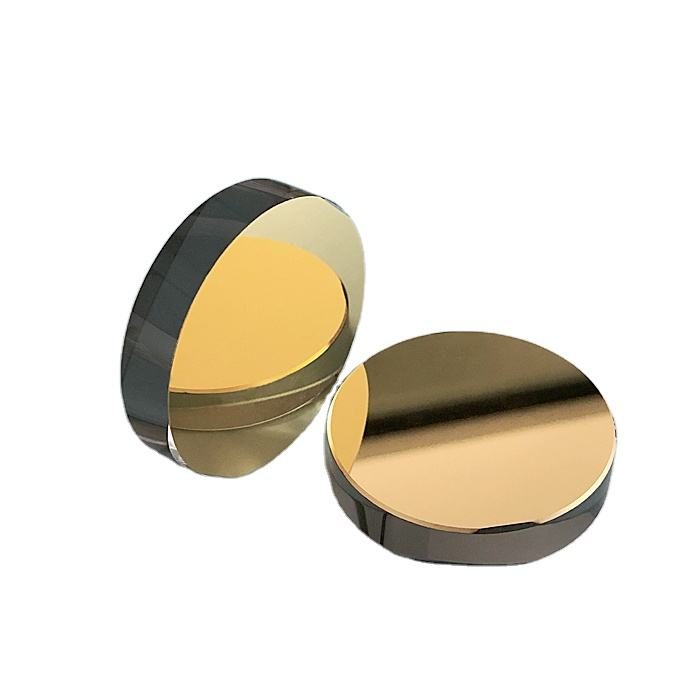

1 mm BK7 Optical Mirror
BK7 dielectric HR mirrors for laser applications with customizable sizes and high surface quality.
Core attributes
- Material
- BK7
- Size
- 1 mm
- Thickness
- Custom
- Surface Quality
- 20/10
- Coating
- dielectric HR
Product facts
Key attributes
- Material
- BK7
- Size
- 1 mm
- Thickness
- Custom
- Surface Quality
- 20/10
- Coating
- dielectric HR
Product description
This BK7 dielectric high-reflective mirror is designed for laser applications, ensuring superior performance with a surface quality of 20/10. With a flatness of 1/4 Lambda at 632.8 nm, it minimizes wavefront distortion, making it ideal for precision optical systems. The mirror is customizable in size, accommodating diameters from 1.0 mm to 500.0 mm, providing flexibility for various applications.
Key Features
- Surface quality of 20/10 ensures minimal scattering and high clarity.
- Flatness of 1/4 Lambda @ 632.8 nm enhances wavefront quality for laser applications.
- Dielectric HR coating provides high reflectance and durability against environmental factors.
- Custom sizes available from 1.0 mm to 500.0 mm for tailored solutions.
- OEM support ensures reliable sourcing for production needs.
Applications
Laser
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Size | 1 mm |
| Thickness | Custom |
| Surface Quality | 20/10 |
| Coating | dielectric HR |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM |
| Warranty | 6 months |
| Weight | customized |
| Diameter Tolerance | +/-0.05mm |
| Flatness | 1/4 Lambda @632.8nm |
| Use | Optical |
| Structure | mirror |
FAQ
What is the tolerance for diameter?
The diameter tolerance is +/-0.05 mm.
Is custom sizing available?
Yes, custom sizes range from 1.0 mm to 500.0 mm.
