1 / 6Optical Mirrors

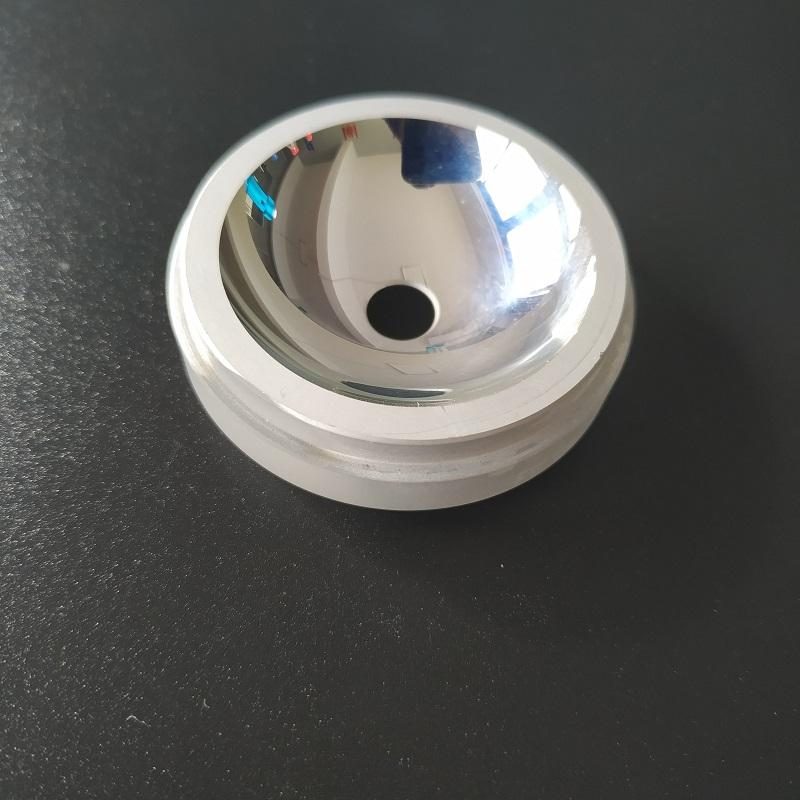

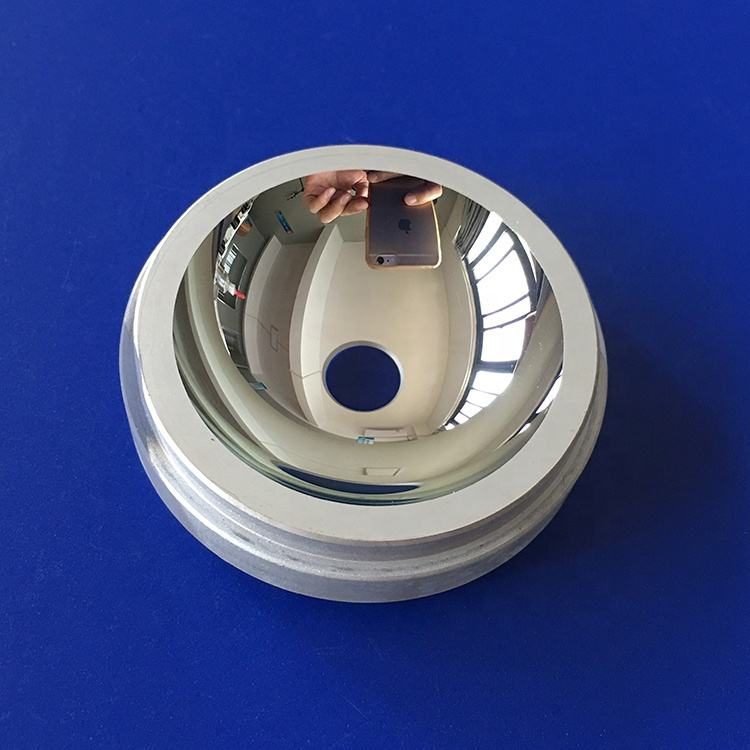

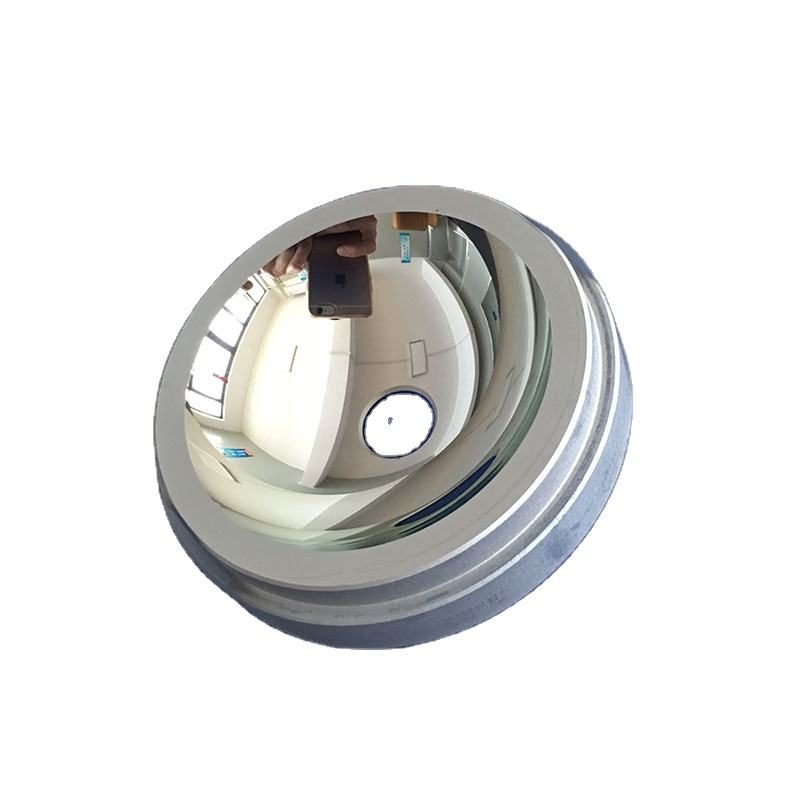

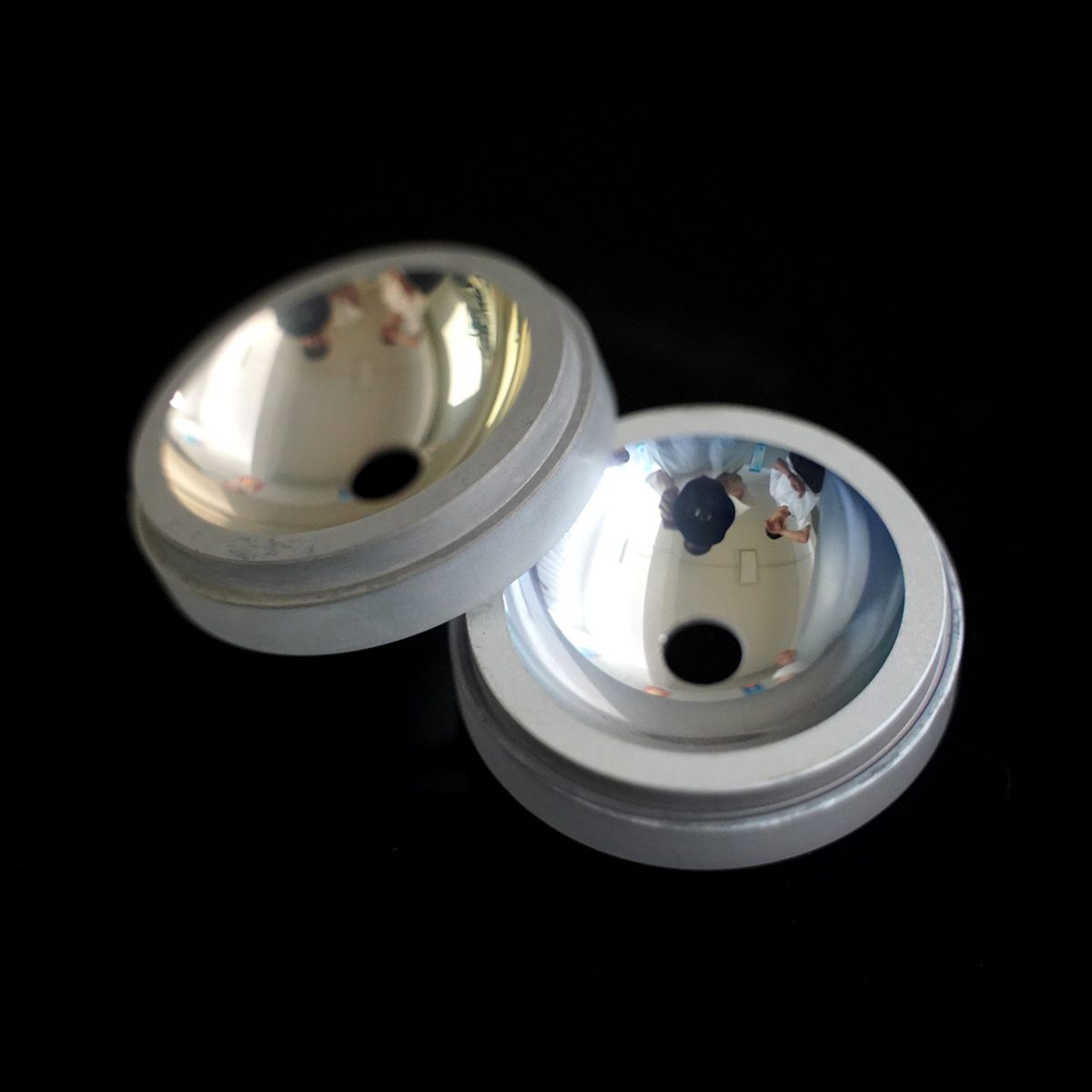

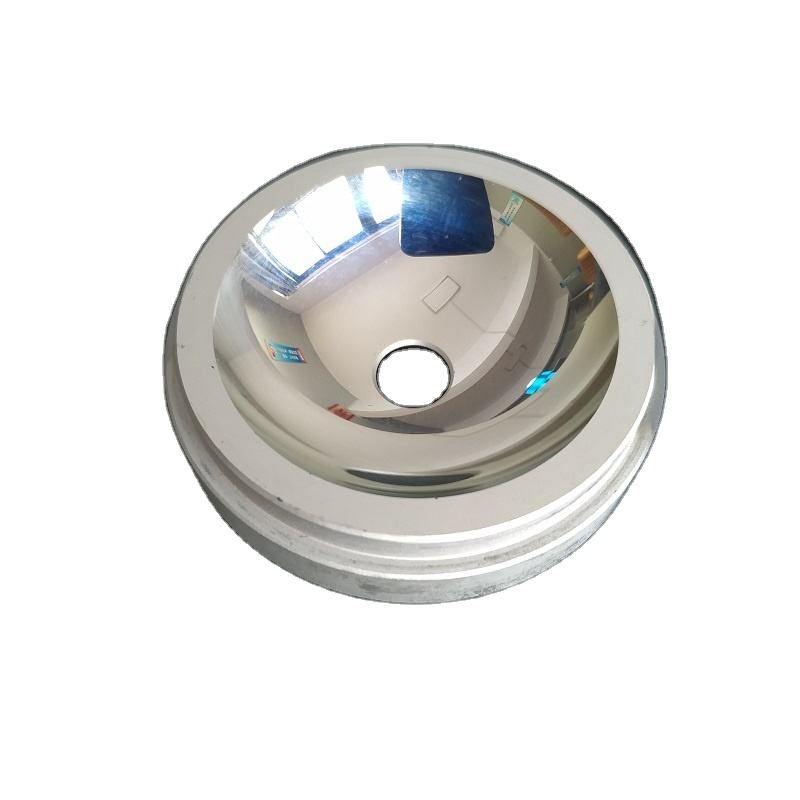

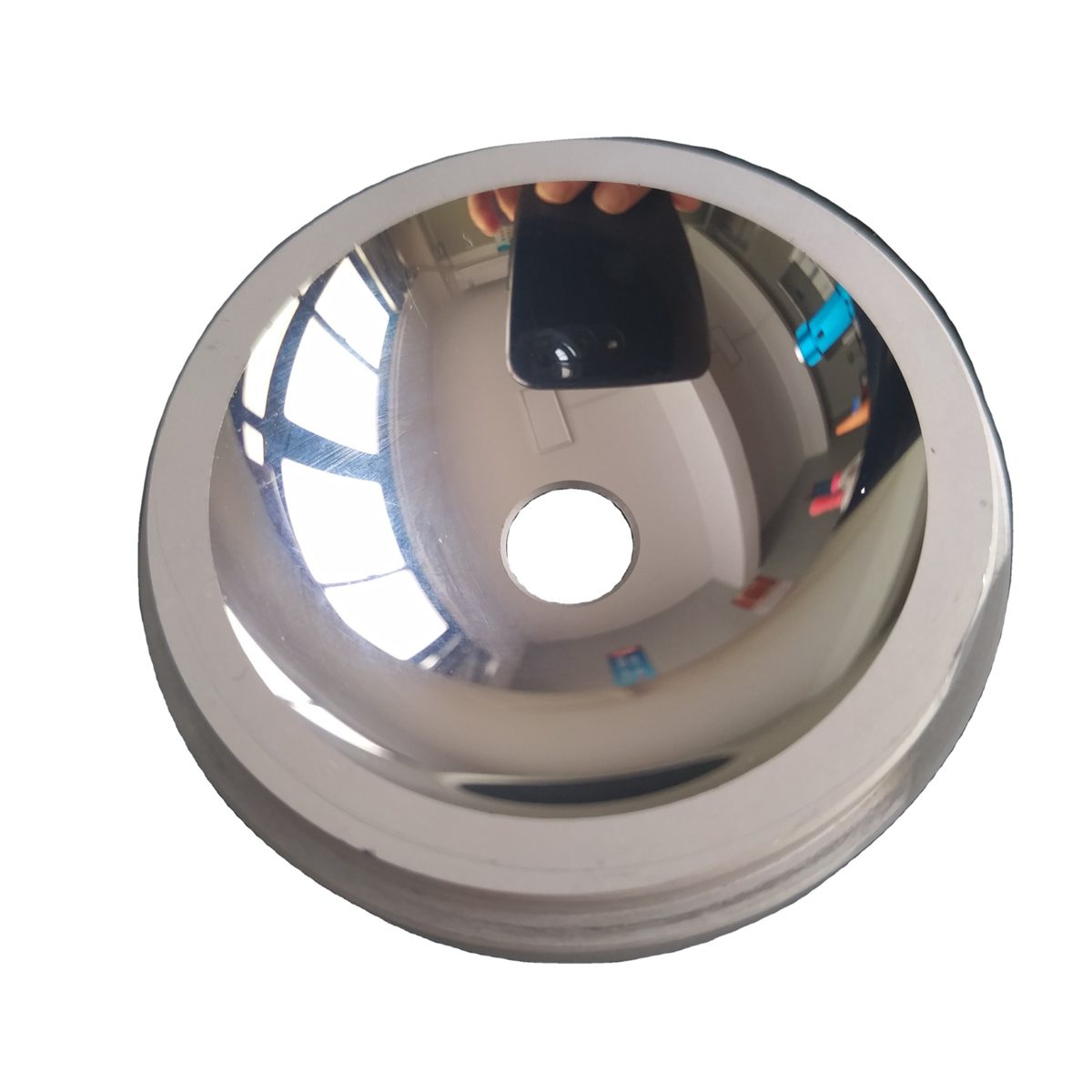

47.5 mm BK7 Optical Mirror
BK7 reflector mirror, 200-1000 nm range, 60/40 surface quality, OEM/ODM customizable, MOQ 10 pcs.
Core attributes
- Material
- BK7
- Size
- 47.5 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
- MOQ
- 10pcs
Product facts
Key attributes
- Material
- BK7
- Size
- 47.5 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
- MOQ
- 10pcs
Product description
This BK7 reflector mirror is designed for applications requiring high performance across a broad wavelength range of 200-1000 nm, with specific bands of 0.7-1.7 μm, 400-700 nm, and <400 nm. Its surface quality of 60/40 ensures adequate reflectivity for various optical systems. The mirror is suitable for R&D and production environments where precision and reliability are critical, offering a robust solution for laser, LIDAR, and machine vision applications.
Key Features
- Broad wavelength range (200-1000 nm) for versatile application fit.
- Surface quality of 60/40 ensures reliable performance in optical systems.
- Diameter tolerance within 0.01 mm for precise integration.
- Dimension tolerance within 0.05 mm for consistent batch quality.
- Customizable options available through OEM and ODM support.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Size | 47.5 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
| MOQ | 10pcs |
Full Specifications
| Parameter | Value |
|---|---|
| Type | reflector |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Weight | 0.05kg(0.11lb) |
| Focal Length | 10~100MM |
| Diameter Tolerance | within 0.01mm |
| Moq | 10pcs |
| Dimension Tolerance | within 0.05mm |
| Wavelength | 200-1000nm |
FAQ
What is the minimum order quantity?
The minimum order quantity is 10 pcs.
Can I get custom sizes?
Yes, customizable support is available through OEM and ODM.
