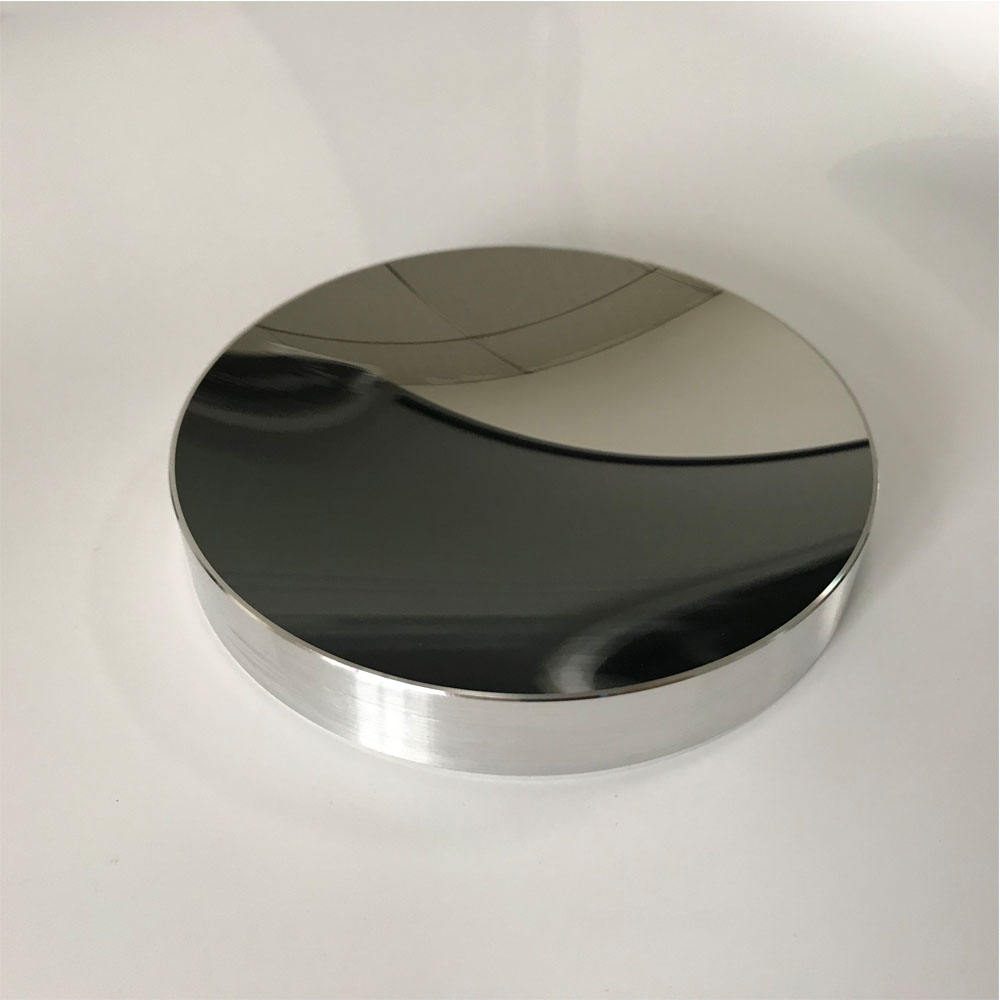

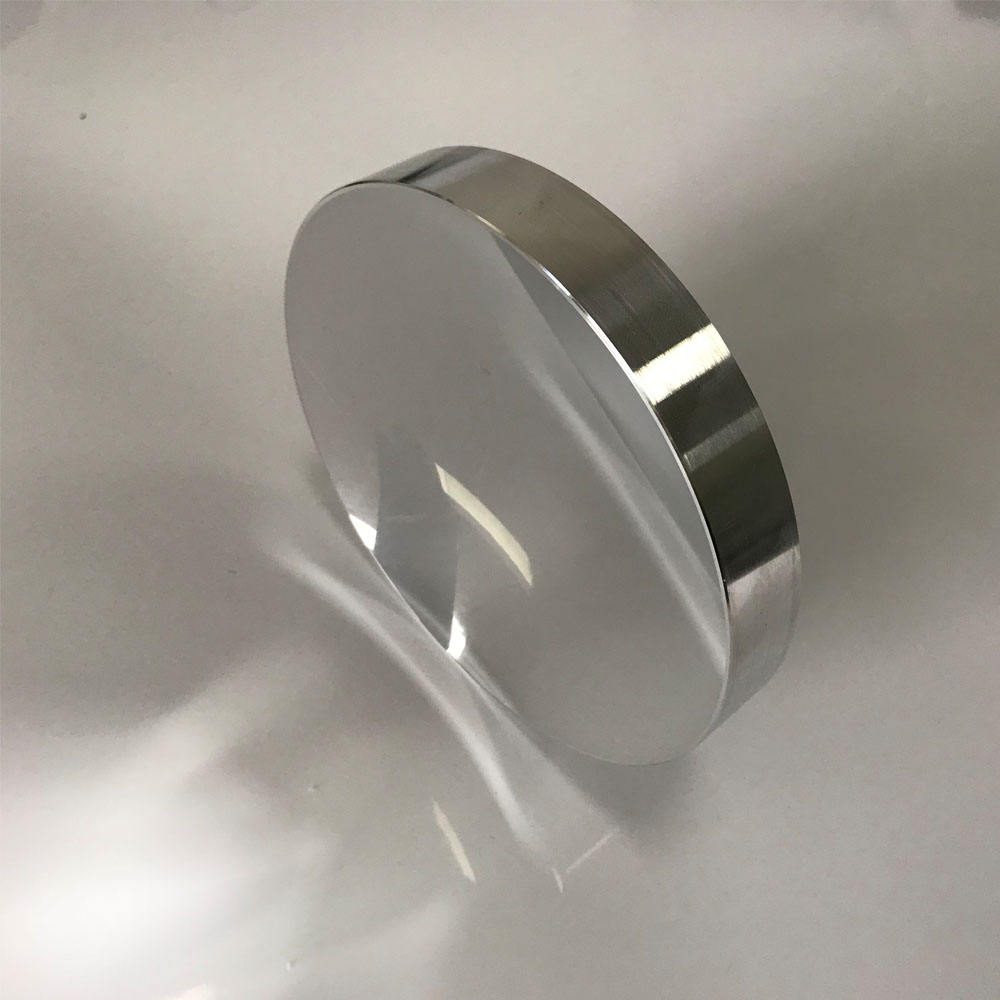

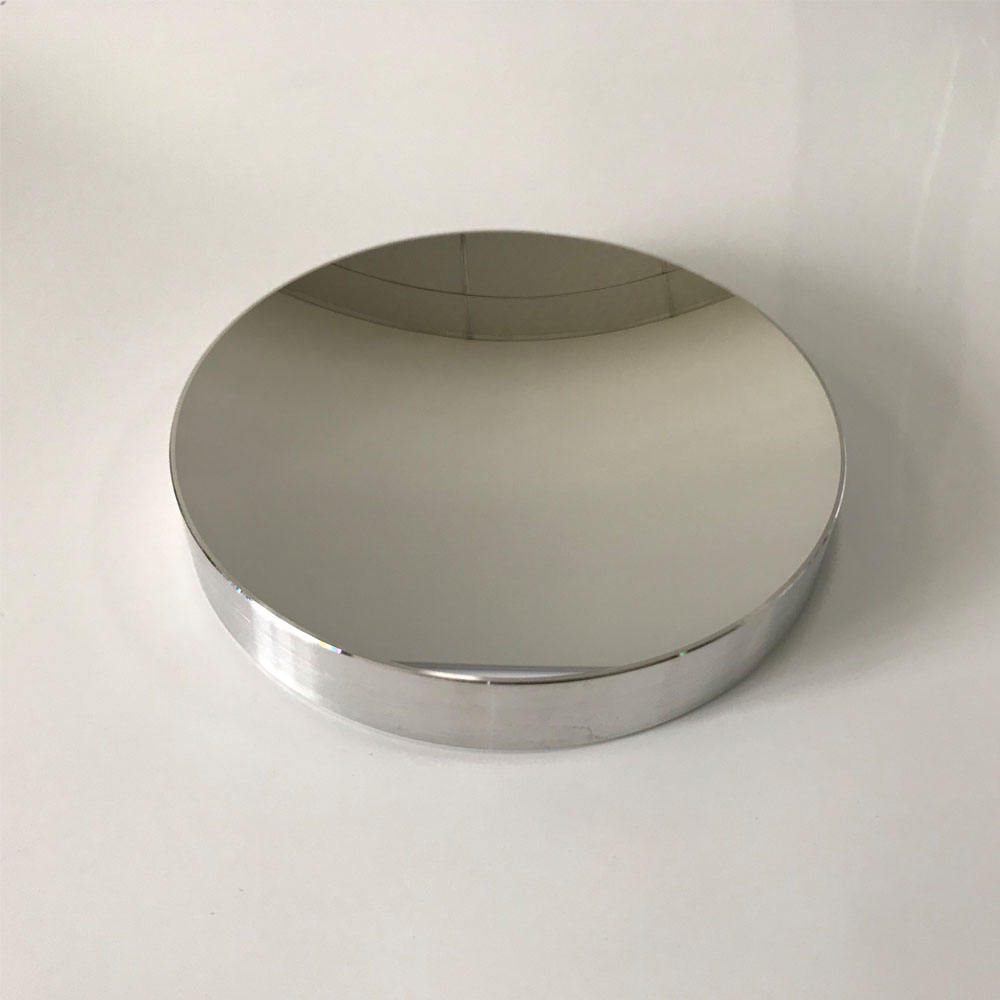

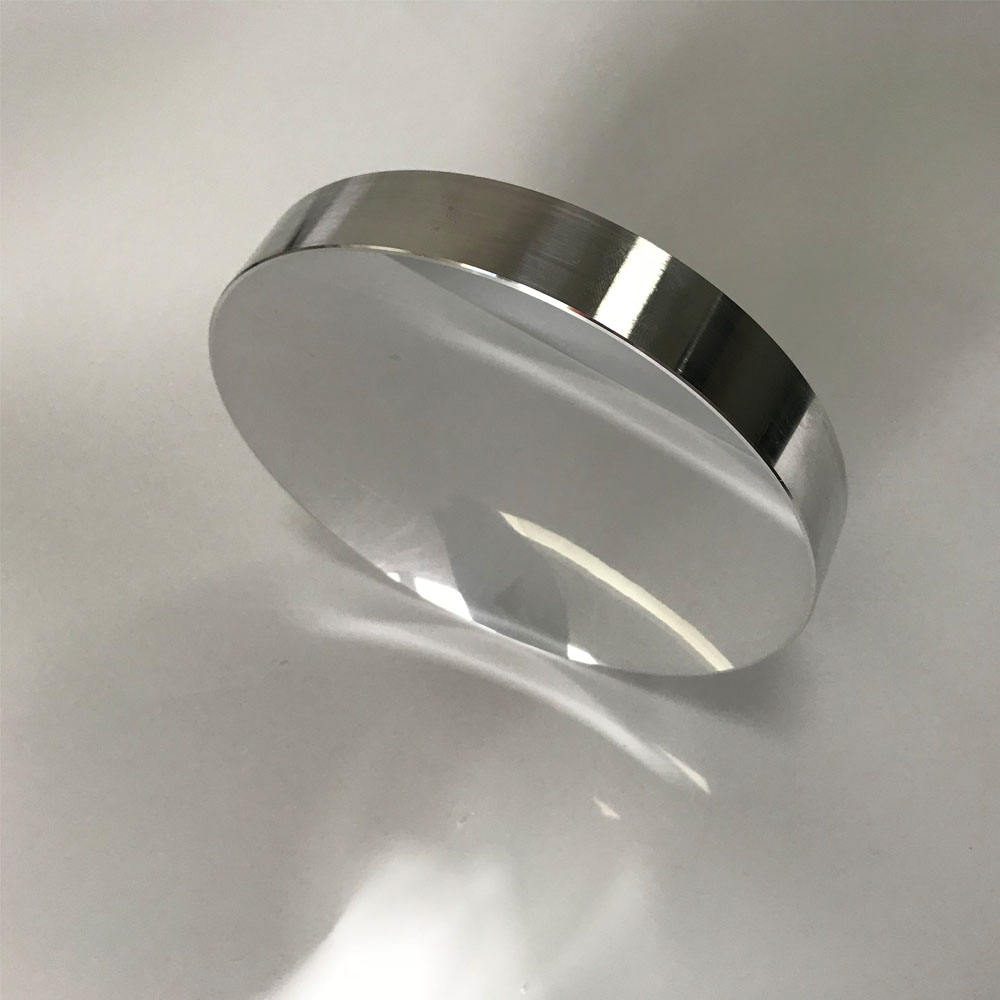

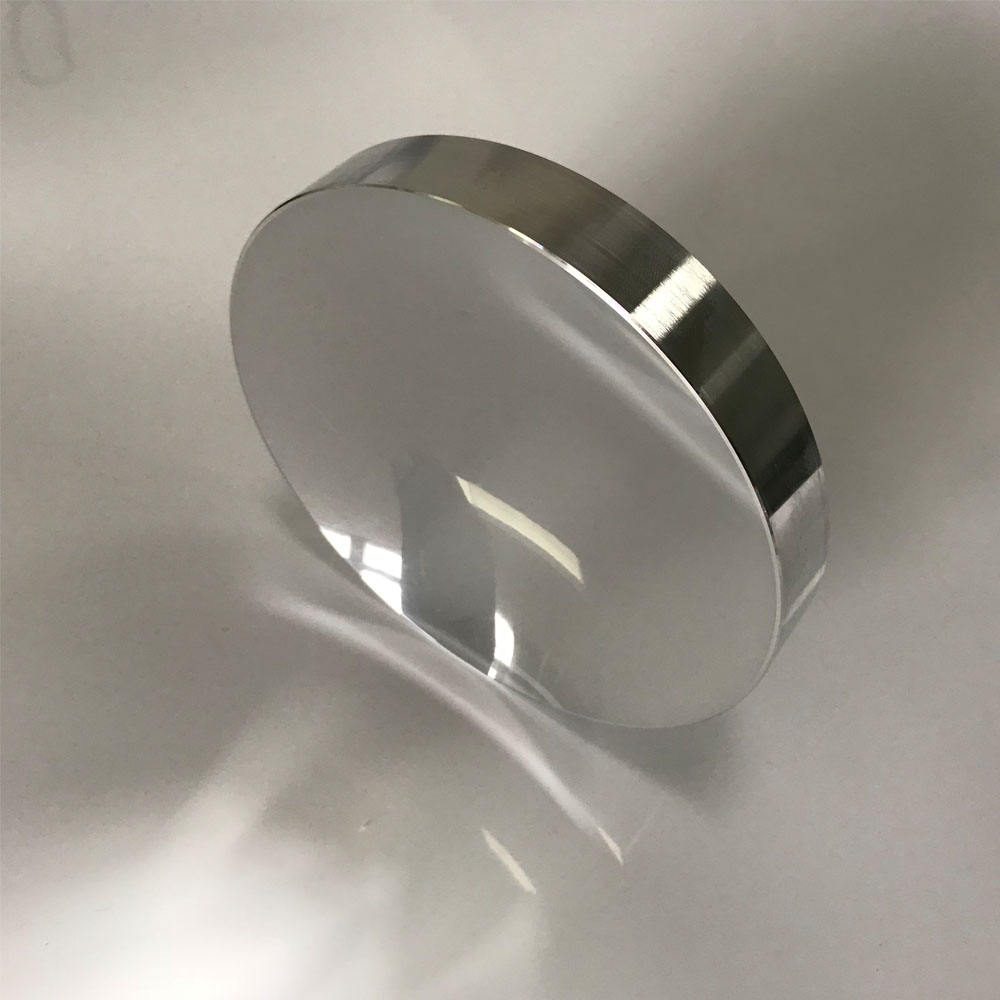

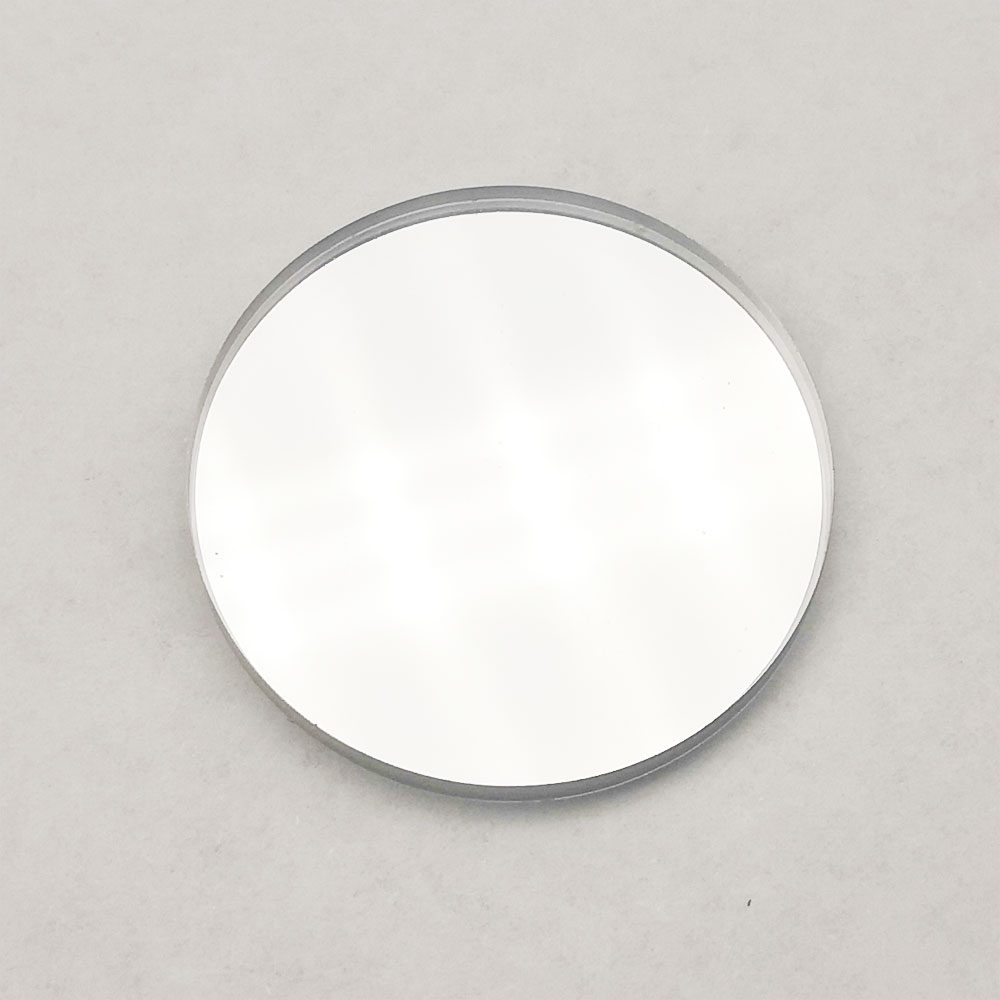

5 mm BK7 Optical Mirror
High-performance BK7 mirror with 98% reflectance for 0.7-1.7 μm and 400-700 nm applications.
Core attributes
- Material
- BK7
- Size
- 5 mm
- Thickness
- Custom
- Reflectance
- 98%
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- BK7
- Size
- 5 mm
- Thickness
- Custom
- Reflectance
- 98%
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
This high-performance mirror is designed for applications in the 0.7-1.7 μm and 400-700 nm spectral bands, offering exceptional reflectance of 98%. Ideal for R&D and industrial applications requiring precise optical performance, this mirror is made from BK7 material, ensuring durability and reliability. With a clear aperture of over 90%, it minimizes light loss, making it suitable for laser, LIDAR, and machine vision systems. Custom sizes are available to fit specific project needs.
Key Features
- Reflectance >98% at 500-800 nm enhances signal quality.
- Clear aperture >90% reduces light loss for optimal performance.
- Available in sizes from 5.0 mm to 300.0 mm for versatile applications.
- Bevel of 0.1-0.5 mm at 45° aids in installation and alignment.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Size | 5 mm |
| Thickness | Custom |
| Reflectance | 98% |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Substrate | BK7, Fused Silica, Aluminum |
| Reflectivity | >98% @500-800um |
| Clear Aperture | > 90% |
| Bevel | 0.1-0.5mm*45° |
FAQ
What sizes are available for custom orders?
Custom sizes range from 5.0 mm to 300.0 mm.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified.
