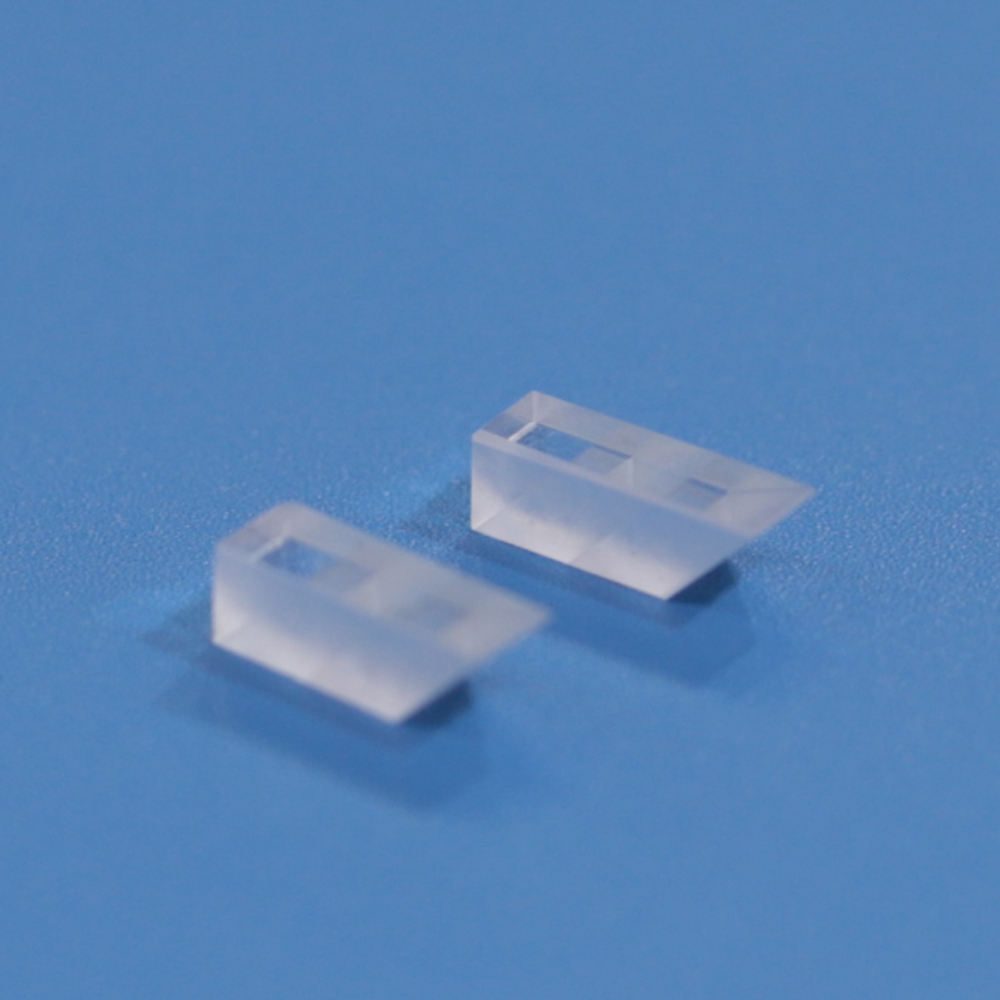

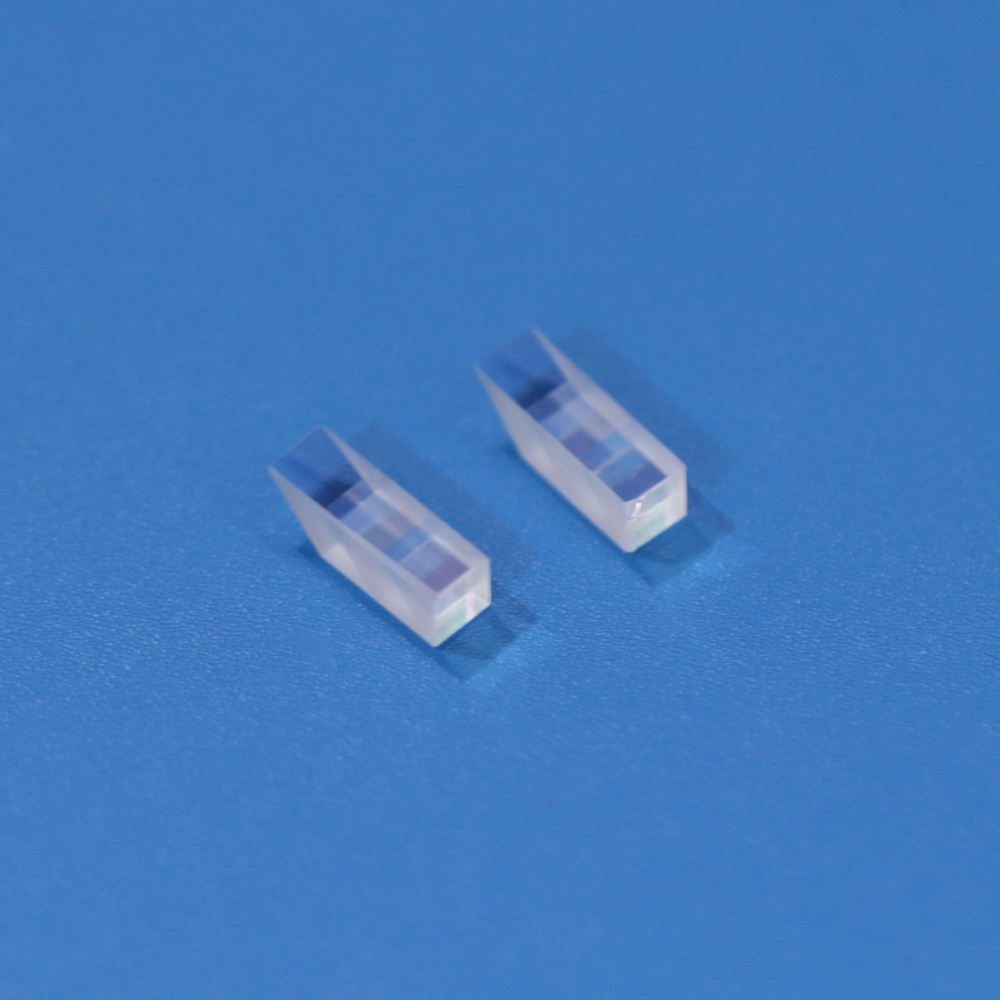

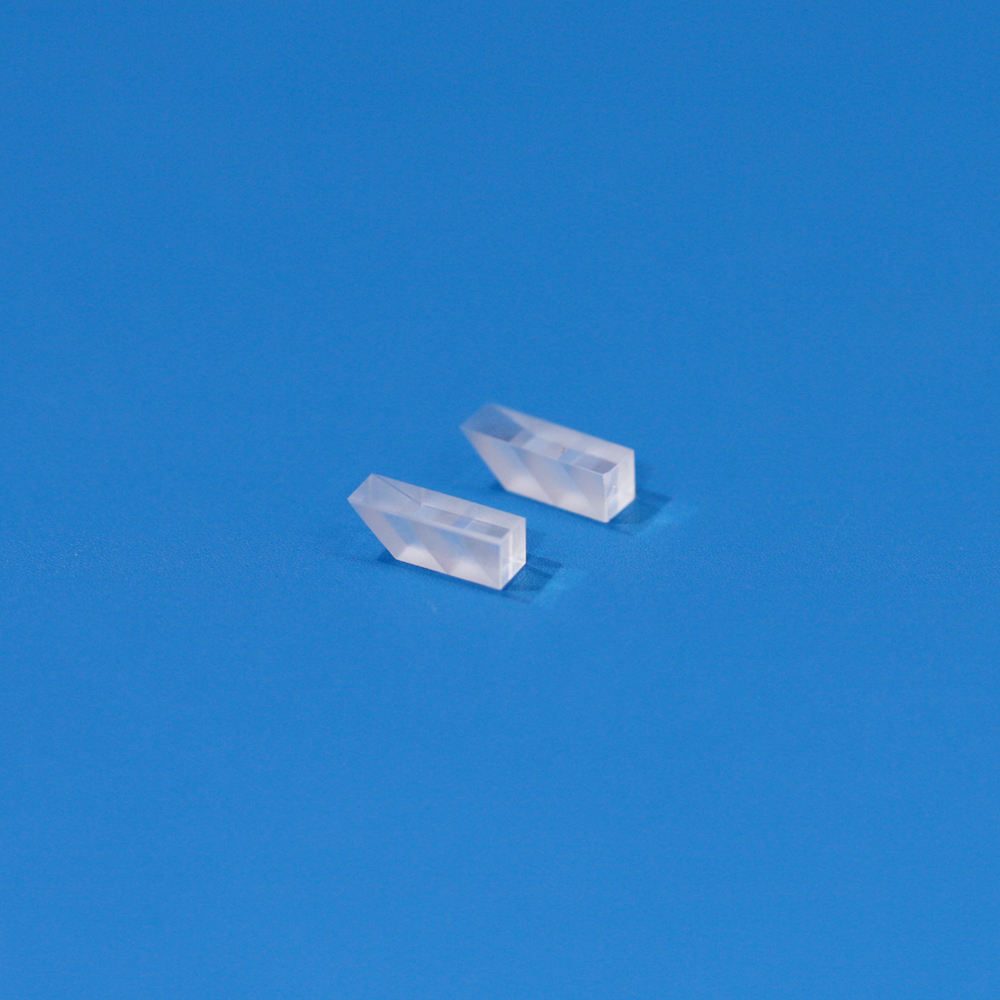

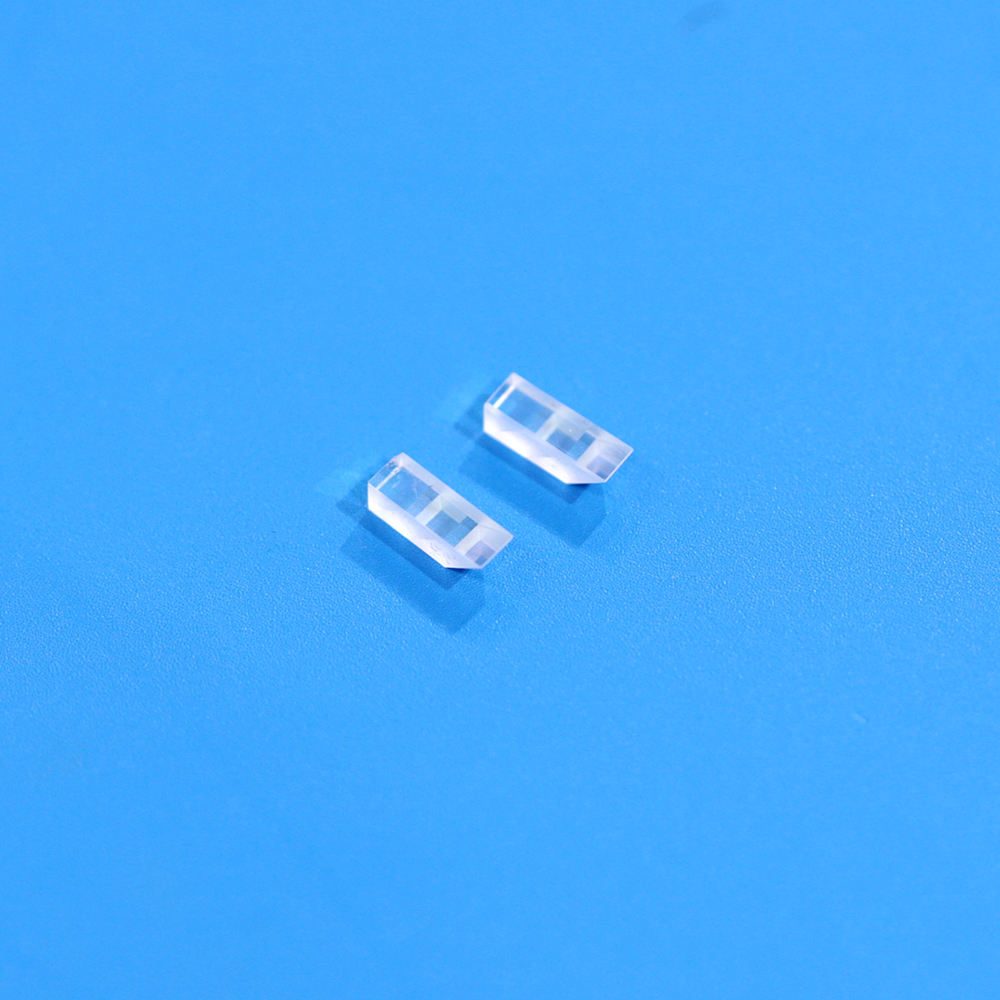

5 mm BK7 Optical Prism
Precision BK7 prism with 3 arcmin angle tolerance, 40/20 surface quality, and OEM support for custom sizes.
Core attributes
- Material
- BK7
- Size
- 5 mm
- Thickness
- Custom
- Surface Quality
- 40/20
Product facts
Key attributes
- Material
- BK7
- Size
- 5 mm
- Thickness
- Custom
- Surface Quality
- 40/20
Product description
This BK7 prism is designed for precision optical applications, providing reliable performance with an angle tolerance of 3 arcminutes. Its surface quality rating of 40/20 ensures minimal distortion, making it suitable for various optical paths. The prism is available in sizes ranging from 5 mm to 100 mm, allowing flexibility for different setups. Ideal for R&D and manufacturing environments, this prism meets the stringent demands of laser and imaging systems.
Key Features
- Angle tolerance of 3 arcminutes ensures precise alignment in optical systems.
- Surface quality of 40/20 minimizes wavefront distortion for enhanced imaging.
- Available in sizes from 5 mm to 100 mm for versatile application fit.
- OEM support for customized solutions to meet specific project requirements.
- Dimension tolerance of +0/-0.1 mm for consistent batch quality.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Size | 5 mm |
| Thickness | Custom |
| Surface Quality | 40/20 |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Prism |
| Customized Support | OEM |
| Angle Tolerance | 3 Arcmin |
| Dimension Tolerance | +0/-0.1mm |
FAQ
Can I get custom sizes?
Yes, the prism is available in sizes ranging from 5 mm to 100 mm.
What is the angle tolerance?
The angle tolerance for this prism is 3 arcminutes.
