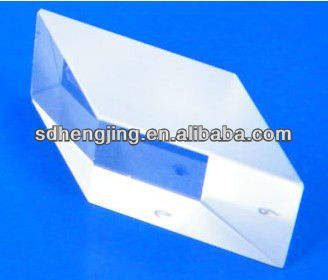

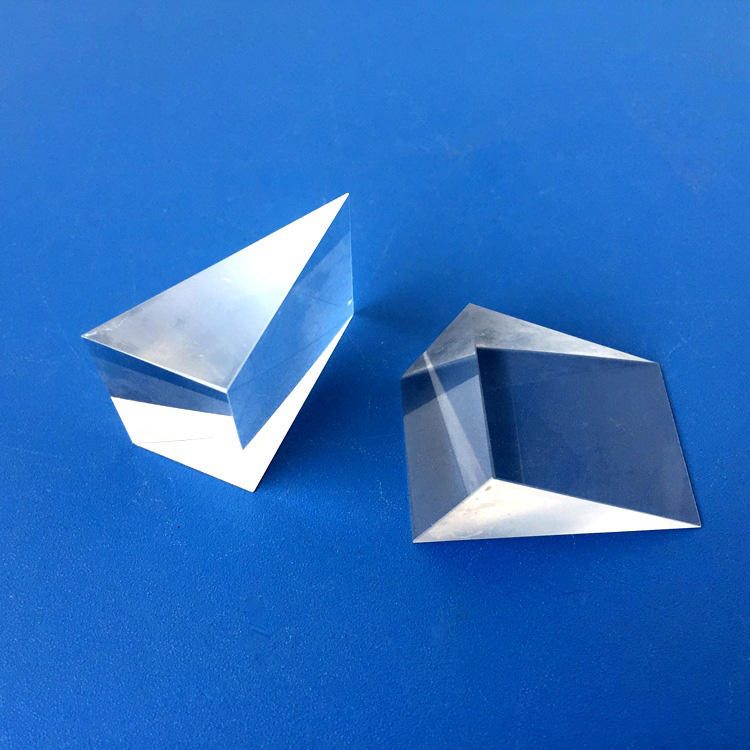

Custom Size BK7 Optical Prism

Product description

This BK7 prism is designed for optimal performance across multiple spectral bands, including 400-700 nm, 0.7-1.7 μm, and 1.7-3 μm. Its high surface quality rating of 20/10 ensures excellent wavefront integrity, making it suitable for applications in laser systems, machine vision, and optical instrumentation. The prism supports custom dimensions and offers reliable performance with a dimension tolerance of ±0.1 mm, ensuring precision in optical paths.

Key Features

Surface quality rated at 20/10 for superior wavefront integrity.
Dimension tolerance of ±0.1 mm ensures precision in optical applications.
Clear aperture greater than 80% for effective light transmission.
Flatness of lambda/10 for high-quality optical performance.
Customizable options available for OEM, ODM, and OBM support.

Specification Summary

Item	Value
Material	BK7
Size	Custom
Thickness	Custom
Surface Quality	20/10
Transmission bands	SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Customized Support	OEM, ODM, OBM
Warranty	1 year
Package	safe packing
Dimension Tolerance	±0.1
Clear Aperture	>80%
Flatness	lambda/10
Bevel	0.2-0.5

FAQ

Can I get custom sizes for the prism?

Yes, customizable options are available for various dimensions.

What is the dimension tolerance for this prism?

The dimension tolerance is ±0.1 mm, ensuring precise fit in optical systems.
