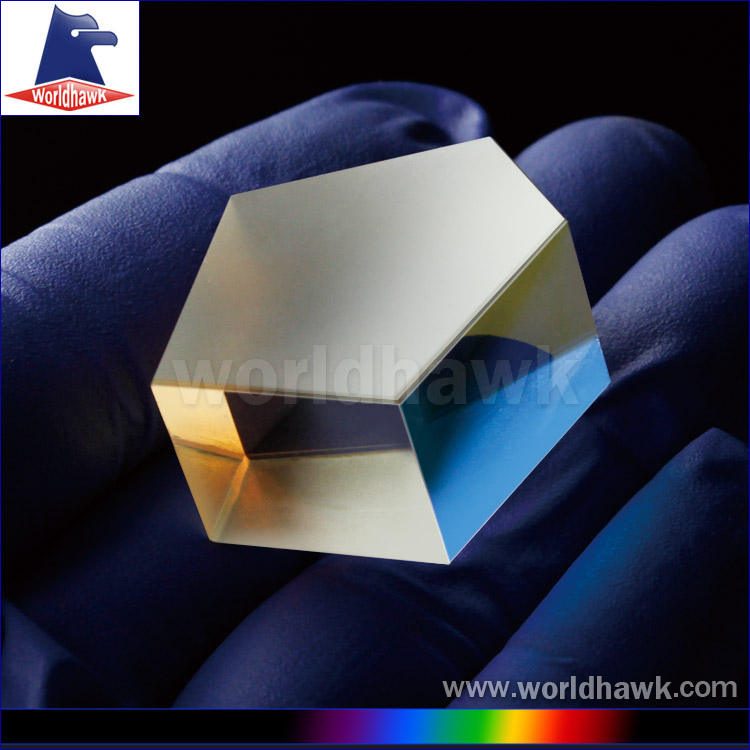

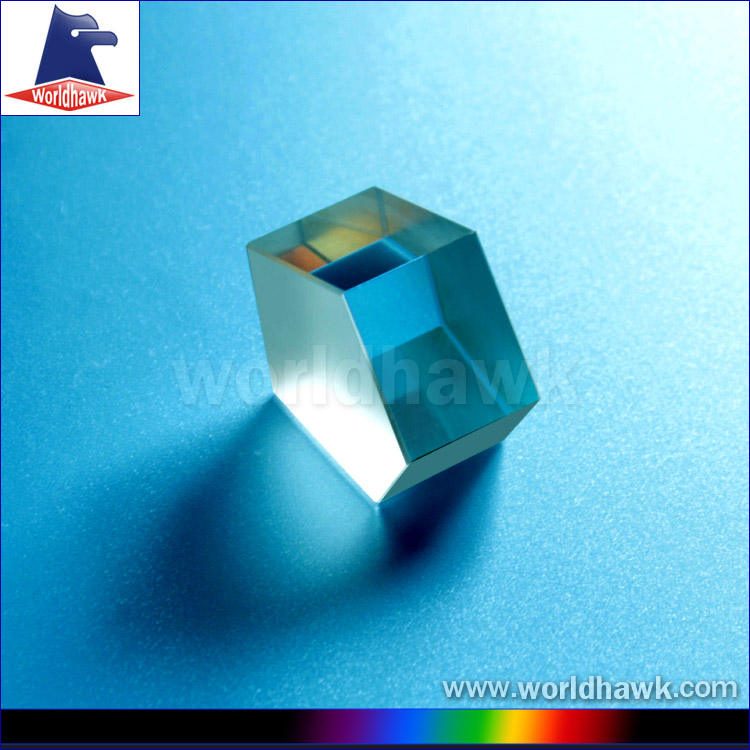

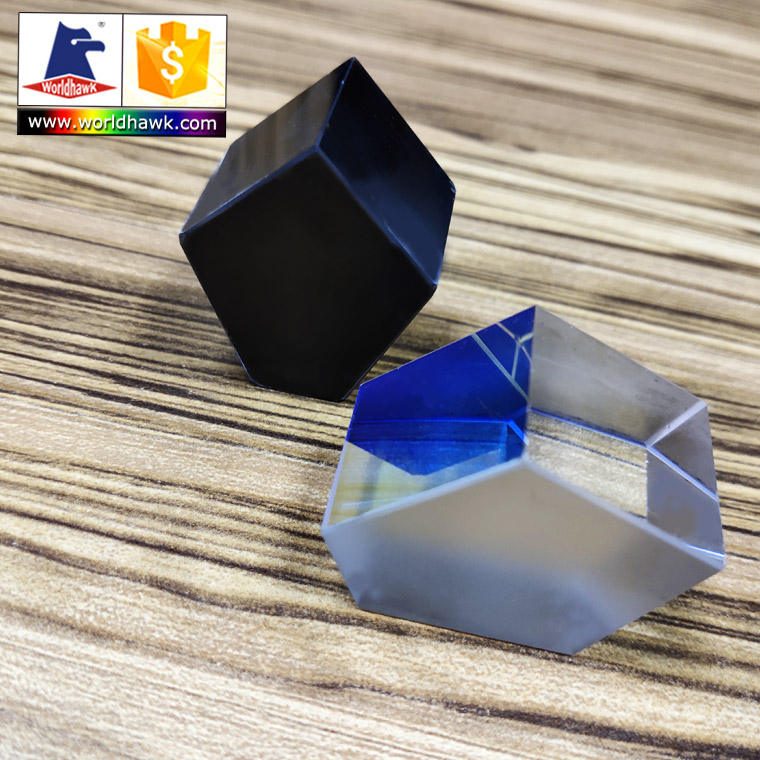

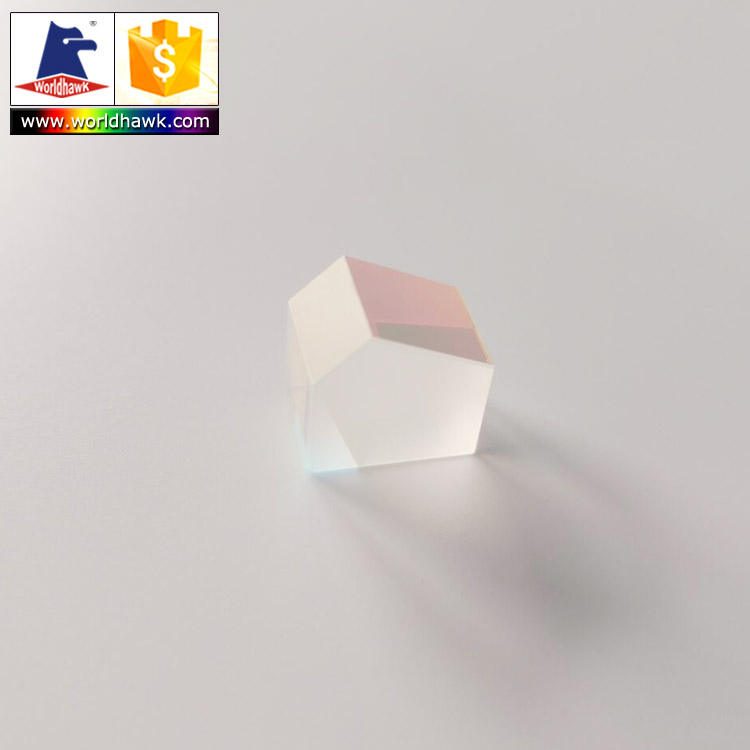

0.5 mm BK7 Penta Optical Prism, AR Coated

Product description

The BK7 penta prism is ideal for surveying applications, providing precise beam deviation with minimal distortion. Its design ensures accurate angle tolerances of less than 3’ or 0.5". With a surface quality rating of 60/40 and a clear aperture greater than 90%, this prism is engineered for optimal performance in various optical setups. The AR coating enhances transmittance, making it suitable for a range of wavelengths.

Key Features

Angle tolerance of <3’ ensures high precision in optical paths.
Surface quality of 60/40 supports wavefront integrity.
Clear aperture greater than 90% maximizes light transmission.
Customizable support available for OEM/ODM needs.
Size tolerance of 0.1-0.03mm for accurate fit in applications.

Applications

Surveying

Specification Summary

Item	Value
Material	BK7
Shape	Penta
Size	0.5 mm
Thickness	Custom
Surface Quality	60/40
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Customized Support	ODM
Size Tolerance	0.1-0.03mm
Angle Tolerance	<3’ or <0.5"
Clear Aperture	>90% or 100%
Surface Flatness	1/4Lambda or 1/20Lambda
Bevel	<0.2mm ±45° or No Bevel

FAQ

Is custom sizing available for this prism?

Custom sizing options are available, supporting OEM/ODM requirements.

What is the angle tolerance for this penta prism?

The angle tolerance is less than 3’ or 0.5".
