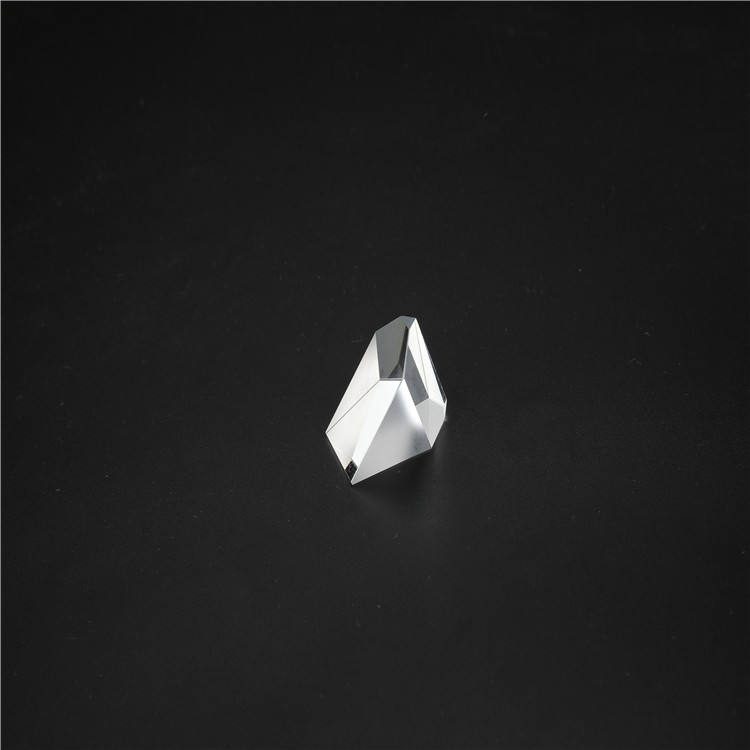

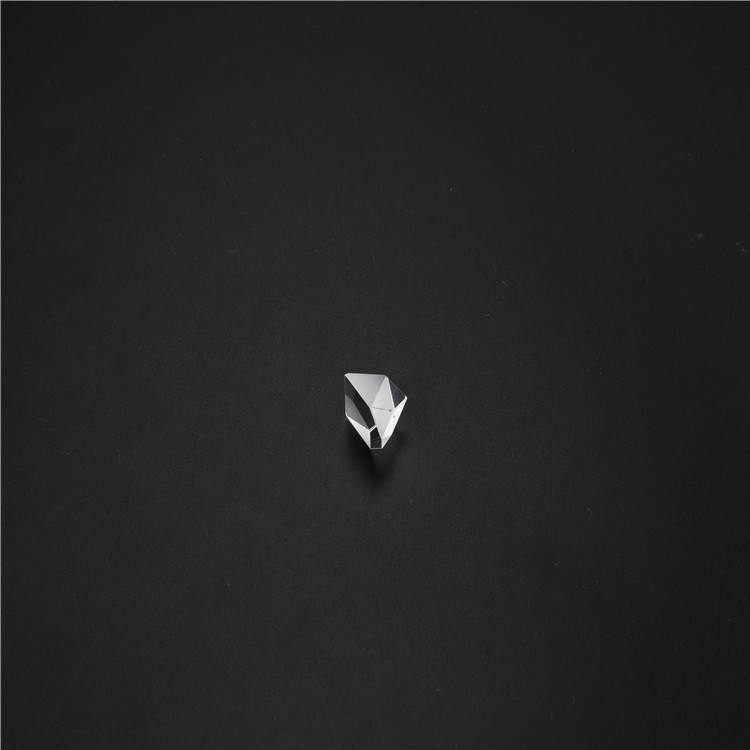

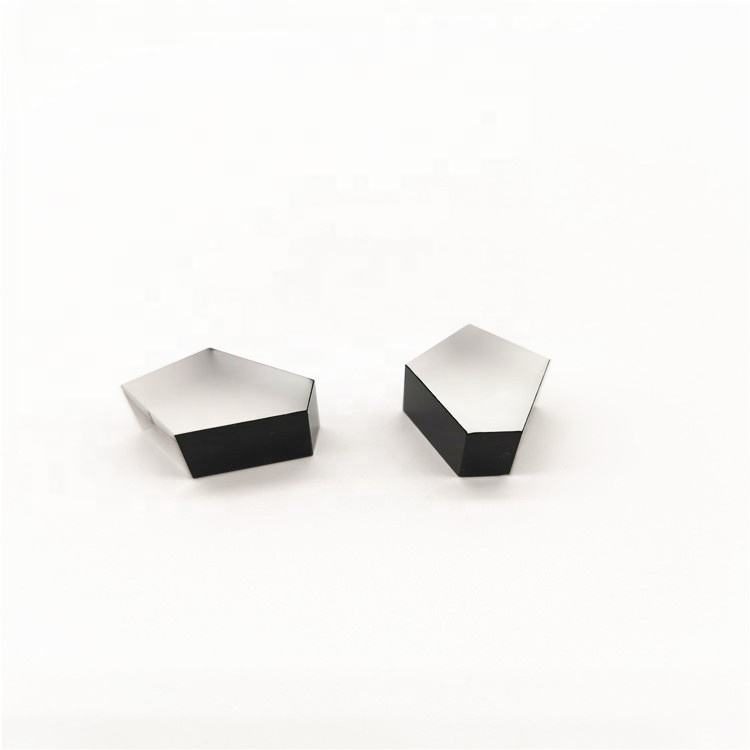

12.5 mm BK7 Penta Optical Prism, AR Coated
Explore our BK7 Penta Prism with AR coatings, ideal for precise beam deviation in optical systems.
Core attributes
- Material
- BK7
- Shape
- Penta
- Size
- 12.5 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- BK7
- Shape
- Penta
- Size
- 12.5 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product description
The Penta Prism is designed for applications requiring beam deviation with minimal optical distortion. Its geometry allows for a 90-degree deviation of light, making it ideal for laser and optical systems. Constructed from BK7 glass, it features AR coatings for enhanced transmittance, ensuring high-quality performance in various optical paths.
Key Features
- Penta prism geometry provides precise 90-degree beam deviation for effective optical routing.
- Surface quality of 60/40 ensures minimal distortion, maintaining wavefront integrity.
- AR coatings enhance transmittance, optimizing performance in laser and imaging applications.
- Customizable options available for OEM and ODM projects to meet specific requirements.
- Compact size of 12.5 mm x 12.5 mm fits standard optical systems.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Penta |
| Size | 12.5 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Penta Prism |
| Customized Support | OEM, ODM |
| Warranty | 1 years |
| Chamfer | optical level as needed |
FAQ
Can I get custom sizes?
Custom sizes are available through OEM and ODM support.
What is the surface quality?
The surface quality is rated at 60/40, suitable for most optical applications.
