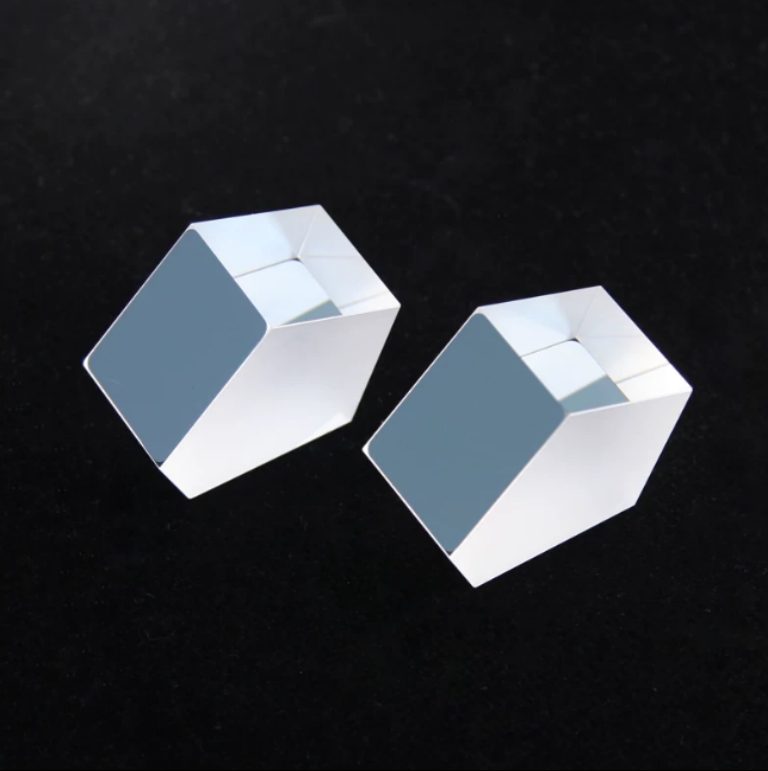

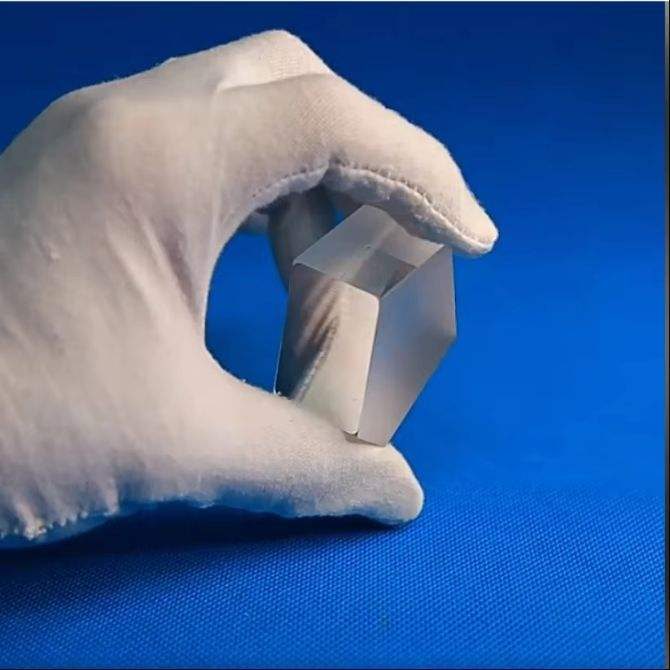

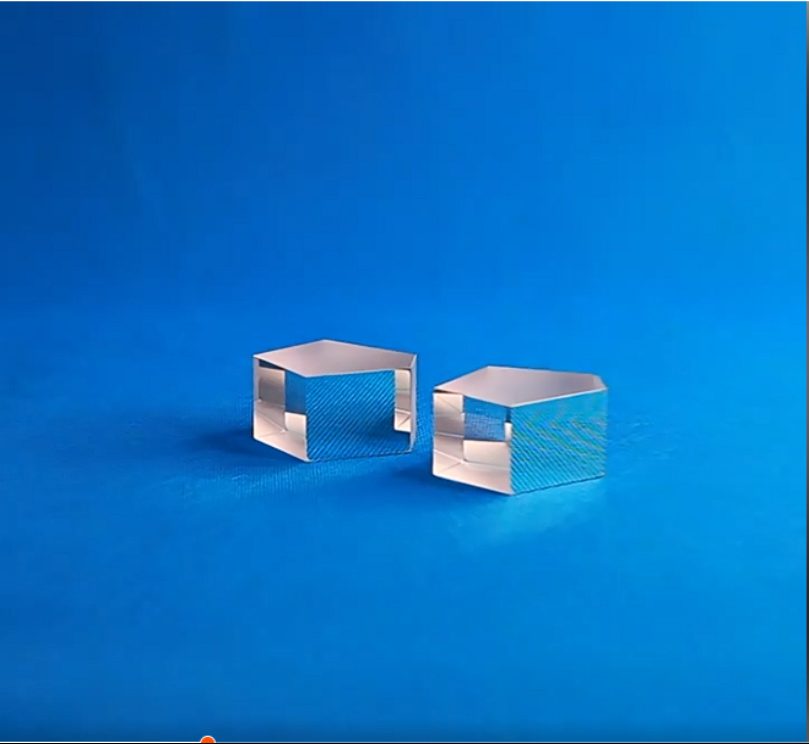

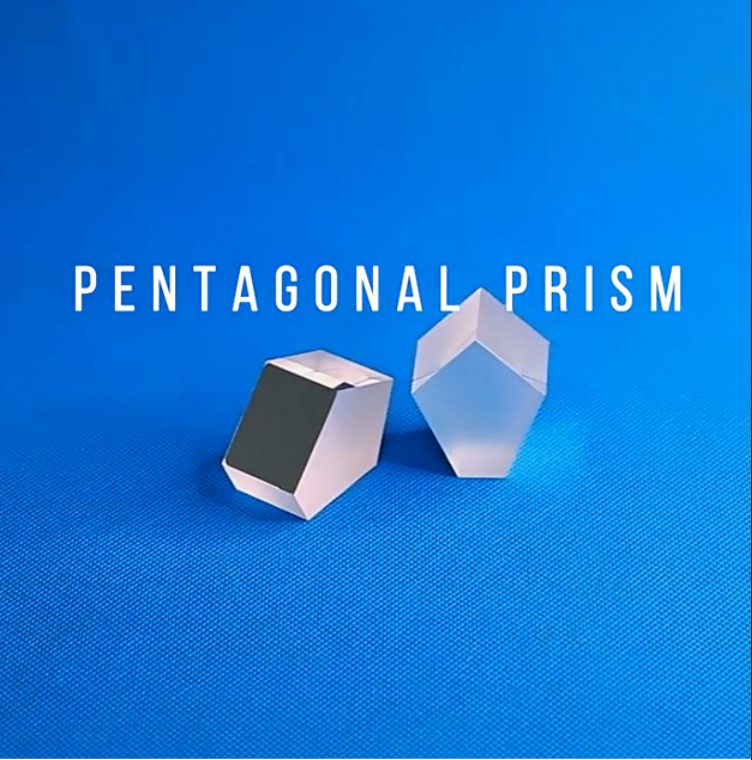

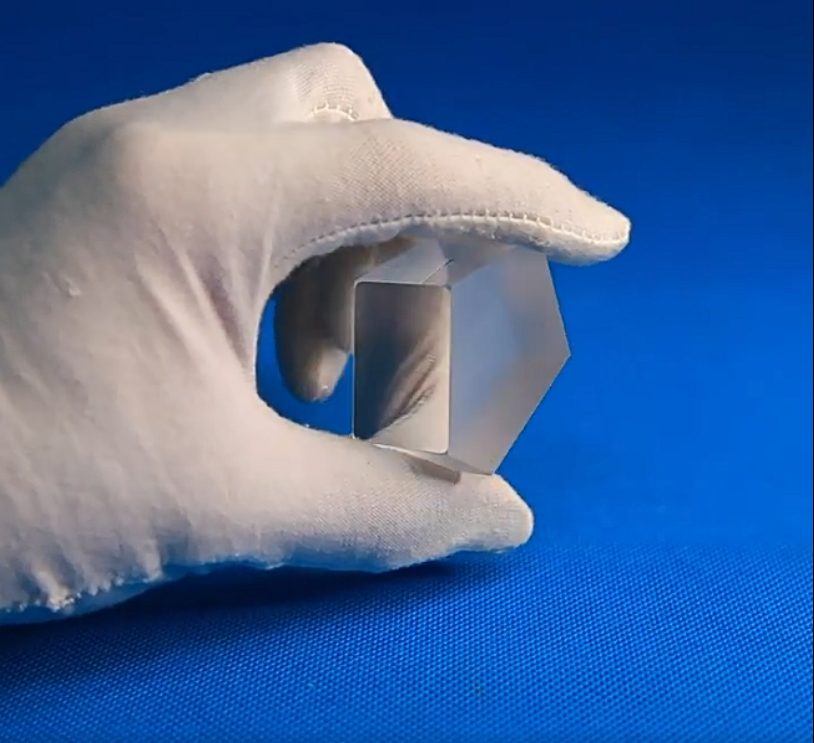

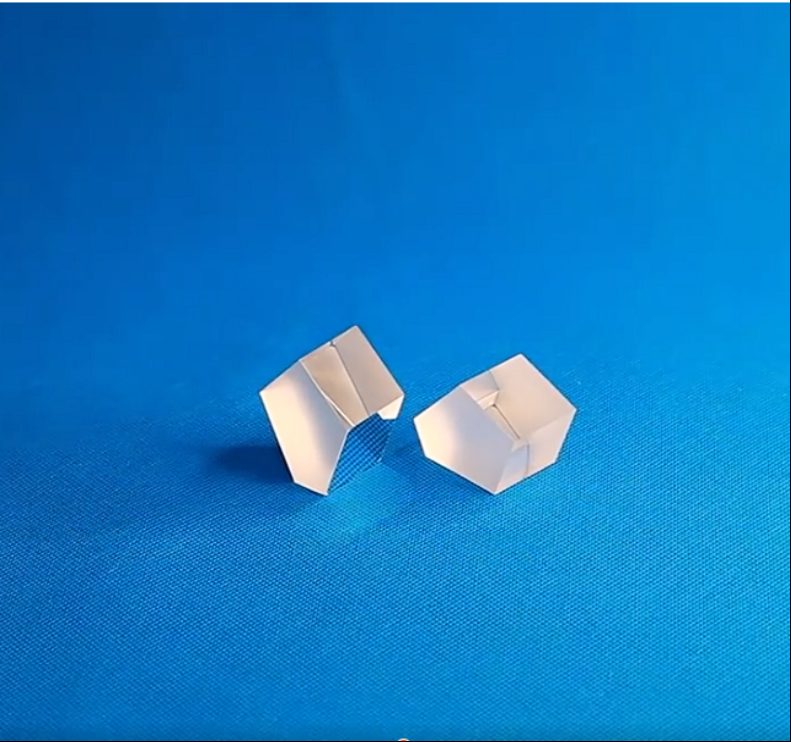

Custom Size BK7 Penta Optical Prism, AR Coated

Product description

The Penta Prism is designed for applications in laser, machine vision, surveying, and research. It provides precise beam deviation with minimal distortion, making it ideal for optical measuring instruments. With customizable dimensions and coatings, this prism ensures optimal performance across the 400-700 nm and <400 nm wavelength bands. Its high-purity BK7 glass guarantees excellent chemical stability, while anti-reflection coatings enhance light transmittance, ensuring reliability in various industrial settings.

Key Features

Angle accuracy of 5-30 arc seconds ensures precise measurements.
Customizable dimensions and coatings allow for tailored optical solutions.
High-purity BK7 glass provides excellent chemical stability for durability.
AR coatings available for enhanced light transmittance up to 99%.
Surface flatness up to Lambda10 @632.8nm minimizes image distortion.

Applications

Laser, Machine Vision, Surveying, Research

Specification Summary

Item	Value
Material	BK7
Shape	Penta
Size	Custom
Thickness	Custom
Coating	anti-reflective (AR)
Transmission bands	VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Prism Type	Penta Prism
Customized Support	ODM, OBM, OEM
Warranty	1 Year

FAQ

Can I get custom sizes for the penta prism?

Yes, penta prisms can be customized according to customer optical drawings, including overall dimensions and internal reflection angles.

What is the minimum order quantity (MOQ) for this prism?

Small prototype sample orders are acceptable, allowing for flexibility in initial orders.
