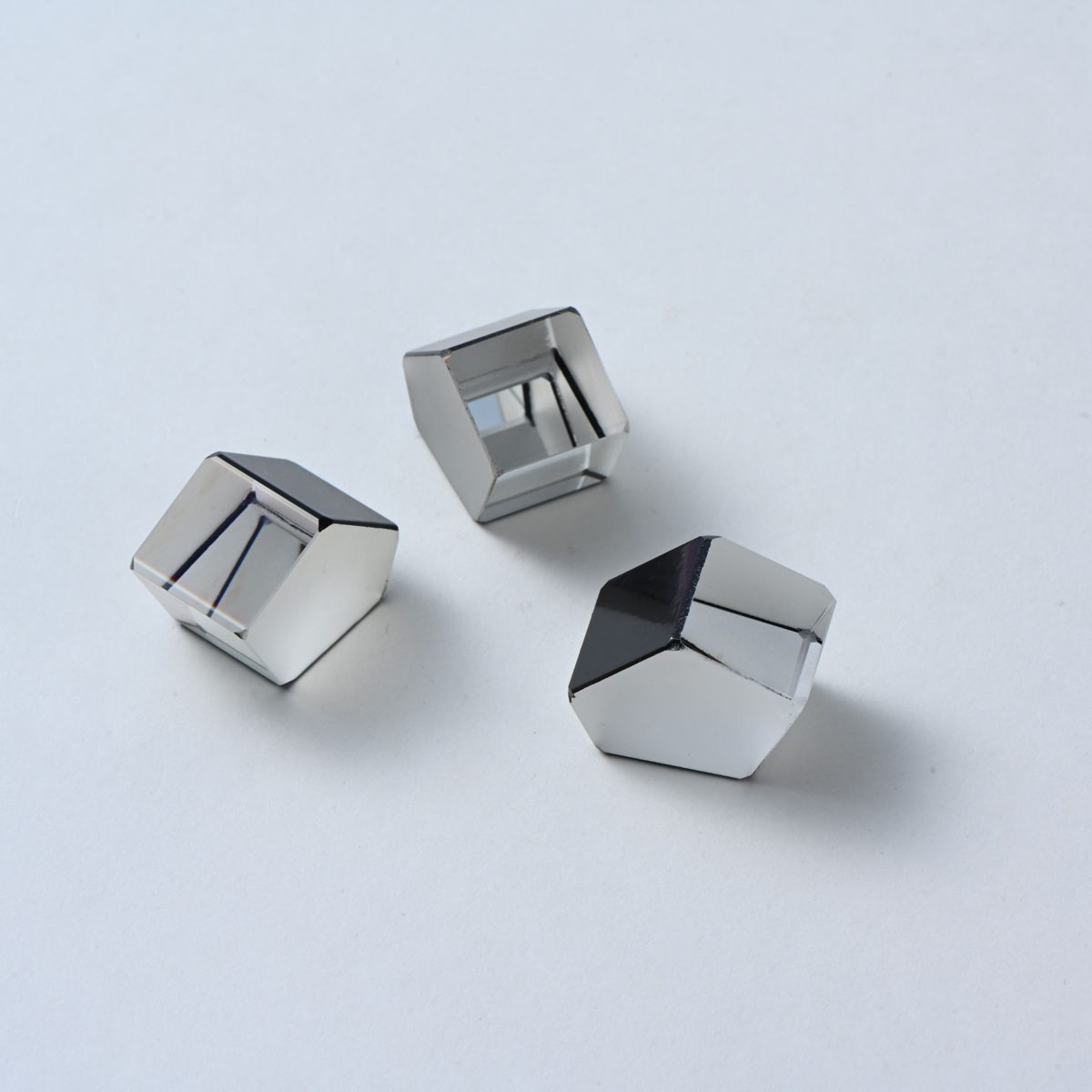

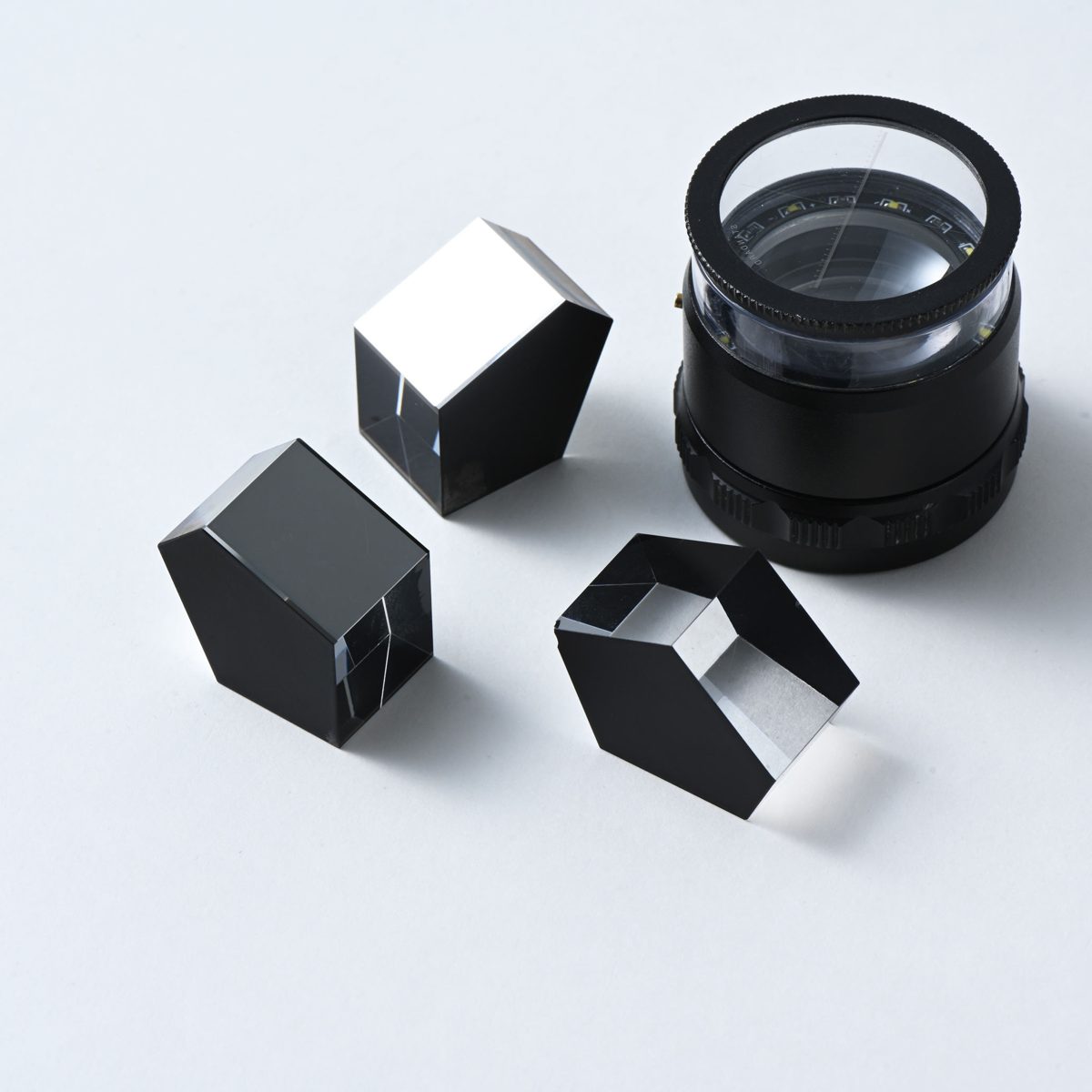

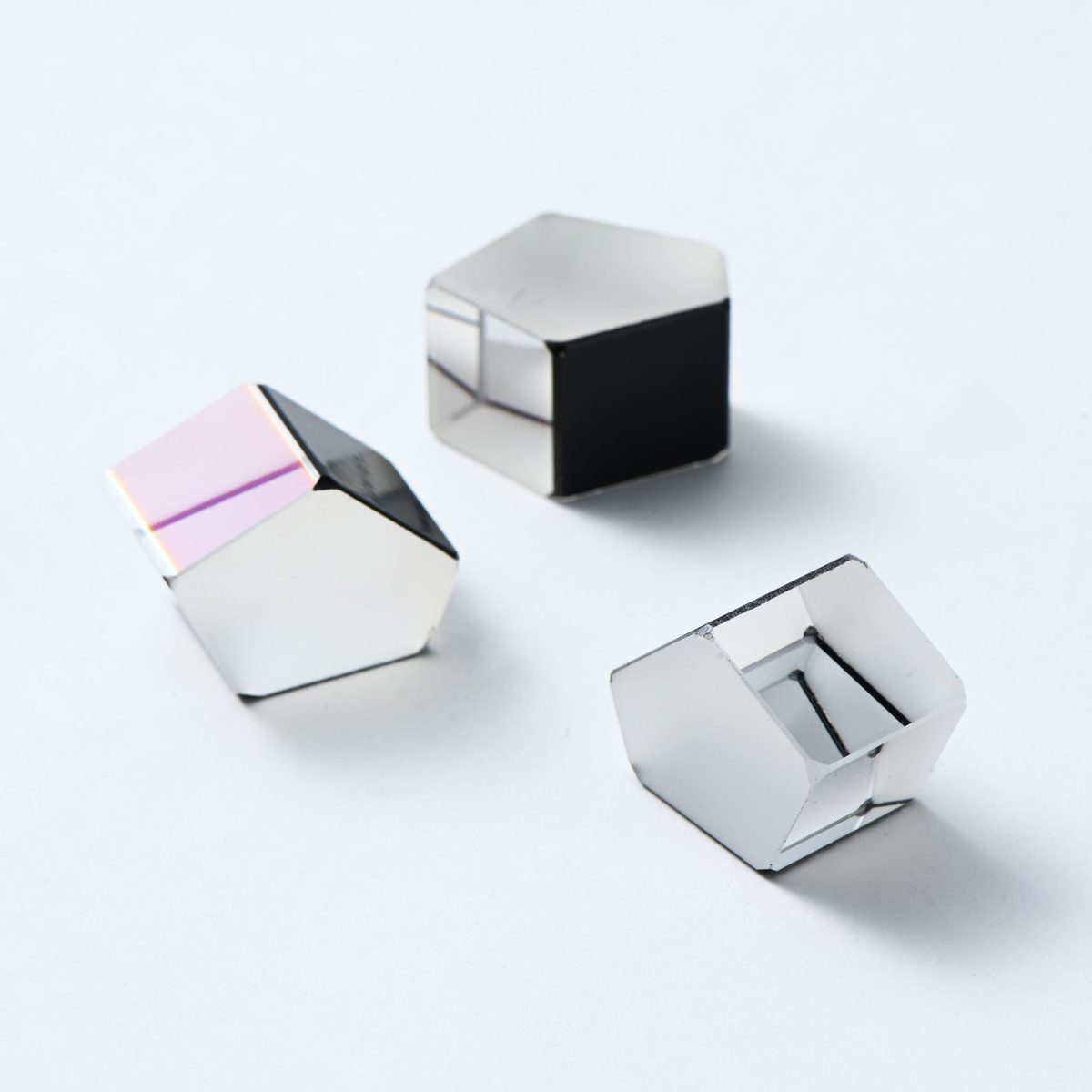

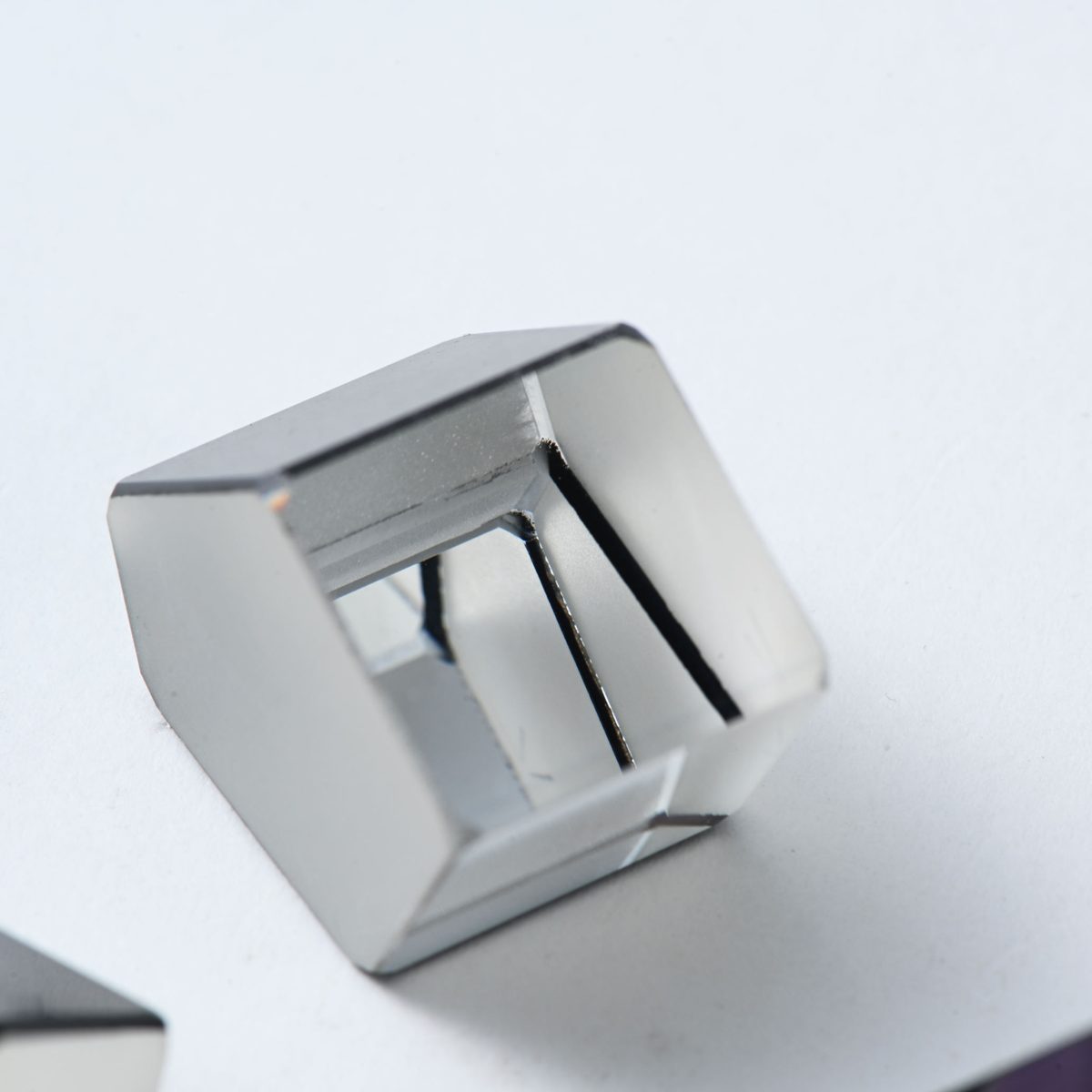

Custom Size BK7 Penta Optical Prism, AR Coated

Product description

The BK7 penta prism is ideal for applications in projection and surveying, providing precise beam deviation with minimal distortion. Its unique geometry allows for effective light redirection, making it suitable for infrared spectrometers and optical communication systems. This prism features advanced coatings, including anti-reflective (AR) and dielectric high reflectance (HR), ensuring optimal performance in various optical paths.

Key Features

Triangular penta geometry ensures accurate beam deviation for projection and surveying applications.
AR and dielectric HR coatings enhance transmittance and reflectance, improving optical efficiency.
Dimension tolerance of +0/-0.05mm guarantees precise fitting in optical setups.
Suitable for use in infrared spectrometers and laser communication systems.

Applications

Projection, Surveying

Specification Summary

Item	Value
Material	BK7
Shape	Penta
Size	Custom
Thickness	Custom
Coating	anti-reflective (AR), dielectric HR

Full Specifications

Parameter	Value
Prism Type	Triangular Prism
Customized Support	OEM, ODM, OBM; OBM OEM ODM
Warranty	3 Years
Use	infrared spectrometer, laser, optical communication and other fields
Dimension Tolerance	+0/-0.05mm
Type	Optical Prisms

FAQ

Can I get custom sizes for the penta prism?

Custom sizing options are available through OEM, ODM, and OBM support.

What is the dimension tolerance for this prism?

The dimension tolerance is +0/-0.05mm, ensuring a precise fit for your application.
