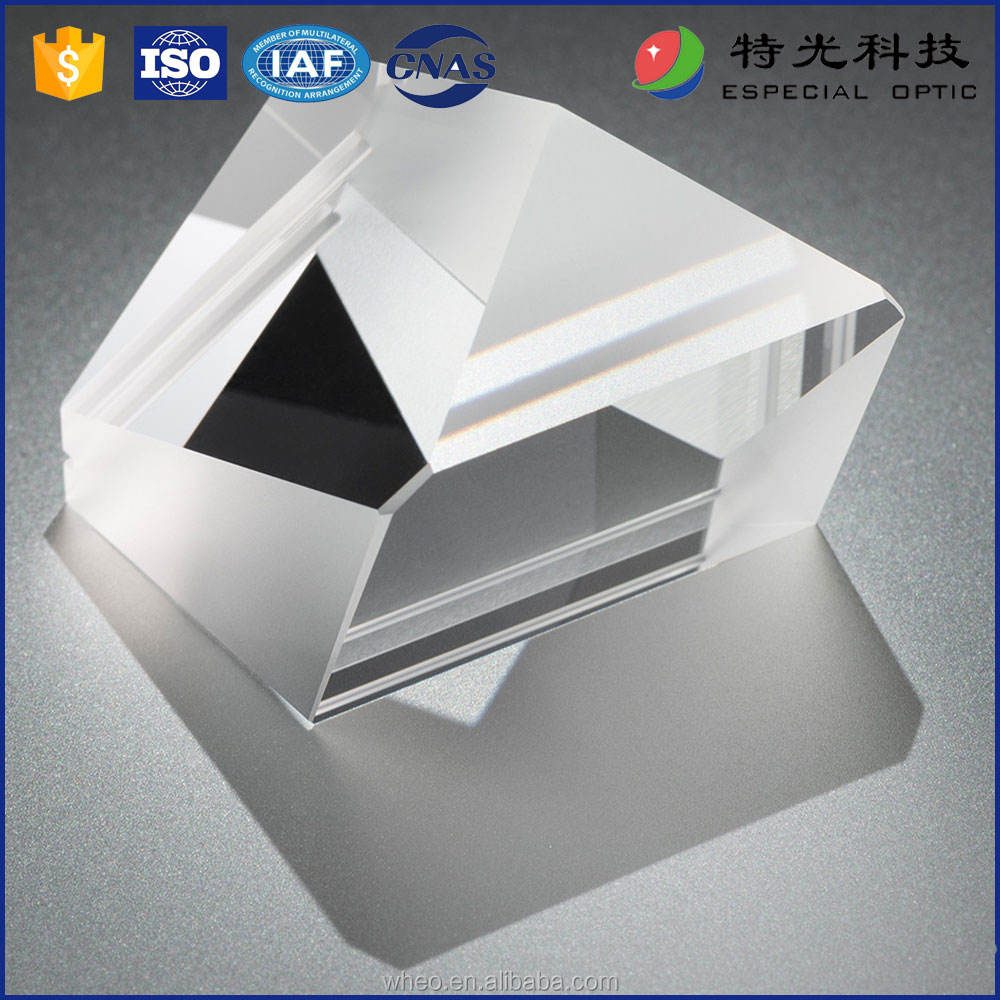

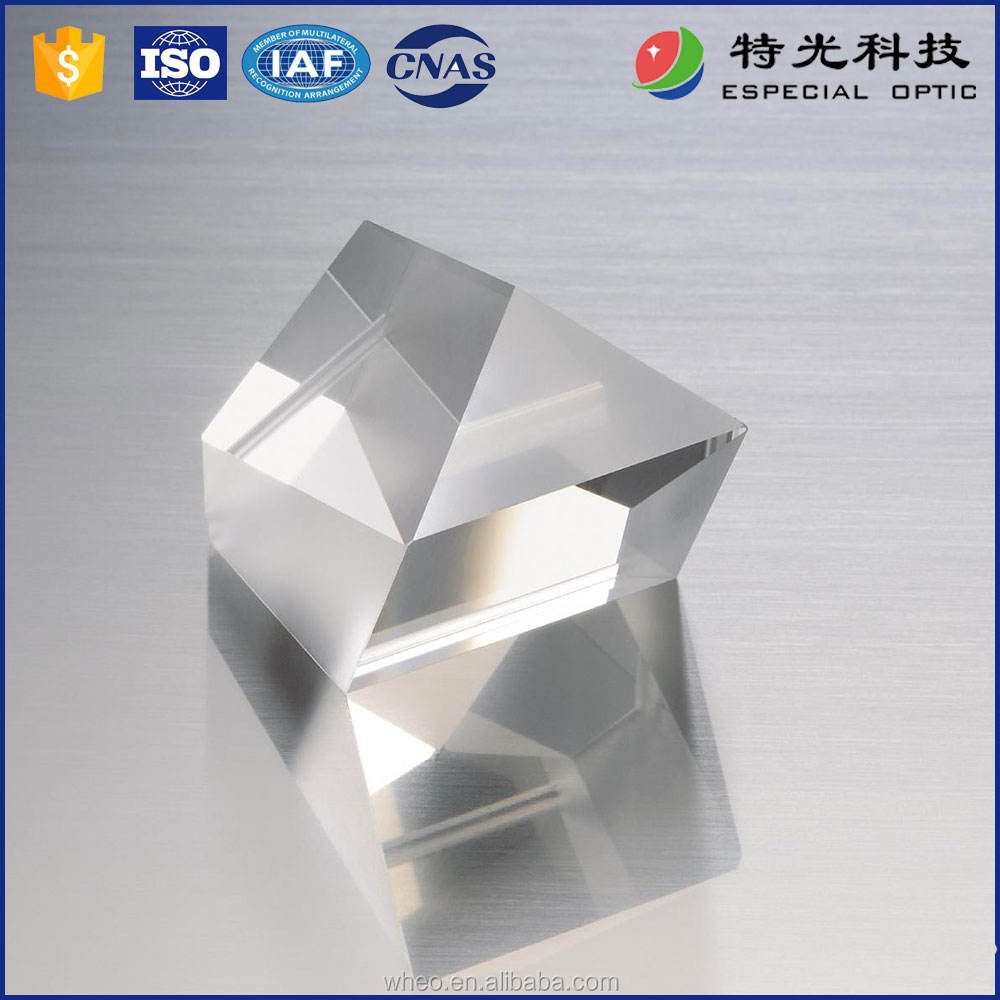

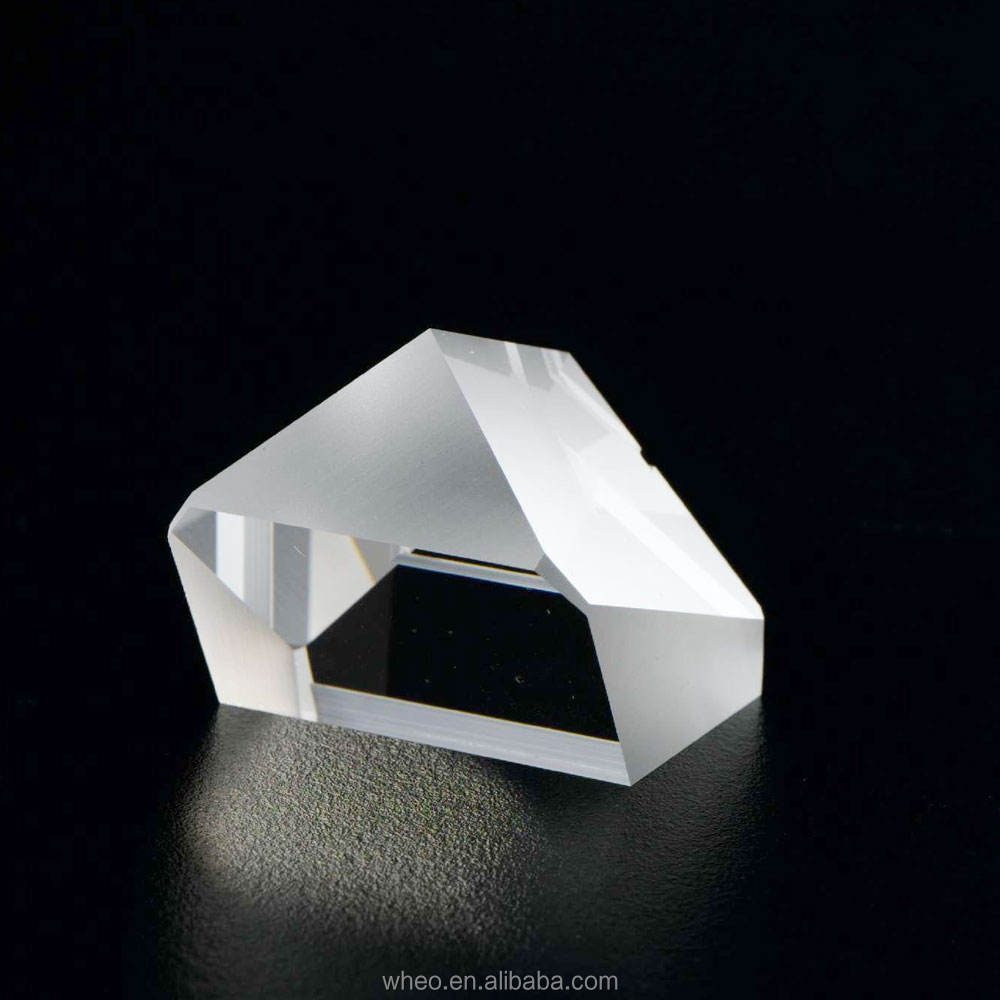

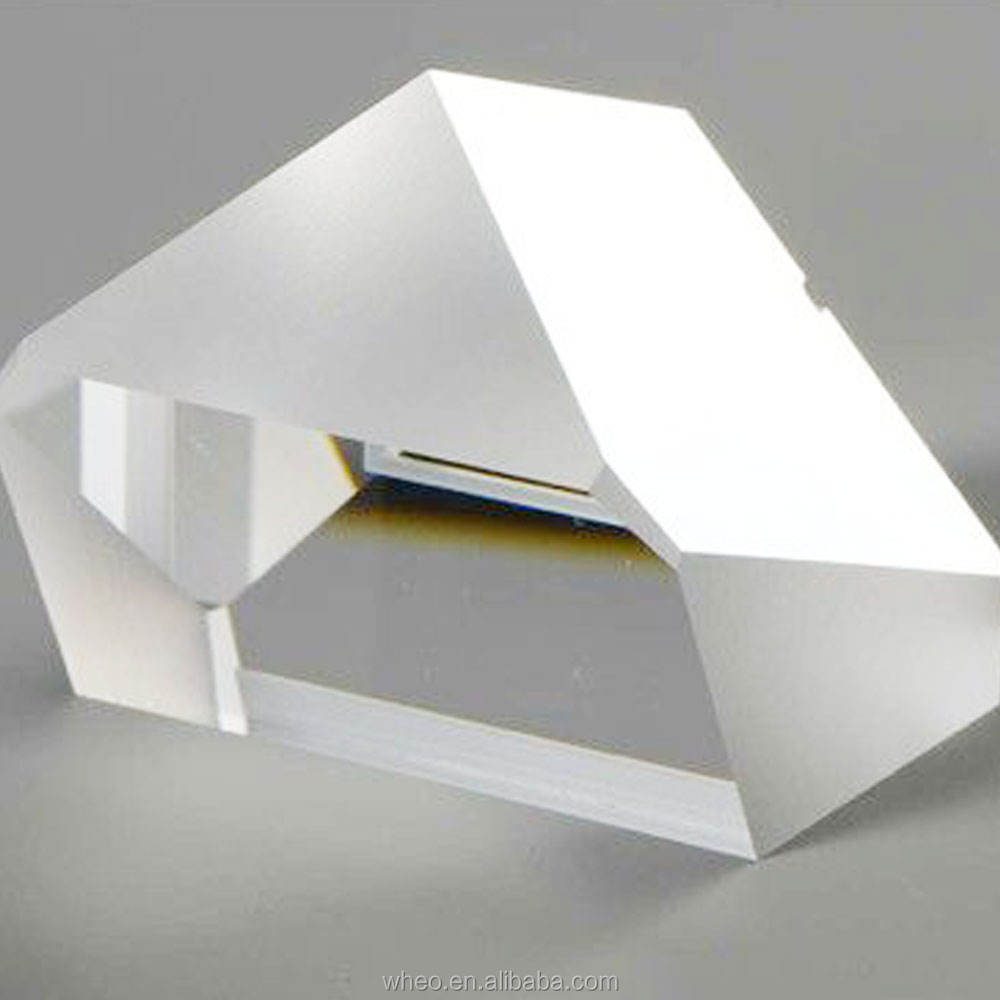

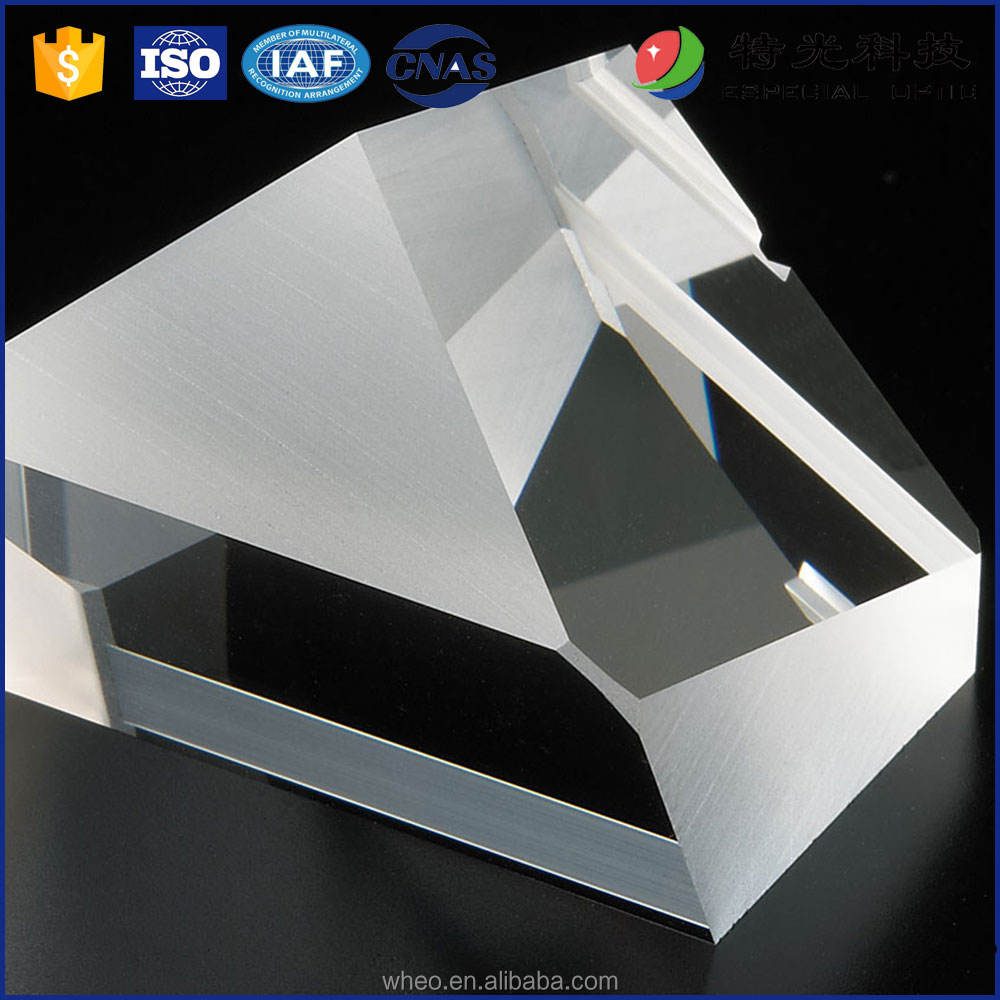

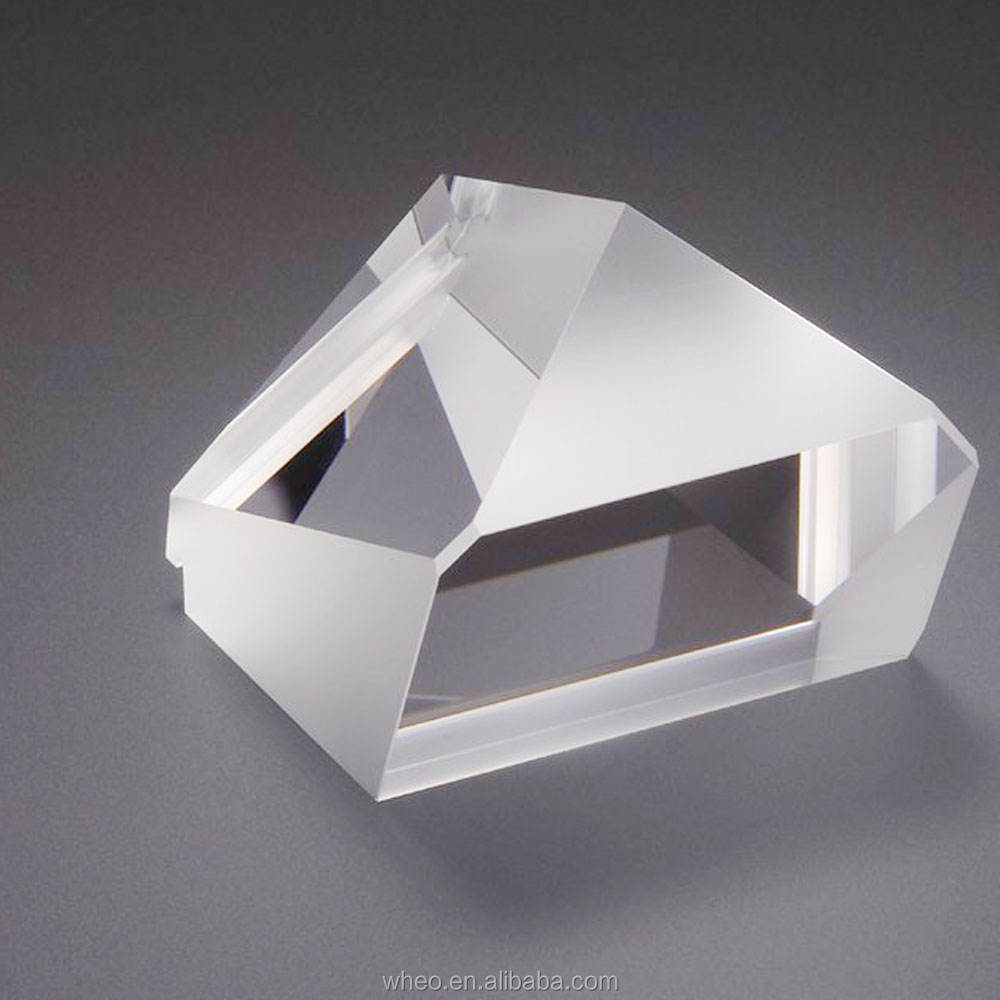

Custom Size BK7 Penta Optical Prism
Explore the BK7 penta prism with high surface quality and precise tolerances for optimal optical performance.
Core attributes
- Material
- BK7
- Shape
- Penta
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 1/4
Product facts
Key attributes
- Material
- BK7
- Shape
- Penta
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 1/4
Product description
The BK7 penta prism is designed for applications requiring precise beam deviation and reliable optical performance. With a clear aperture greater than 90%, it ensures minimal loss of light while maintaining high surface quality (1/4). This prism is ideal for various optical paths where accurate angle deviation is critical.
Key Features
- Clear aperture >90% for optimal light transmission.
- Surface quality of 1/4 ensures minimal wavefront distortion.
- Thickness tolerance of ±0.2mm for precise integration.
- Dimension tolerance of ±0.2mm for consistent performance.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Penta |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 1/4 |
Full Specifications
| Parameter | Value |
|---|---|
| Clear Aperture | >90% |
| Thickness Tolerance | ±0.2mm |
| Dimension Tolerance | ±0.2mm |
FAQ
Is custom sizing available?
Custom sizing options are not specified for this penta prism.
What are the tolerances for this prism?
The thickness and dimension tolerances are both ±0.2mm.
