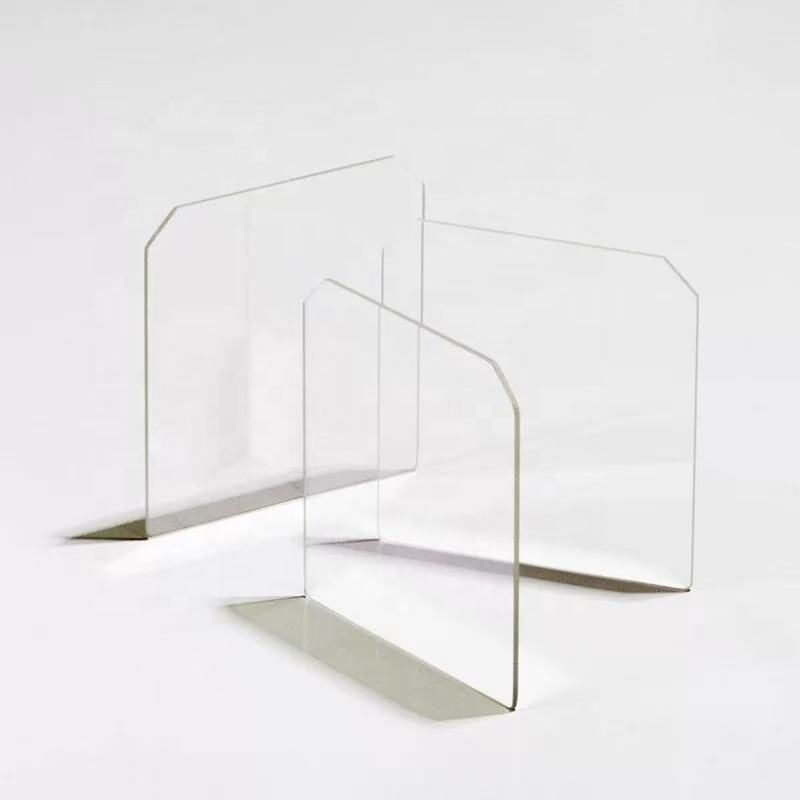

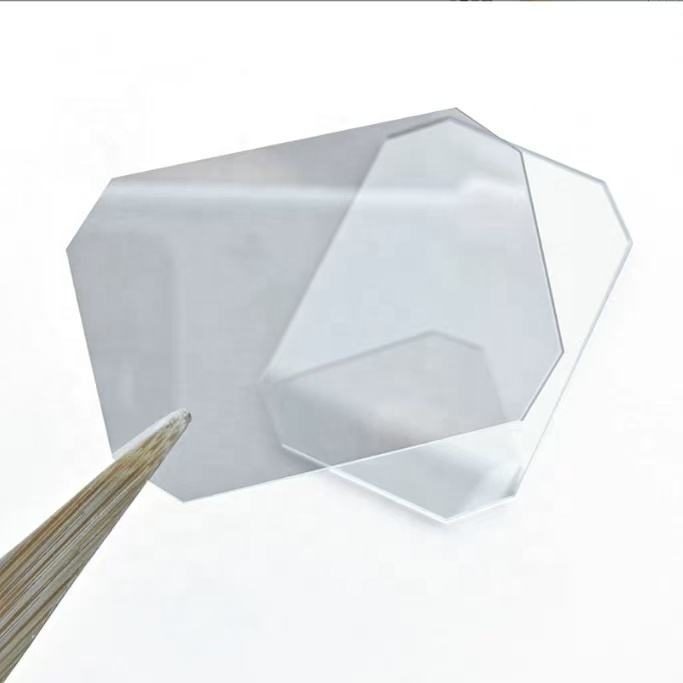

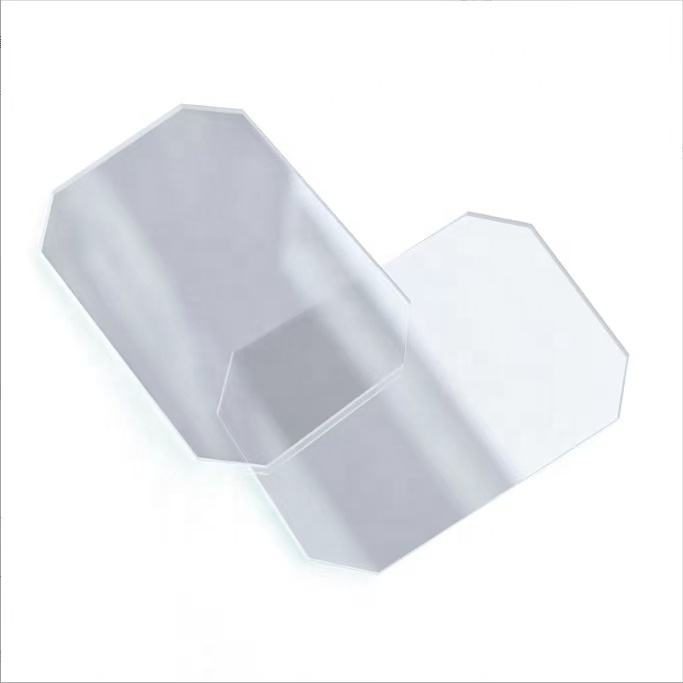

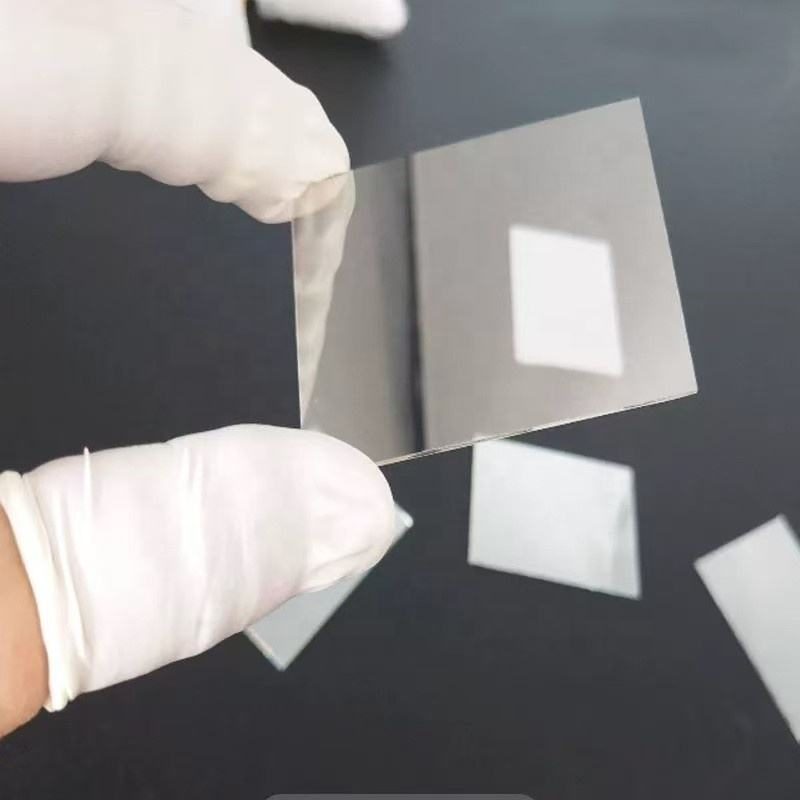

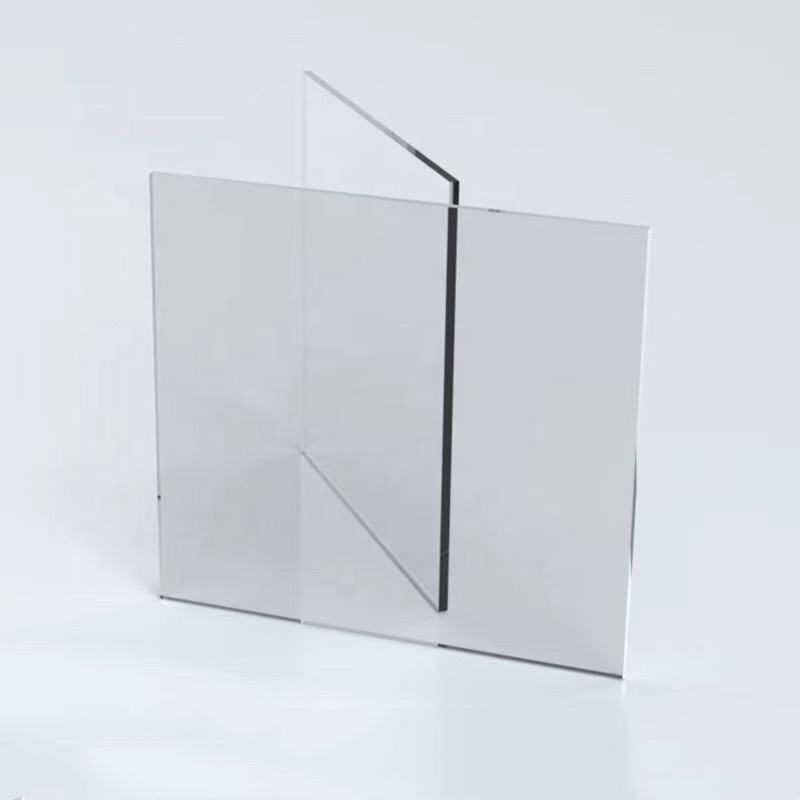

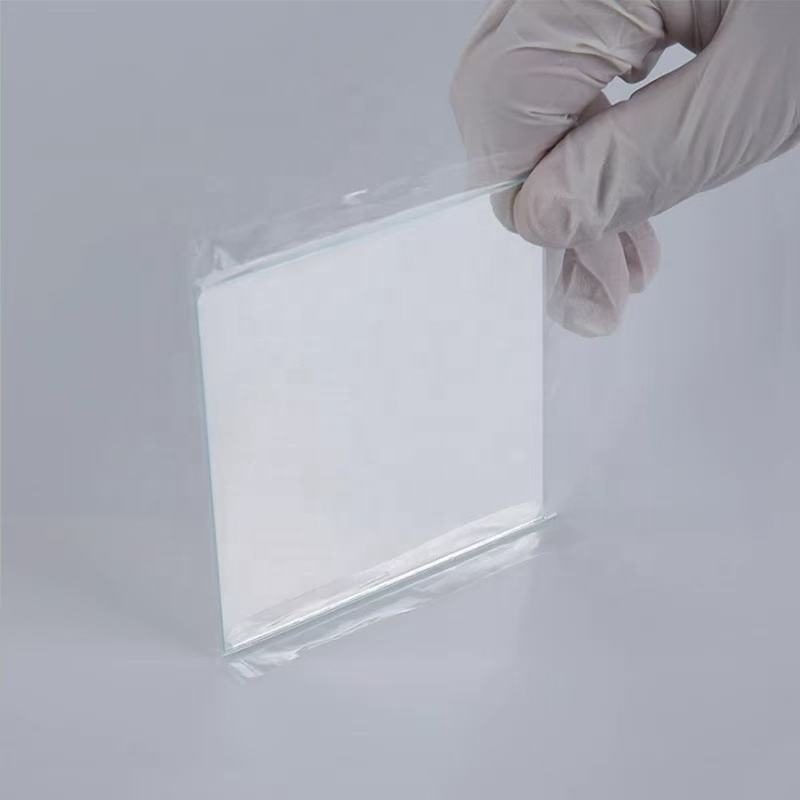

80 mm BK7 Plate Beamsplitter
BK7 plate beamsplitter with 50% transmittance, 50/50 split ratio, ideal for 400-700 nm applications.
Core attributes
- Material
- BK7
- Shape
- Plate
- Size
- 80 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmittance
- 50%
- Split Ratio
- 50/50
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- BK7
- Shape
- Plate
- Size
- 80 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmittance
- 50%
- Split Ratio
- 50/50
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
This BK7 plate beamsplitter is designed to effectively split light in the wavelength range of 400-700 nm and 0.7-1.7 μm, making it ideal for applications in laser systems and optical setups. With a 50% transmittance and a 50/50 split ratio, it ensures balanced light distribution for optimal performance. Its robust surface quality of 60/40 enhances reliability in various optical environments, while the angle tolerance of +/-3’ allows for precise alignment in demanding applications.
Key Features
- Transmittance of 50% for balanced light distribution.
- 50/50 splitting ratio for optimal performance in optical setups.
- Surface quality of 60/40 ensures consistent optical clarity.
- Angle tolerance of +/-3’ for precise alignment.
- Customizable options available for OEM, ODM, and OBM.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Plate |
| Size | 80 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Transmittance | 50% |
| Split Ratio | 50/50 |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | Fifty Percent; 50% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Angle Tolerance | +/-3' |
| Size Tolerance | +/-0.0-0.1mm |
| Splitting Ratio | 50:50 |
| Wavelength | 400-700nm |
FAQ
Is custom sizing available?
Yes, customizable options are available for OEM, ODM, and OBM.
What is the surface quality specification?
The surface quality of this beamsplitter is 60/40.
