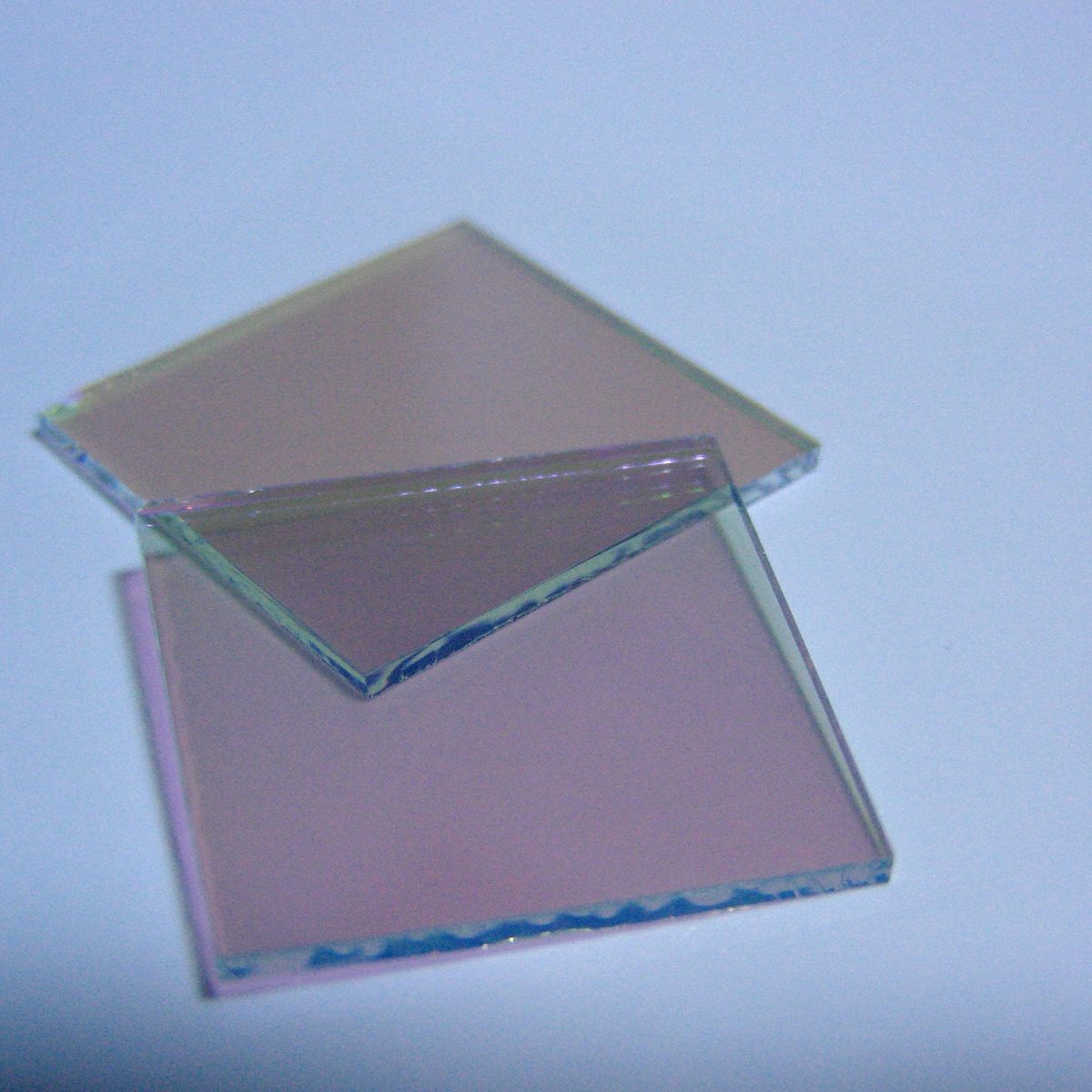

Custom Size BK7 Plate Beamsplitter

Product description

This 60/40 beamsplitter is designed for applications requiring precise light division, making it ideal for laser systems and imaging technologies. Constructed from BK7 glass, it offers excellent optical clarity and durability. With a surface quality of 60/40 and a flatness of 1/4 Lambda, this beamsplitter ensures minimal distortion and high performance in various optical setups. Its customizable options cater to specific project needs, ensuring a reliable solution for R&D and production environments.

Key Features

60/40 split ratio provides balanced light division for optimal performance.
Surface quality of 60/40 ensures minimal distortion in optical applications.
Flatness of 1/4 Lambda enhances imaging clarity and precision.
Dimension tolerance of +0/-0.05mm allows for precise integration into systems.
Customizable options available, supporting OEM and ODM requests.

Specification Summary

Item	Value
Material	BK7
Shape	Plate
Size	Custom
Thickness	0.3 mm
Surface Quality	60/40
Split Ratio	60/40

Full Specifications

Parameter	Value
Transmittance	Fifty Percent; T:R
Customized Support	OEM, ODM, OBM; OEM, ODM
Warranty	1 year
Substrate	K9,BK7,B270,D263T, fused silica
Clear Aperture	Coating cover greater 95% active area
Dimension Tolerance	+0/-0.05mm
Flatness	1/4Lambda

FAQ

Can I get custom sizes for this beamsplitter?

Yes, customizable options are available, supporting OEM and ODM requests.

What is the dimension tolerance for this product?

The dimension tolerance is +0/-0.05mm, ensuring precise fitting in applications.
