1 / 6Beamsplitters

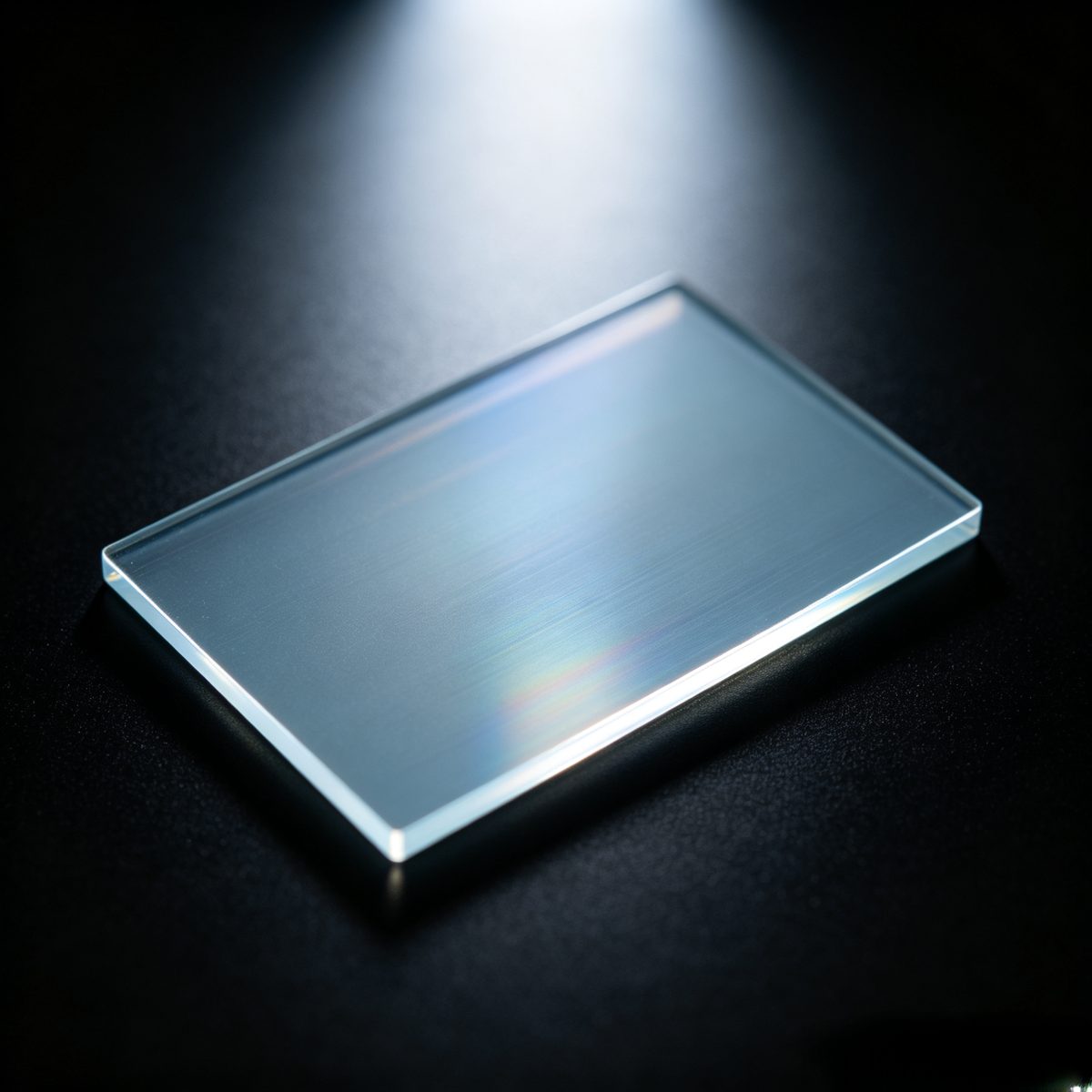

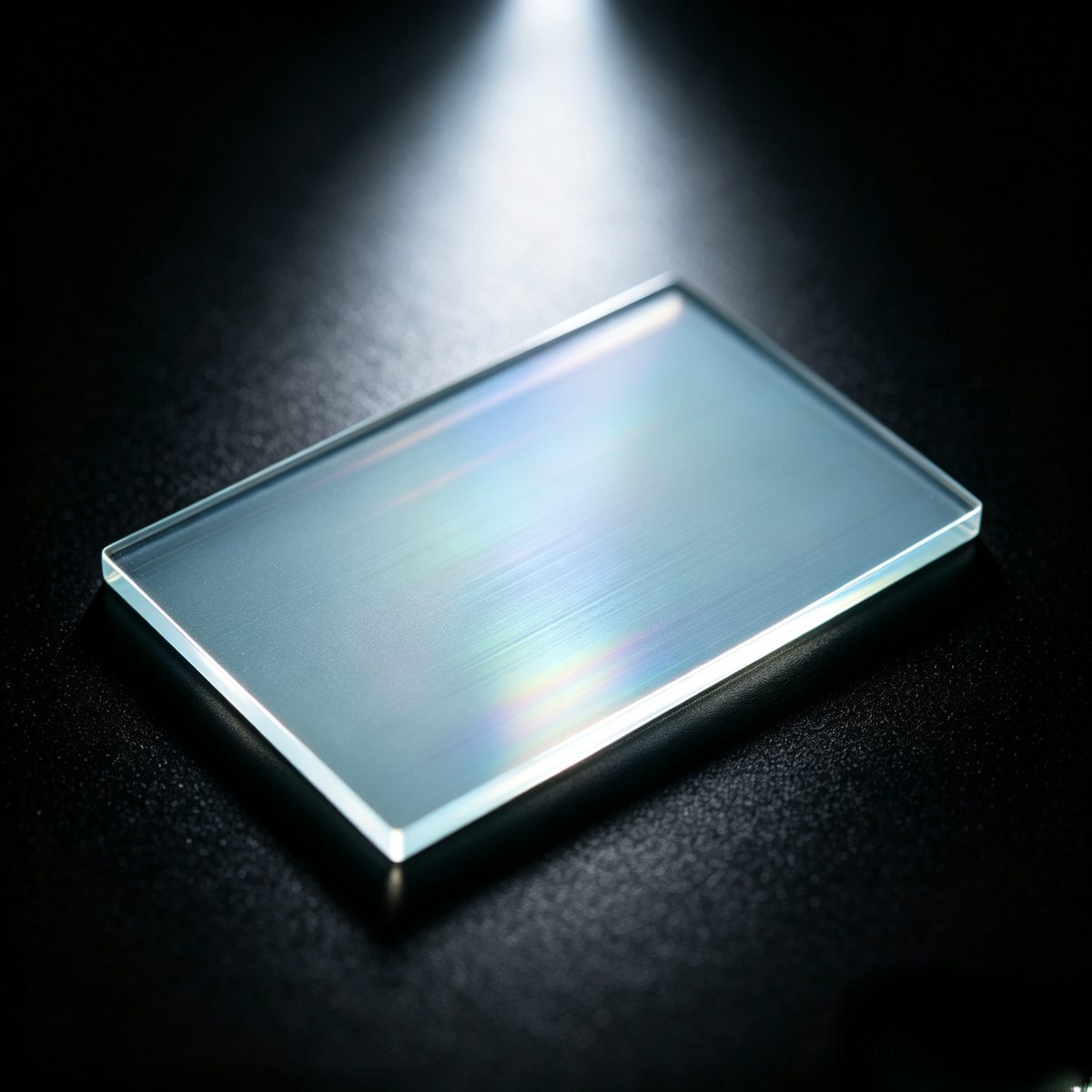

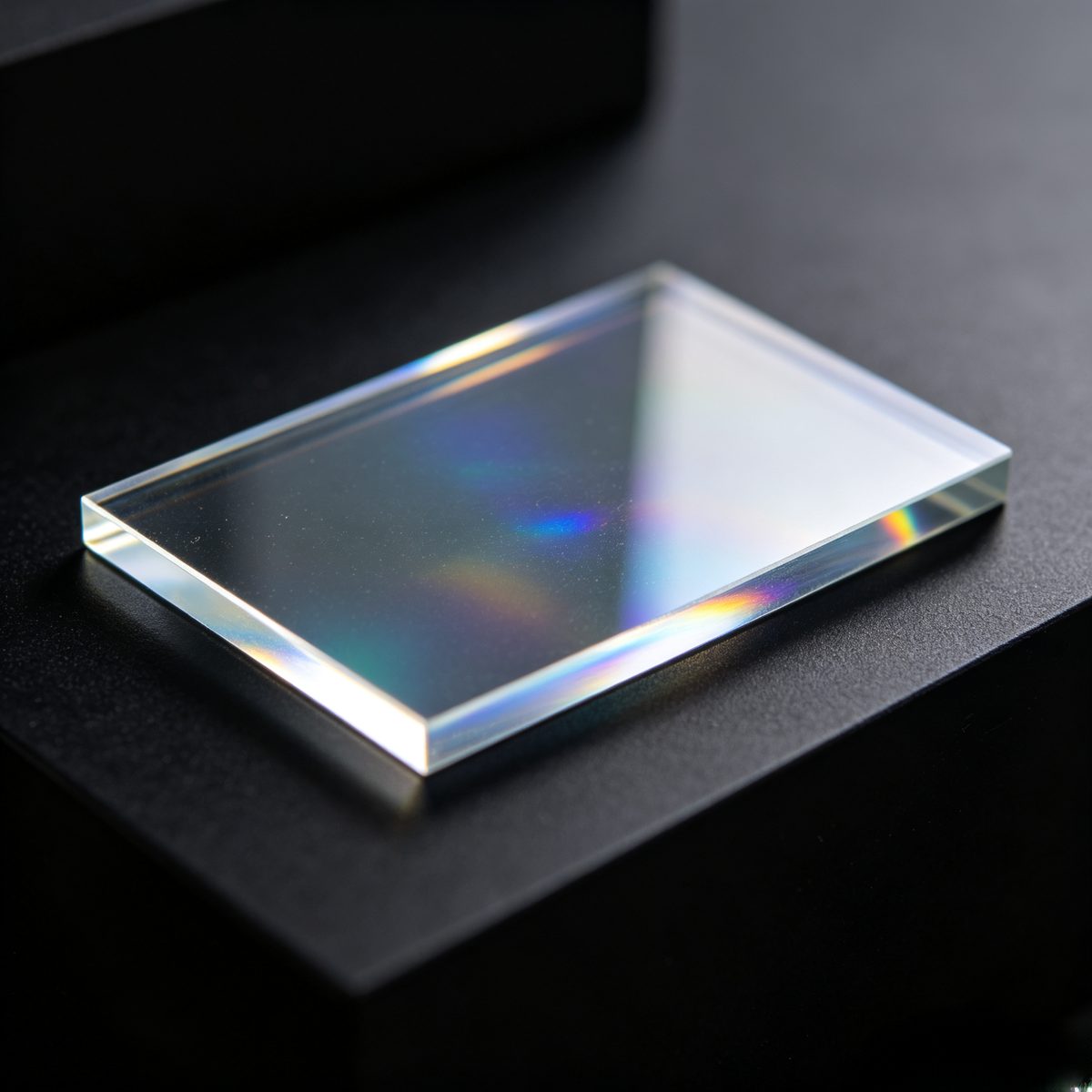

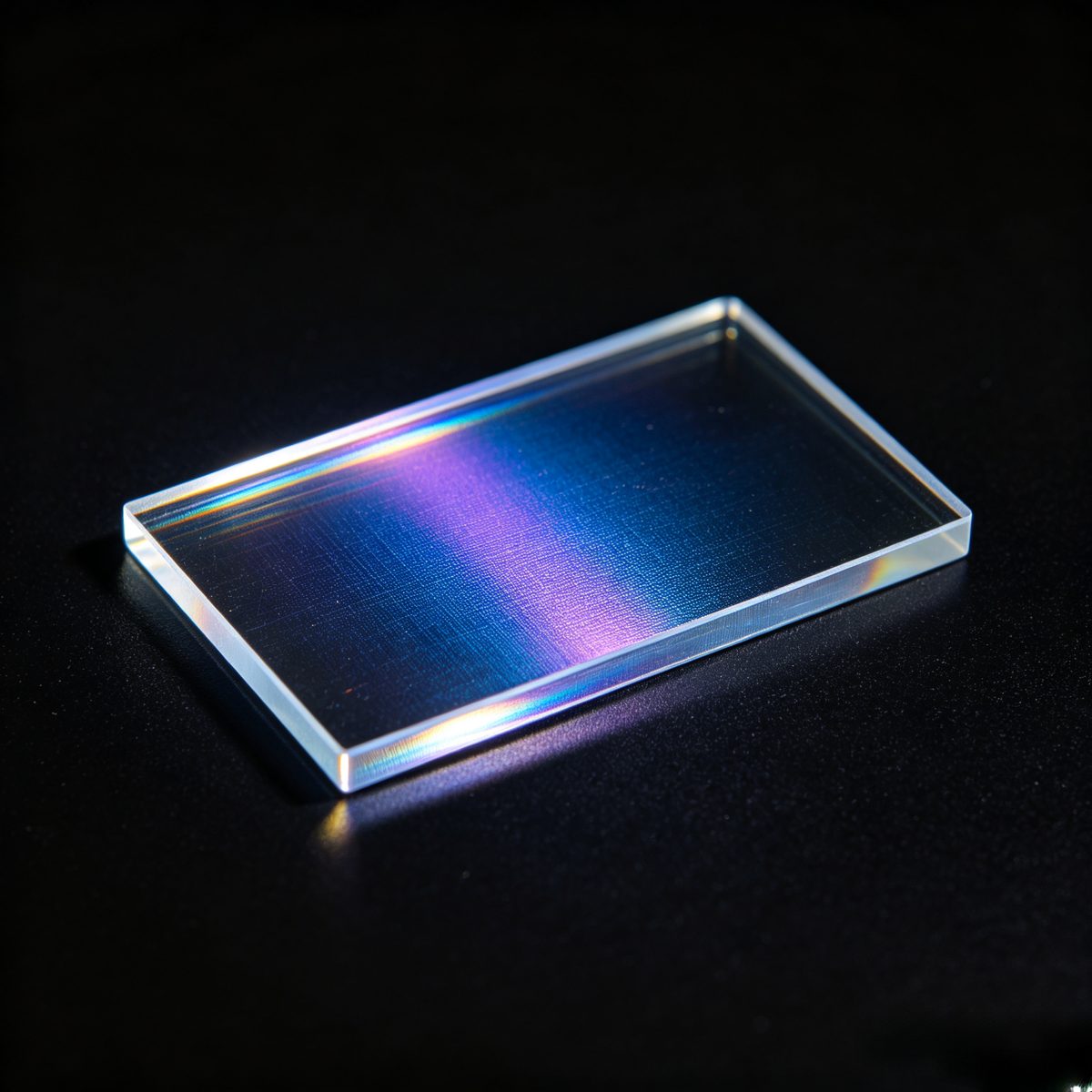

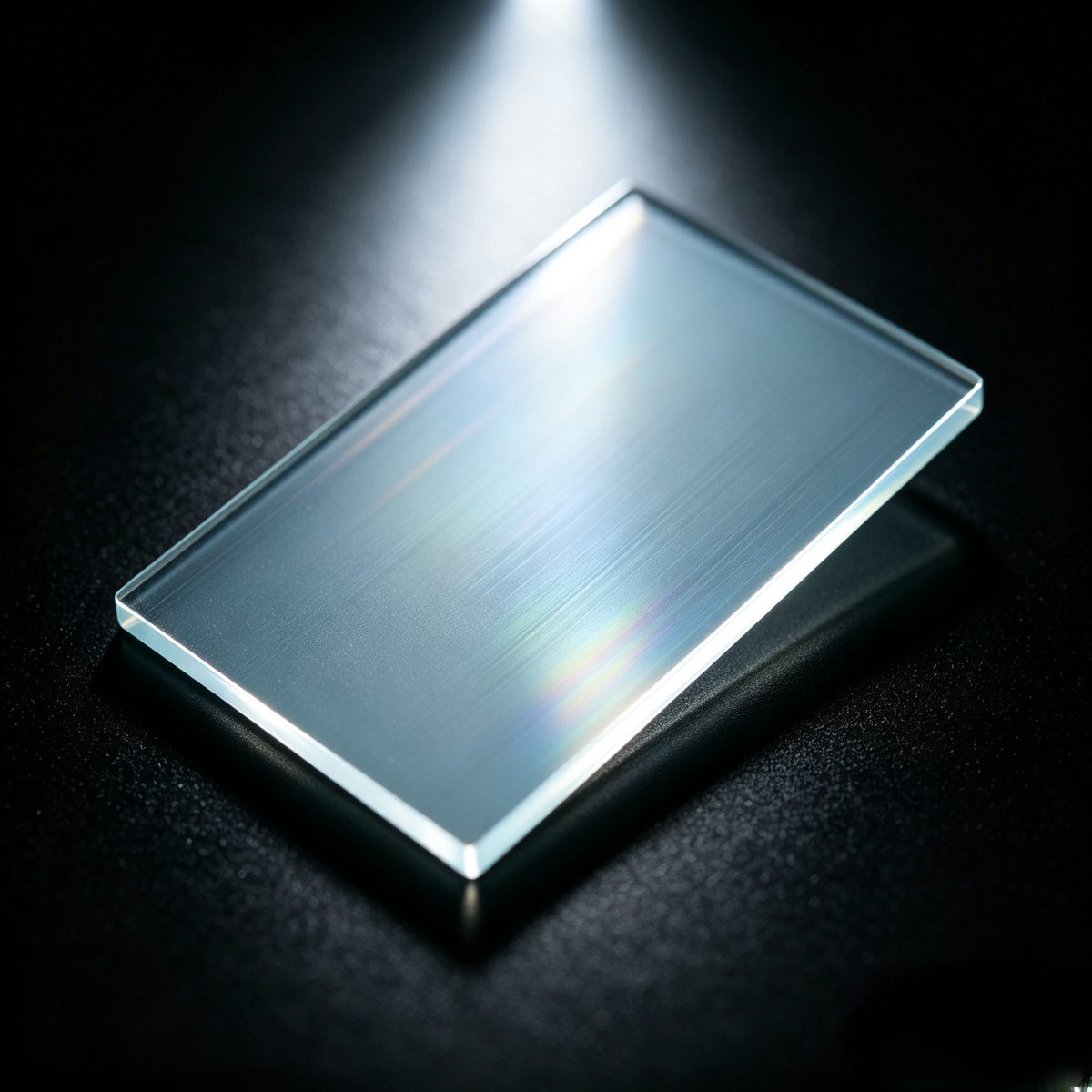

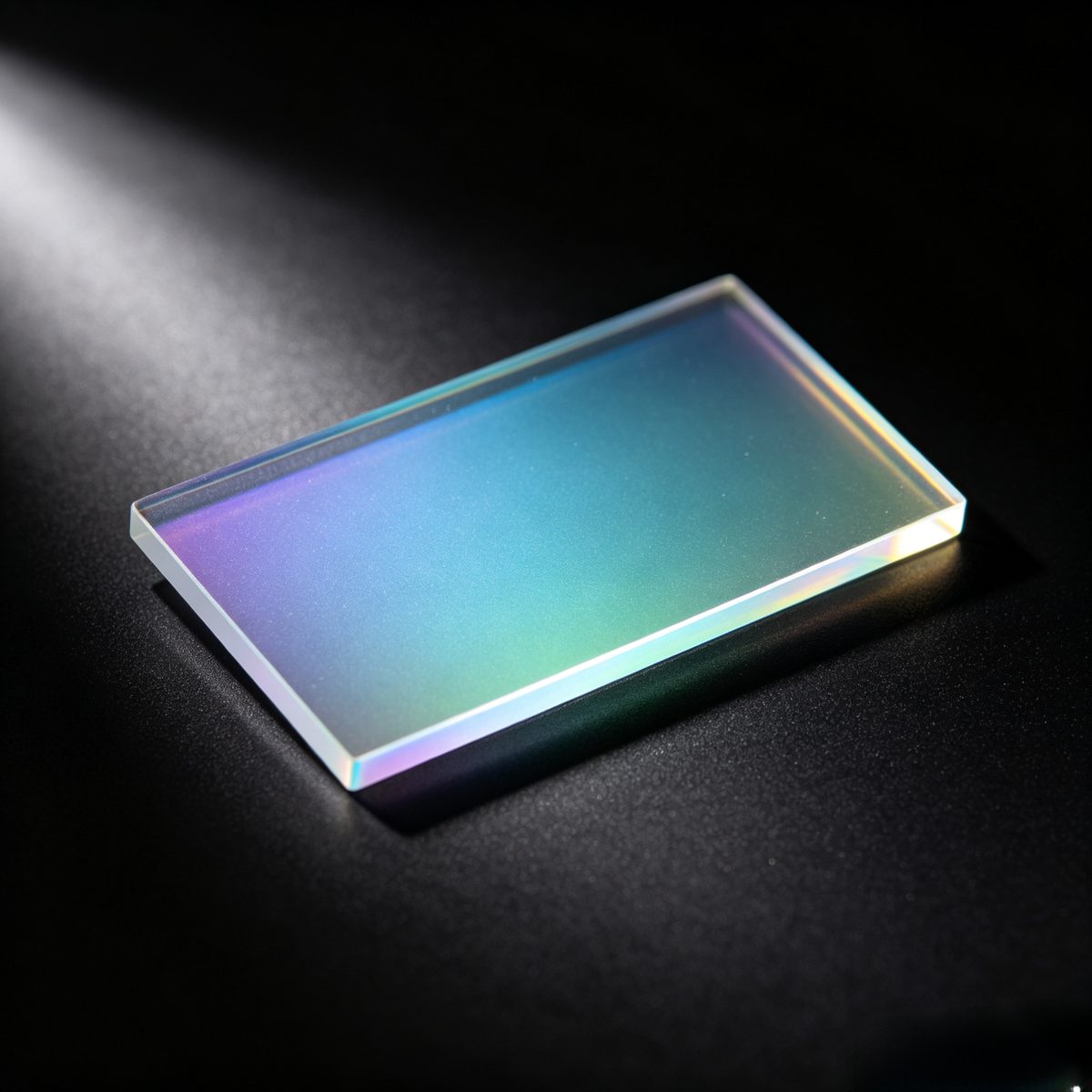

Custom Size BK7 Plate Beamsplitter, AR Coated
BK7 beamsplitter with 50/50 split ratio and AR coating for machine vision, medical, and research applications.
Core attributes
- Material
- BK7
- Shape
- Plate
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 60/40
- Split Ratio
- 50/50
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- BK7
- Shape
- Plate
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 60/40
- Split Ratio
- 50/50
- Coating
- anti-reflective (AR)
Product description
This BK7 beamsplitter is engineered for applications in machine vision, medical imaging, and research. With a 50/50 split ratio and AR coatings, it enhances light transmission while minimizing glare. The beamsplitter’s high surface quality (60/40) and flatness (1/4 per 25mm range) ensure precise optical performance, making it suitable for demanding environments. Its customizable design allows for tailored solutions to fit specific application needs.
Key Features
- 50/50 split ratio for balanced light distribution, enhancing imaging quality.
- AR coating improves transmittance to 95%, optimizing light efficiency.
- Surface quality of 60/40 ensures minimal distortion for accurate results.
- Dimension tolerance of +0/-0.2mm for precise fitting in optical setups.
- Clear aperture greater than 90% maximizes light throughput.
Applications
Machine Vision, Medical, Research
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Plate |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Split Ratio | 50/50 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 95 |
| Customized Support | OEM, ODM, OBM |
| Dimension Tolerance | +0/-0.2mm |
| Flatness | 1/4 per 25mm range |
| Clear Aperture | >90% |
FAQ
Is custom sizing available?
Custom sizing options are available through OEM, ODM, and OBM support.
What is the tolerance for dimensions?
The dimension tolerance is +0/-0.2mm, ensuring a precise fit.
