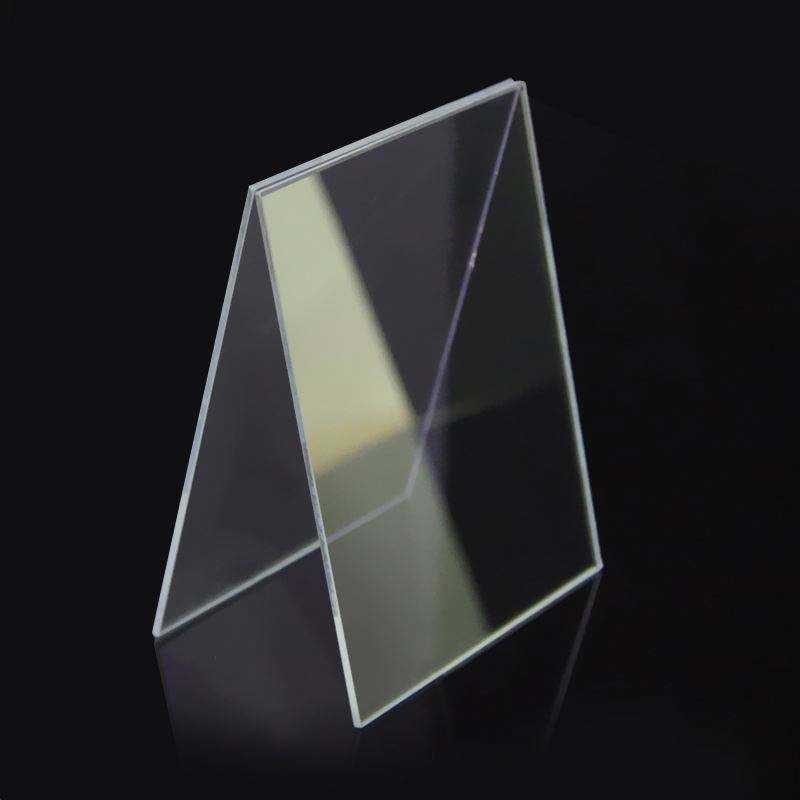

Custom Size BK7 Plate Beamsplitter, HR Coated

Product description

This BK7 beam splitter plate is designed for applications requiring precise light division across a broad range of wavelengths, specifically 400-700 nm and 0.7-1.7 μm. With a split ratio of 60/40, it provides optimal performance for optical equipment. Its high surface quality (60/40) ensures minimal distortion, making it suitable for demanding R&D and production environments. The durability of BK7 material guarantees consistent performance, addressing the needs of engineers in various fields.

Key Features

Split ratio of 60/40 for effective light division, enhancing optical system performance.
Surface quality of 60/40 ensures minimal distortion, crucial for accurate measurements.
Clear aperture of 90% maximizes light transmission, improving overall efficiency.
Customizable options available, including OEM and ODM support for tailored solutions.
Low minimum order quantity of 1 piece, accommodating prototyping and small batch needs.

Specification Summary

Item	Value
Material	BK7
Shape	Plate
Size	Custom
Thickness	Custom
Surface Quality	60/40
Split Ratio	60/40
Coating	high-reflective (HR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)
MOQ	1 Piece

Full Specifications

Parameter	Value
Prism Type	beam spliter plate glass
Customized Support	OEM, ODM
Warranty	3 Years
Clear Aperture	90%
Materail	BK7 /K9 QUARTZ/ SAPPHIRE
Diameter Tolerance	0/-0.05mm
Type	Optical Lens

FAQ

What are the customization options available?

Customization options include OEM and ODM support to meet specific application requirements.

What is the minimum order quantity?

The minimum order quantity is 1 piece, allowing for prototyping and small orders.
