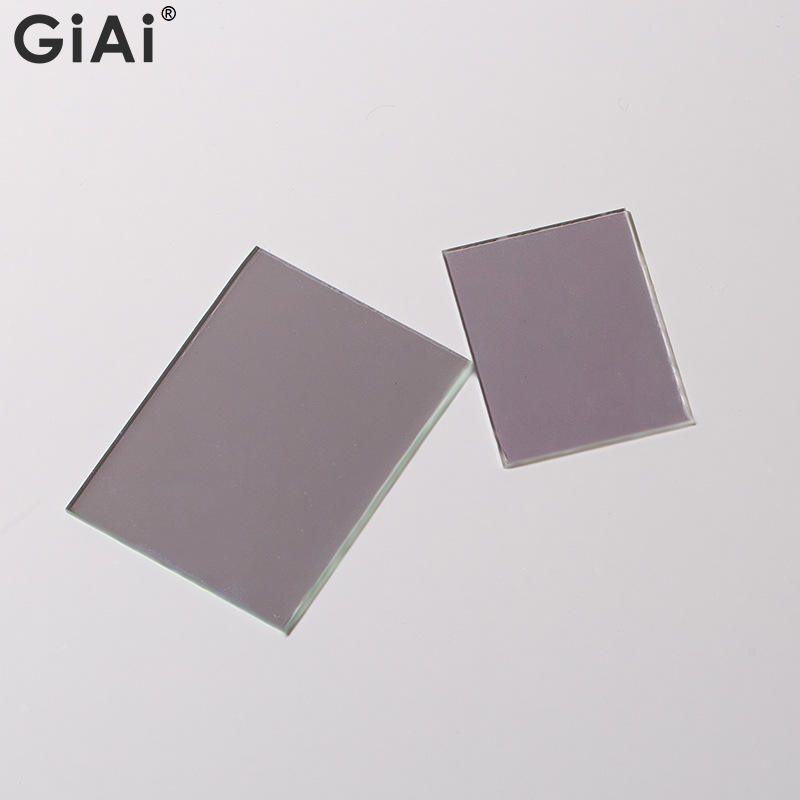

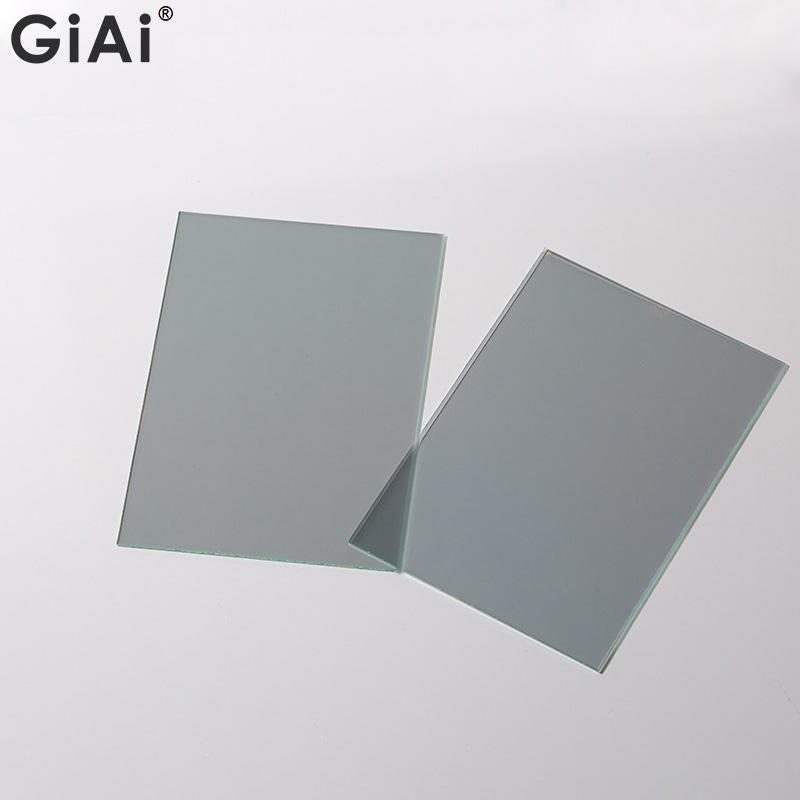

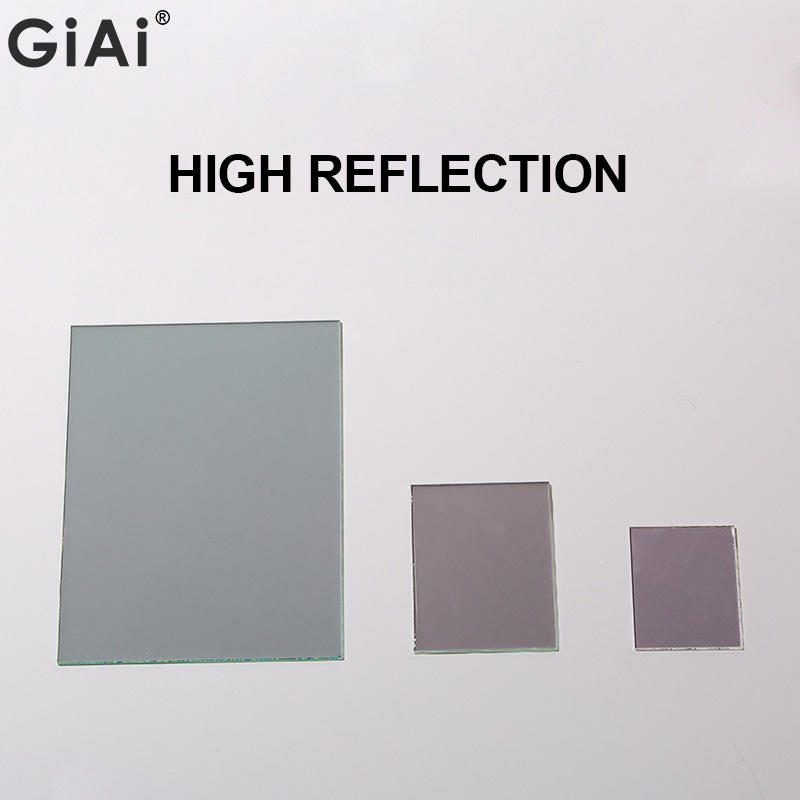

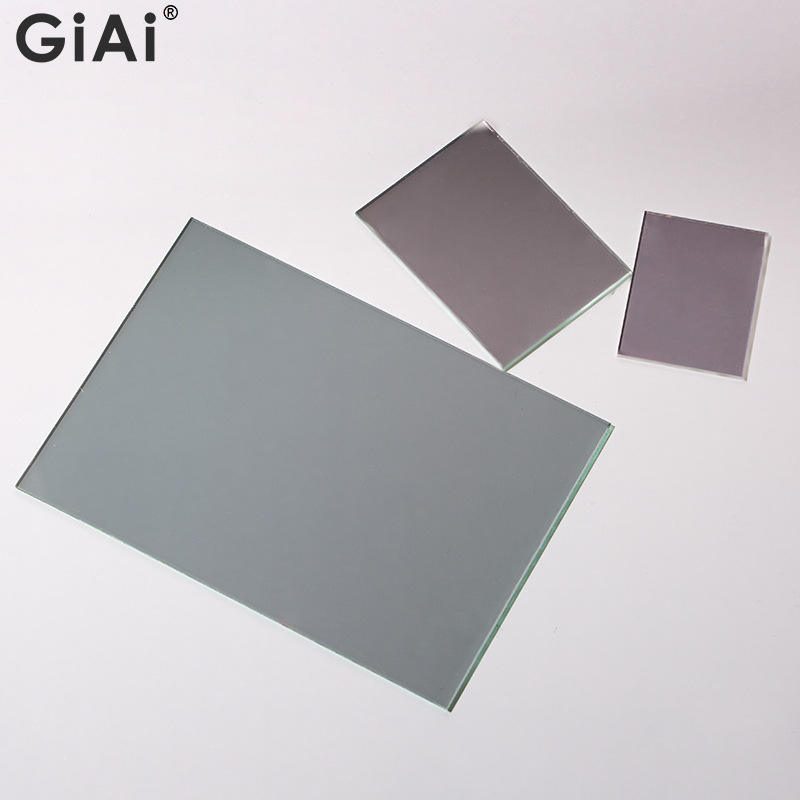

Custom Size BK7 Plate Beamsplitter
BK7 plate beamsplitter with 60/40 split ratio and 50% transmittance for versatile optical applications.
Core attributes
- Material
- BK7
- Shape
- Plate
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 50%
- Split Ratio
- 60/40
- Coating
- partial-reflective
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- BK7
- Shape
- Plate
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 50%
- Split Ratio
- 60/40
- Coating
- partial-reflective
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description

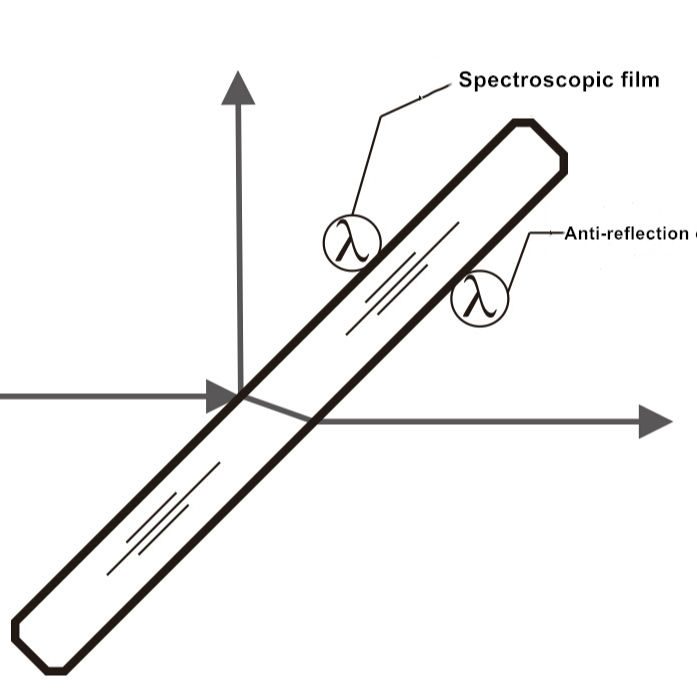

This BK7 plate beamsplitter is designed to efficiently split light across multiple wavelength bands, including 400-700 nm and 0.7-1.7 μm. With a split ratio of 60/40 and a transmittance of 50%, it is ideal for applications in laser systems, machine vision, and biomedical imaging. The partial-reflective coating ensures optimal performance in various optical setups, making it a versatile choice for R&D and production environments.
Key Features
- Transmittance of 50% ensures balanced light splitting for effective optical performance.
- Split ratio of 60/40 enables precise control over light paths in complex systems.
- Supports a wide range of wavelengths (<400 nm, 400-700 nm, 0.7-1.7 μm) for diverse applications.
- Customizable options available through OEM/ODM support for tailored solutions.
- Clear aperture covers greater than 95% of the active area for maximum light utilization.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Plate |
| Size | Custom |
| Thickness | Custom |
| Transmittance | 50% |
| Split Ratio | 60/40 |
| Coating | partial-reflective |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | Fifty Percent; 50% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Substrate | K9,BK7,B270,D263T, fused silica |
| Clear Aperture | Coating cover greater 95% active area |
FAQ
Can I get custom sizes for this beamsplitter?
Custom sizes are available through OEM/ODM support.
What is the minimum order quantity (MOQ)?
The minimum order quantity (MOQ) is not specified.
