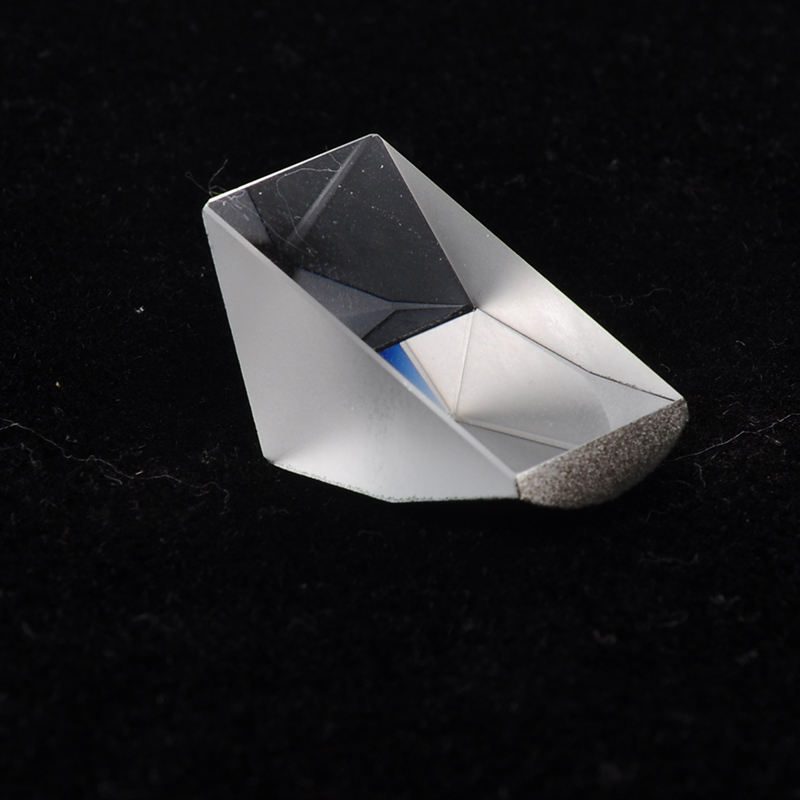

10 mm BK7 Porro Optical Prism
Explore our optical Porro prism with customizable sizes and high surface quality for precise optical applications.
Core attributes
- Material
- BK7
- Shape
- Porro
- Size
- 10 mm
- Thickness
- Custom
- Surface Quality
- 60/40
Product facts
Key attributes
- Material
- BK7
- Shape
- Porro
- Size
- 10 mm
- Thickness
- Custom
- Surface Quality
- 60/40
Product description
The optical Porro prism is designed to provide high-quality image inversion and reflection, making it ideal for applications in optical systems where space is limited. With dimensions ranging from 10mm to 150mm and a surface quality of 60/40, this prism ensures reliable performance in various setups. Its compatibility with OEM and ODM services allows for tailored solutions to meet specific project requirements.
Key Features
- Dimensions from 10mm to 150mm for versatile application fit.
- Surface quality of 60/40 ensures effective optical performance.
- Size tolerance of +/-0.01mm supports precise integration.
- OEM and ODM customization available for unique project needs.
- Bevel of 0.1-0.3mm at 45 degrees enhances optical alignment.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Porro |
| Size | 10 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Right Angle Prism; Optical Porro prism |
| Customized Support | OEM, ODM |
| Warranty | 3 months |
| Name | optical glass prism |
| Dimension | 10-150mm |
| Bevel | 0.1-0.3mm X45 Degree |
| Size Tolerance | +/-0.01mm |
FAQ
Can I get custom sizes?
Yes, OEM and ODM services are available for customized sizing.
What is the size tolerance?
The size tolerance for this prism is +/-0.01mm.
