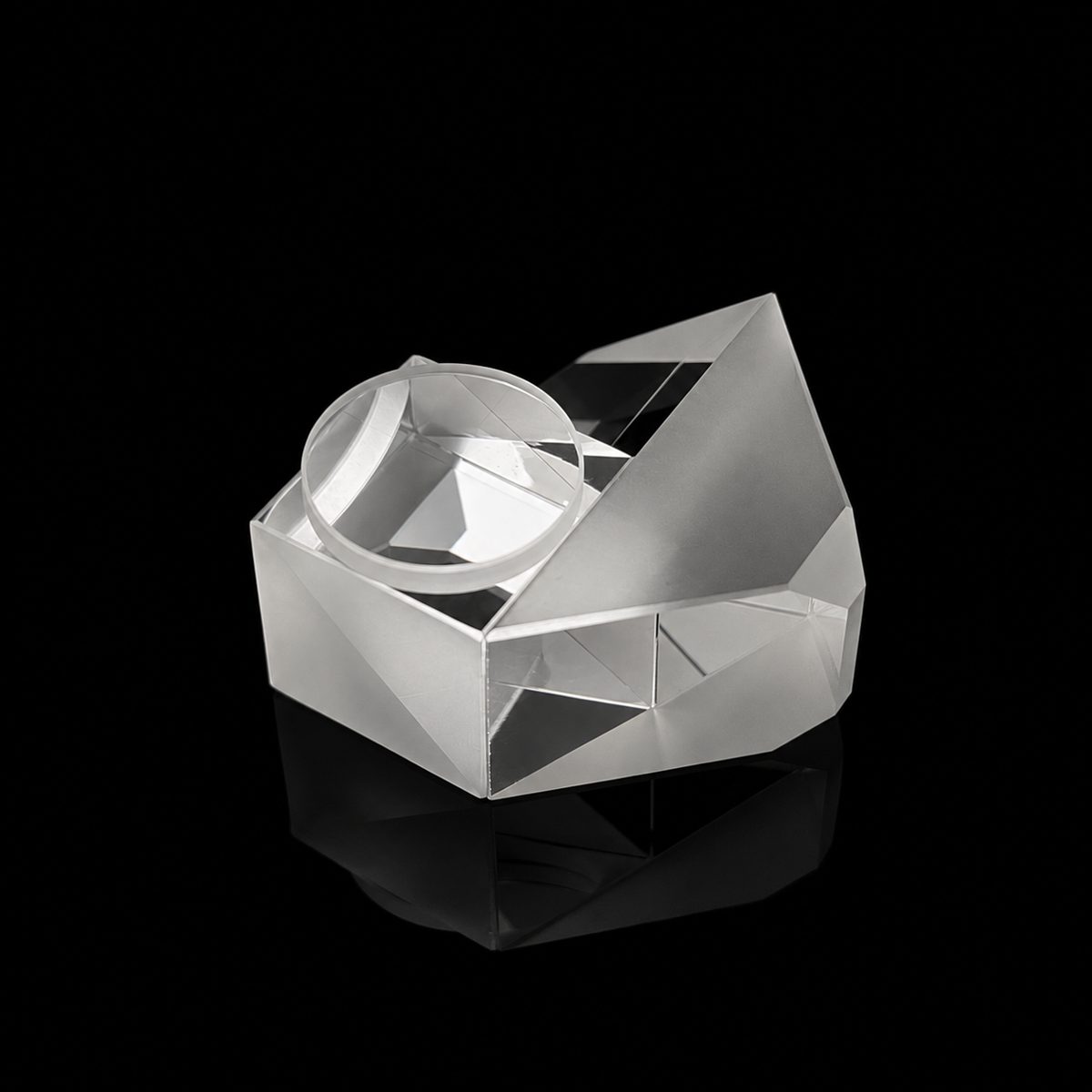

Custom Size BK7 Porro Optical Prism, AR Coated
Explore Porro Prisms for laser, surveying, and astronomy applications with high precision and customizable options.
Core attributes
- Material
- BK7
- Shape
- Porro
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 80/50
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- BK7
- Shape
- Porro
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 80/50
- Coating
- anti-reflective (AR)
Product description
The Porro Prism is designed for applications in laser technology, surveying, and astronomy, providing exceptional stability and high precision in image erecting. With an angle tolerance of <±3 arc min, this prism ensures that output light remains parallel to the incident beam, making it ideal for precise ranging and positioning tasks. Its robust construction guarantees consistent optical performance even under vibration and thermal drift, meeting the demands of various industries.
Key Features
- Angle tolerance of <±3 arc min ensures high precision in optical paths.
- Surface quality rating of 80/50 supports excellent wavefront integrity.
- Compatible with AR coatings for enhanced transmittance.
- Custom dimension tolerance of 0.05mm allows for tailored solutions.
- Suitable for diverse applications including laser rangefinders and surveying.
Applications
Laser, Surveying, Astronomy
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Porro |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 80/50 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | porro prism |
| Customized Support | OEM, ODM, OBM |
| Warranty | None |
| Type | optical triangular prism glass |
| Angle Tolerance | <±3 arc min |
| Clear Aperture | >Central 90% |
| Key Words | Corner Cube Prism |
| Dimension Tolerance | 0.05mm/customize |
FAQ
Is custom sizing available?
Yes, custom dimension tolerance of 0.05mm is available.
What is the angle tolerance for this prism?
The angle tolerance is <±3 arc min.
